Rocker Panel Molding Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

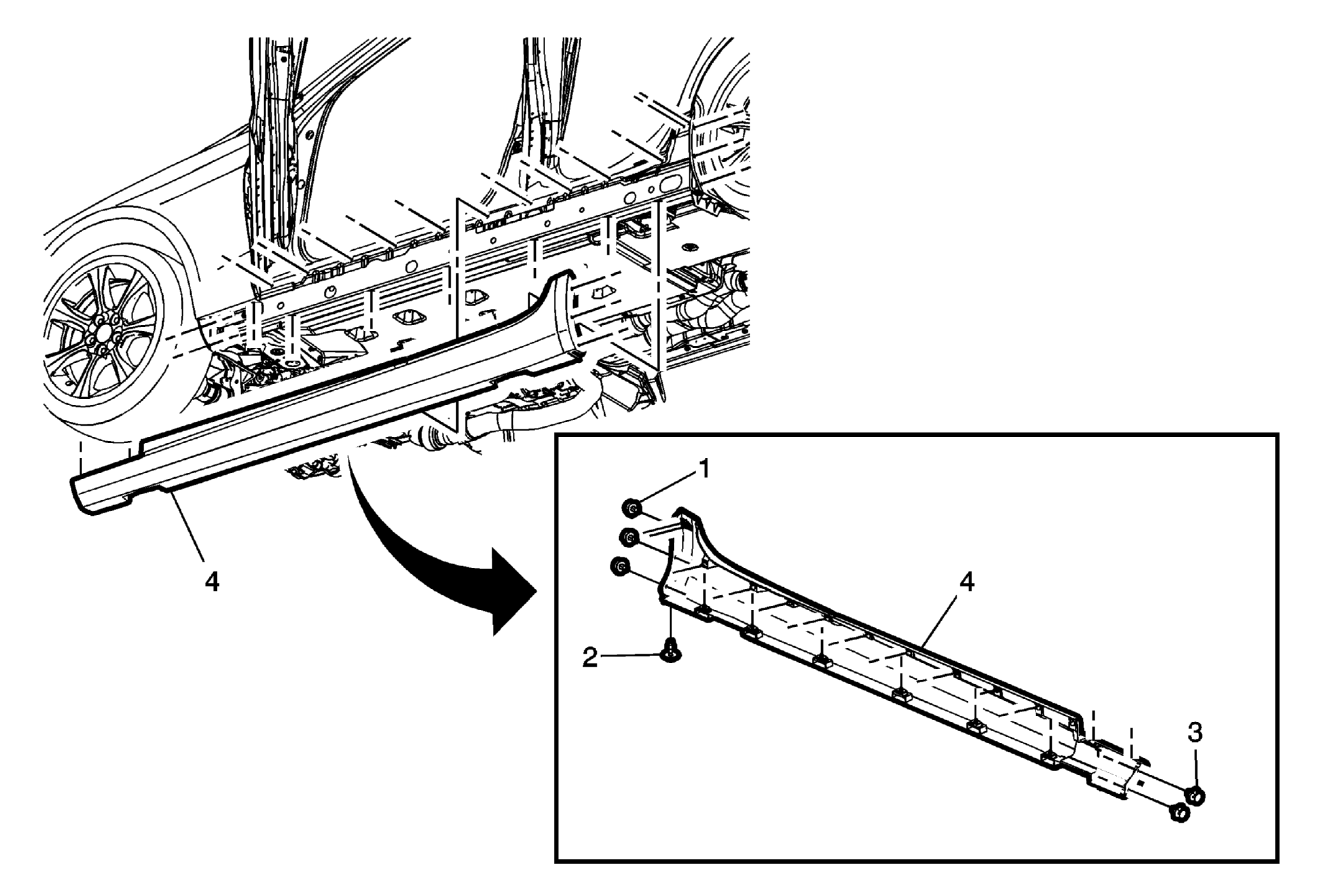

Fig 1: Rocker Panel Molding (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open both front and rear side doors.
1	Rear Wheelhouse Panel Liner Retainer (Qty: 3)
2	Underbody Rear Air Deflector Screw CAUTION: Refer to Fastener Caution .
3	Front Wheelhouse Panel Retainer (Qty: 2)
4	Rocker Panel Molding Procedure Release the rocker panel molding (2 retainers) from the front fender. From the bottom edge firmly pull down the rocker panel molding (5 retainers) from the rocker outer panel. From the top edge firmly pull out the rocker panel molding (12 retainers) from the body side outer panel and remove from the vehicle.
