Rear Compartment Lid Engine Nameplate Replacement (2.0T Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

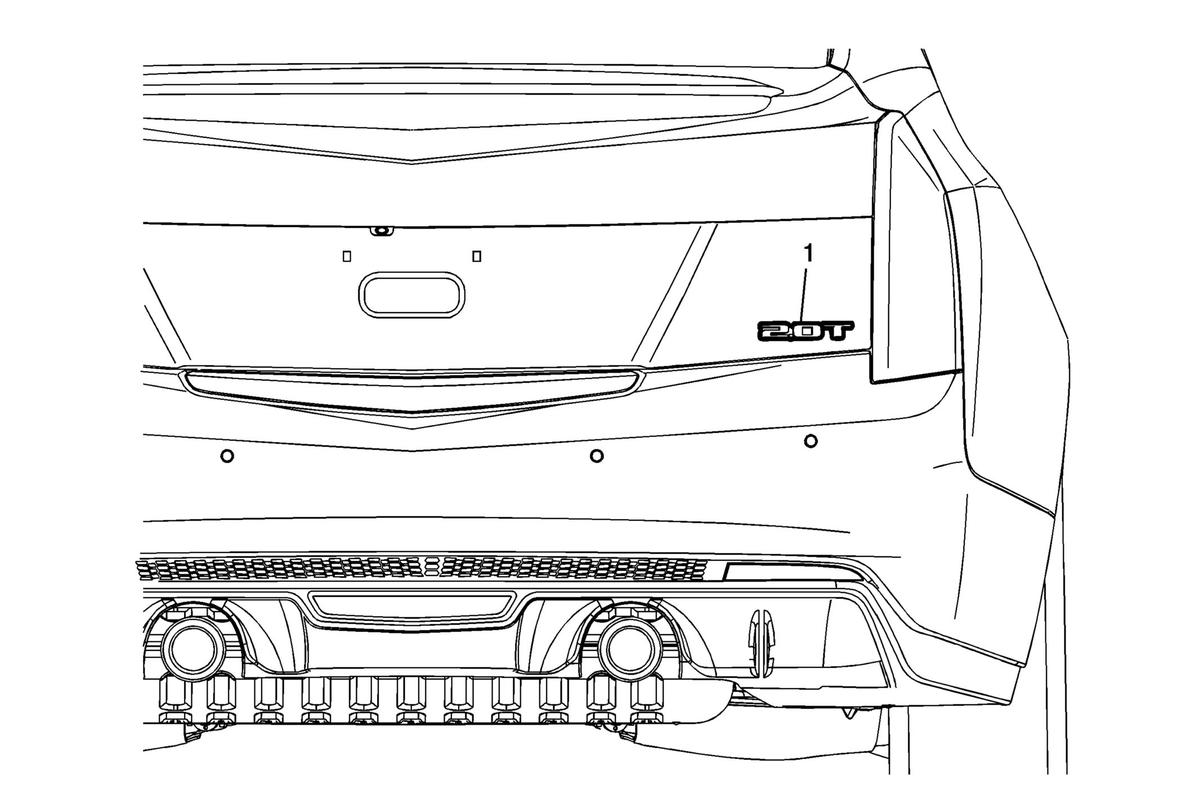

Fig 1: Rear Compartment Lid Engine Nameplate (2.0T)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Lid Engine Nameplate (2.0T) CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a heat gun or equivalent to remove the old emblem/nameplate. Clean all adhesive from the rear compartment lid and wipe the surface dry with a clean lint-free towel prior to installing the new emblem/nameplate. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Using the palm of the hand, wet out the emblem/name plate to the rear compartment lid to ensure full adhesion of the emblem/nameplate is made.

Callout

Component Name

Rear Compartment Lid Engine Nameplate (2.0T)

CAUTION:

Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a heat gun or equivalent to remove the old emblem/nameplate.
Clean all adhesive from the rear compartment lid and wipe the surface dry with a clean lint-free towel prior to installing the new emblem/nameplate.
When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Using the palm of the hand, wet out the emblem/name plate to the rear compartment lid to ensure full adhesion of the emblem/nameplate is made.
