Rear Bumper Fascia Tow Hook Access Hole Cover Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

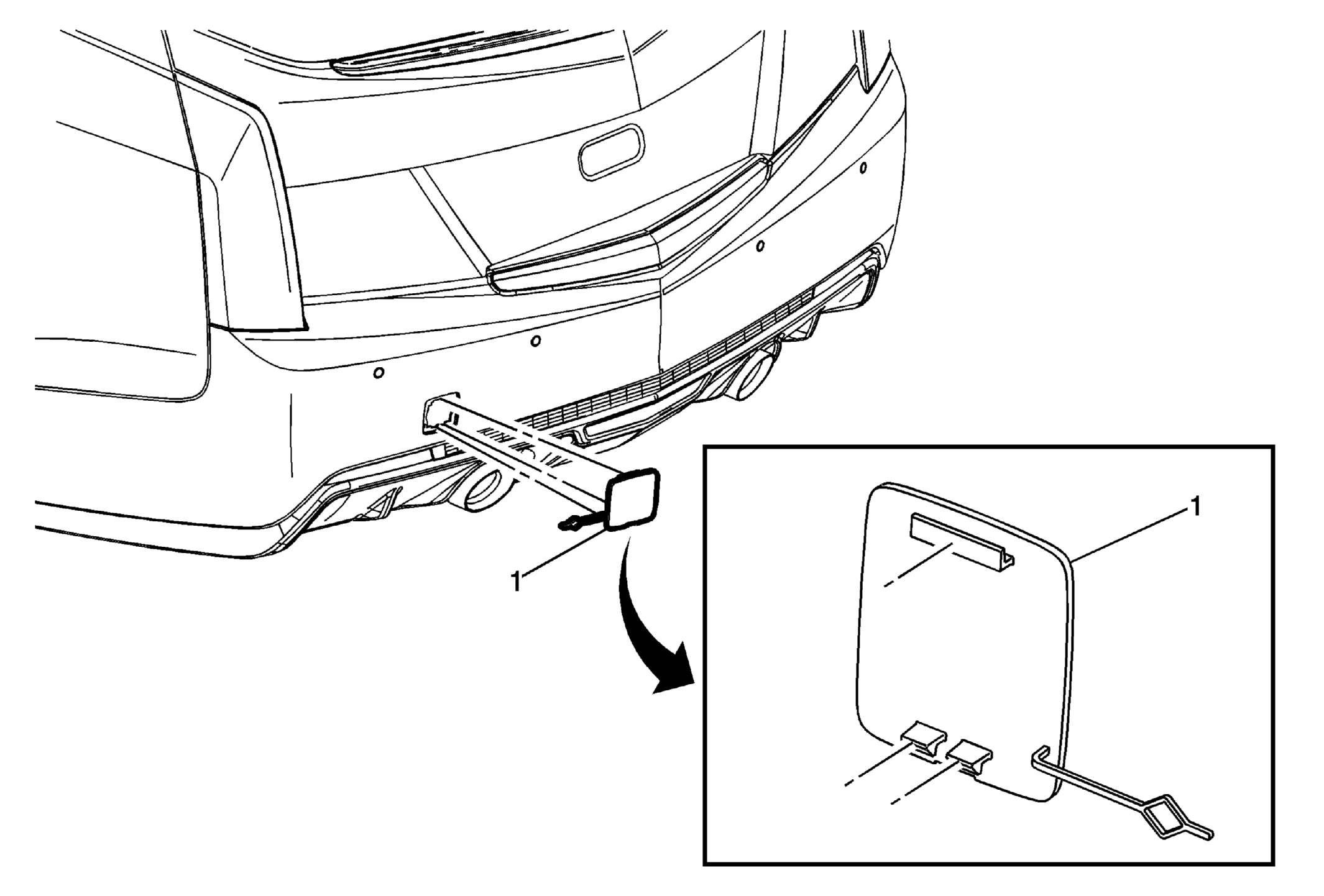

Fig 1: Rear Bumper Fascia Tow Hook Access Hole Cover (Sedan)
GM2808485Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Bumper Fascia Tow Hook Access Hole Cover

Procedure

  1. Using a small plastic flat-bladed tool release the bottom locking tabs and pull down from the rear bumper fascia.
  2. Using needle nose pliers release the v-notch hook from the retainer hole in the rear bumper fascia and remove.
