Rear Bumper Fascia Tow Hook Access Hole Cover Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

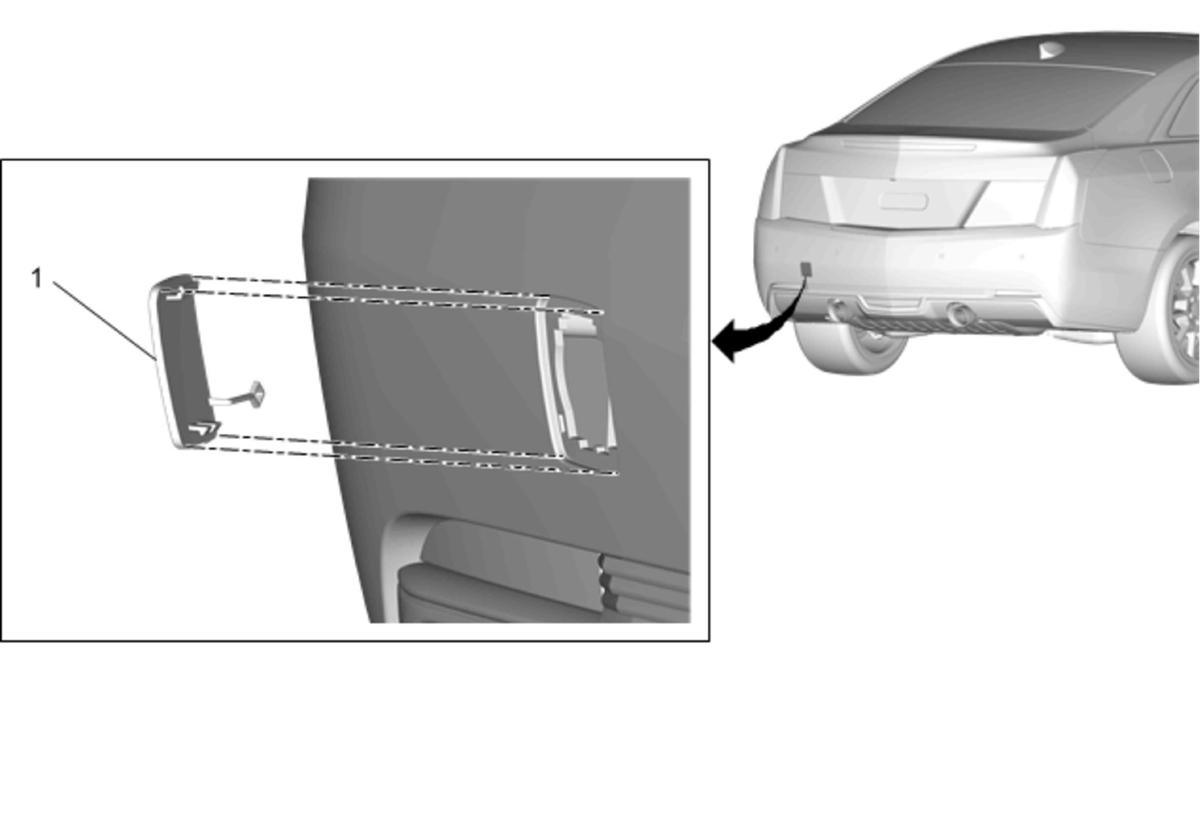

| Callout |
Component Name |
| 1 |
Rear Bumper Fascia Tow Hook Access Hole Cover Procedure
- Using an appropriate tool, release the bottom locking tabs and pull down from the rear bumper fascia.
- Using needle nose pliers release the v-notch hook from the retainer hole in the rear bumper fascia and remove.
|
