Quarter Panel Tail Lamp Upper Molding Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

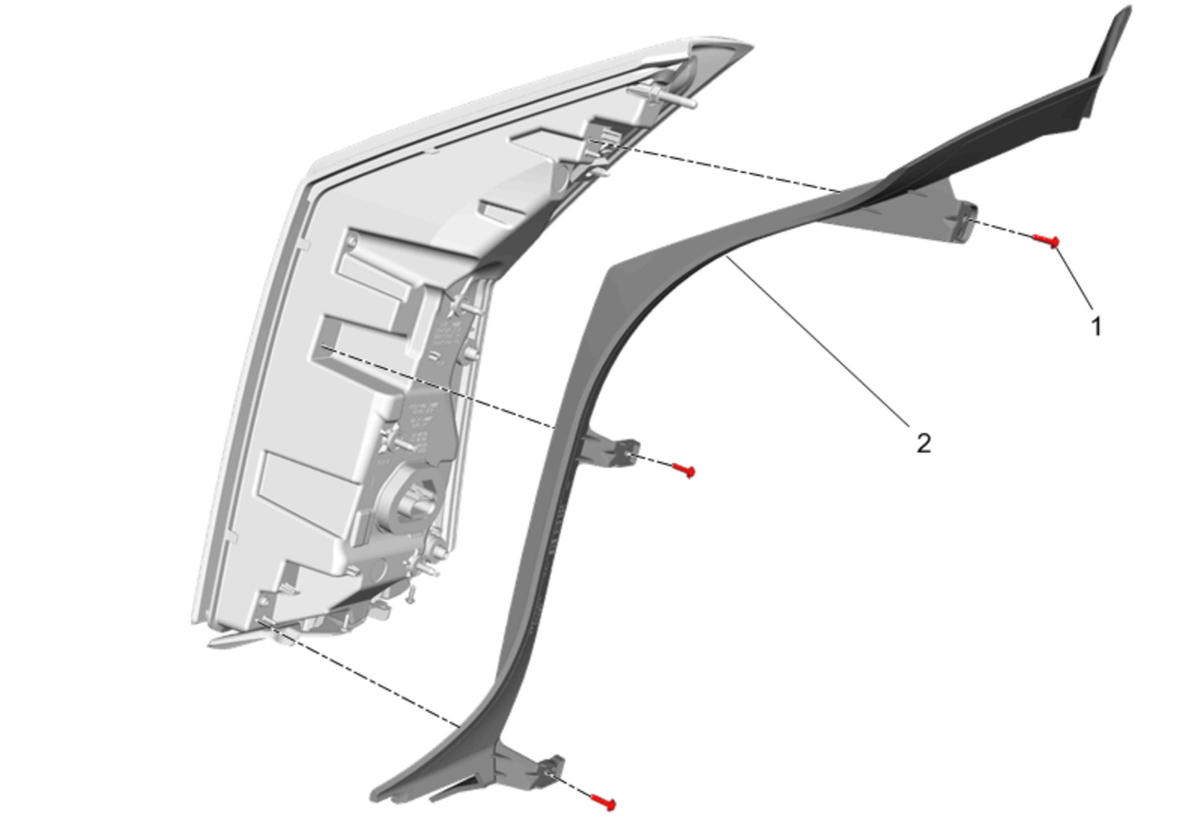

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Body Structure Stop Lamp Replacement (Coupe) |
|
| 1 | Quarter Panel Tail Lamp Upper Molding Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Quarter Panel Tail Lamp Upper Molding |
