Front Upper Grille Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

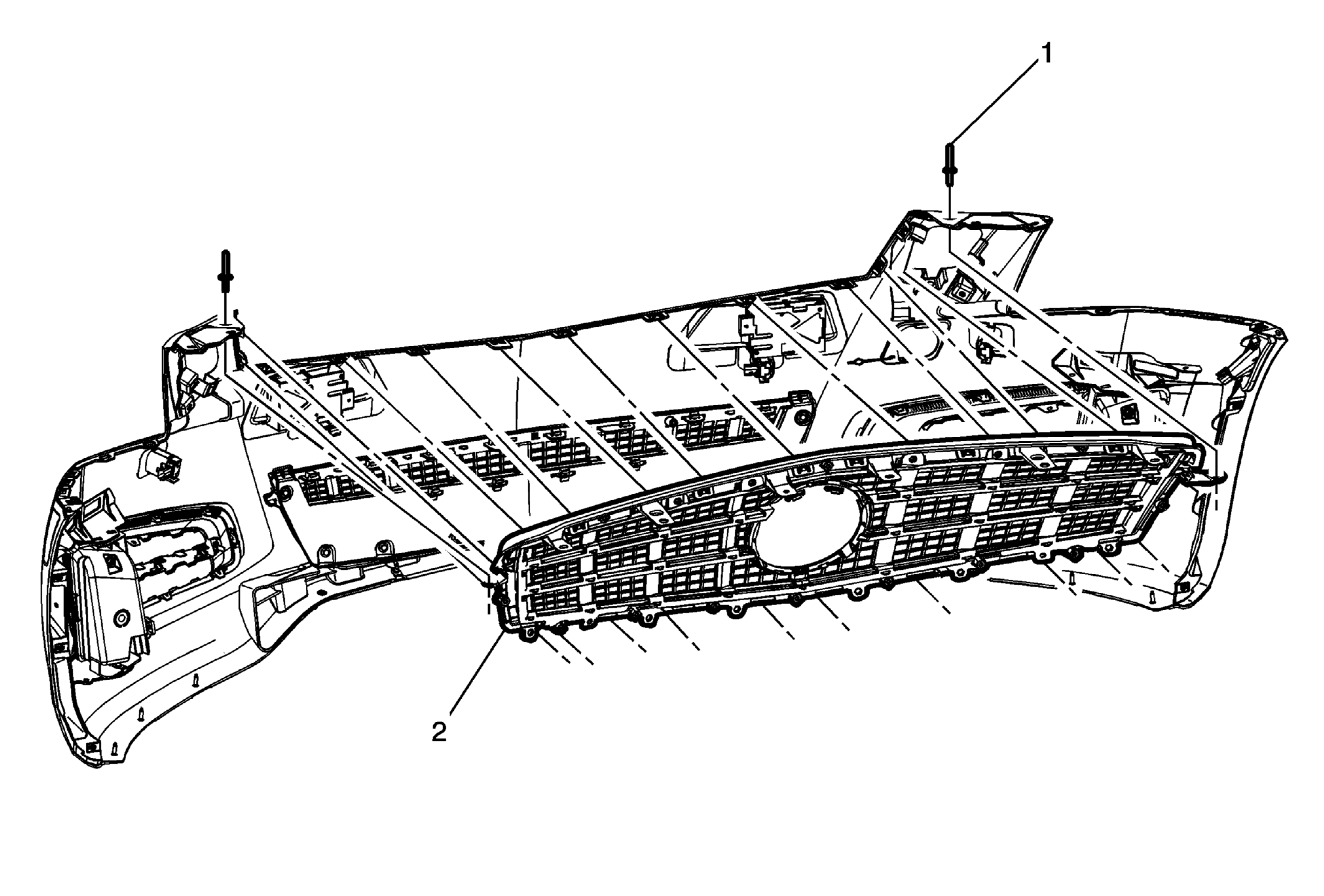

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radiator grille water deflector upper. Refer to Radiator Grille Water Deflector Replacement - Upper . |
|
| 1 | Front Bumper Fascia Support Rivet (Qty: 2)
WARNING:
Refer to Eye Protection Warning .
CAUTION:
Refer to Fastener Caution . |
| 2 | Radiator Upper Grille Procedure Release the 12 locking tabs from the radiator upper grille and pull from the front bumper fascia. |
