Front Side Door Opening Frame Reveal Molding Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

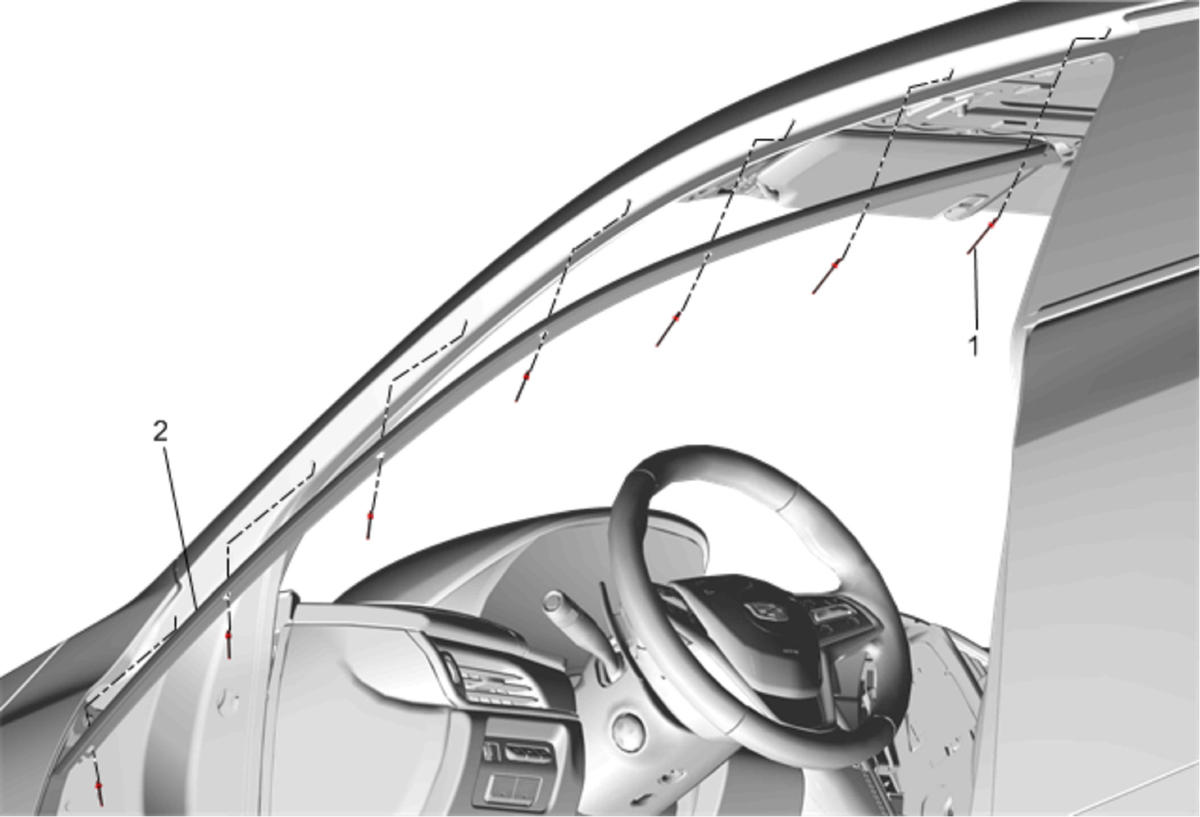

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door weatherstrip-body side molding. Refer to Front Side Door Weatherstrip Replacement - Body Side (Sedan)Front Side Door Weatherstrip Replacement - Body Side (Coupe) . |
|
| 1 | Rivet (Qty: 7)
WARNING:
Eye protection must be worn when drilling rivets to reduce the chance of personal injury. Procedure Using a twist type drill, remove the rivets. |
| 2 | Front Side Door Opening Frame Reveal Molding Procedure Slide molding forward to remove from rear opening reveal molding. |
