Front Grille Emblem/Nameplate Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

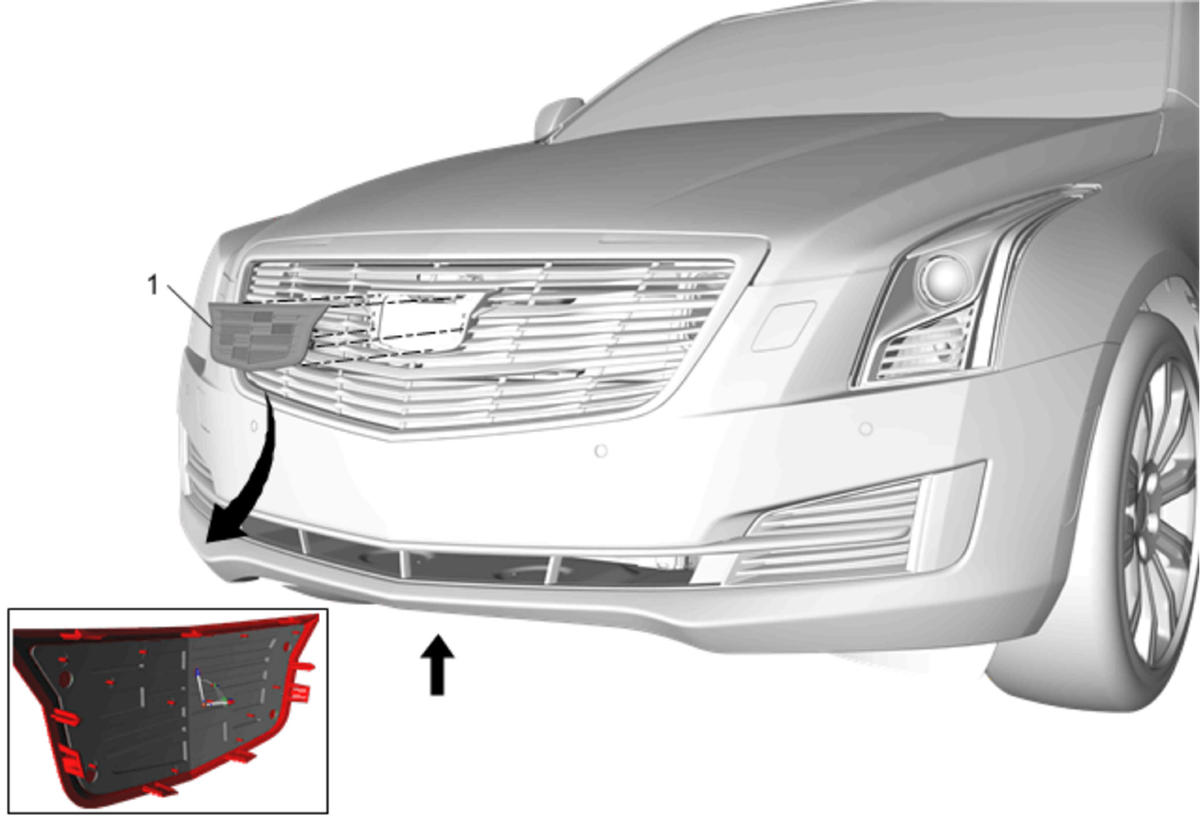

Fig 1: Front Grille Emblem/Nameplate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Air Deflector Replacement
1	Front Grille Emblem Procedure Push the lower radiator air baffle up out of the way (arrow). With a plastic trim tool reach up to the emblem and release the retaining tabs and separate the emblem from the grille. Align locator pins on emblem to associated features in the grill mesh. Check that all snaps are engaged, emblem is not gapping to grille surface.

Callout

Component Name

Preliminary Procedure
Front Air Deflector Replacement

Front Grille Emblem

Procedure

Push the lower radiator air baffle up out of the way (arrow).
With a plastic trim tool reach up to the emblem and release the retaining tabs and separate the emblem from the grille.
Align locator pins on emblem to associated features in the grill mesh.
Check that all snaps are engaged, emblem is not gapping to grille surface.
