Front Grille Emblem/Nameplate Replacement (With Adaptive Cruise Control Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

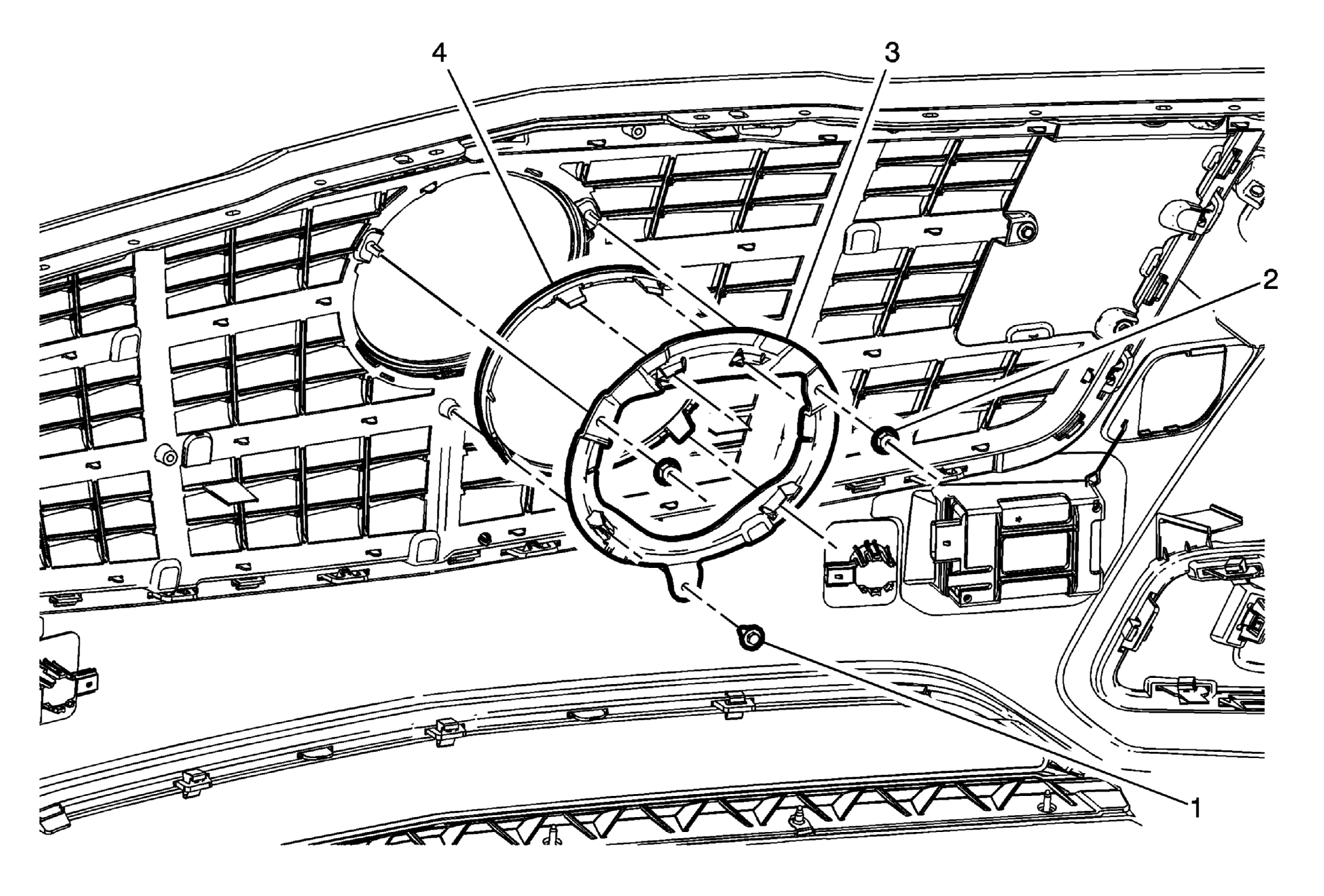

Fig 1: Radiator Grille Emblem/Nameplate (With Adaptive Cruise Control Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .
1	Emblem Adapter Plate Bolt CAUTION: Refer to Fastener Caution .
2	Emblem Adapter Plate Nut (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Emblem Adapter Plate
4	Front Grille Emblem Procedure With a suitable flat bladed tool release the 4 retaining tabs and separate from the emblem adapter plate.
