Front Grille Emblem/Nameplate Replacement (ATS-V)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

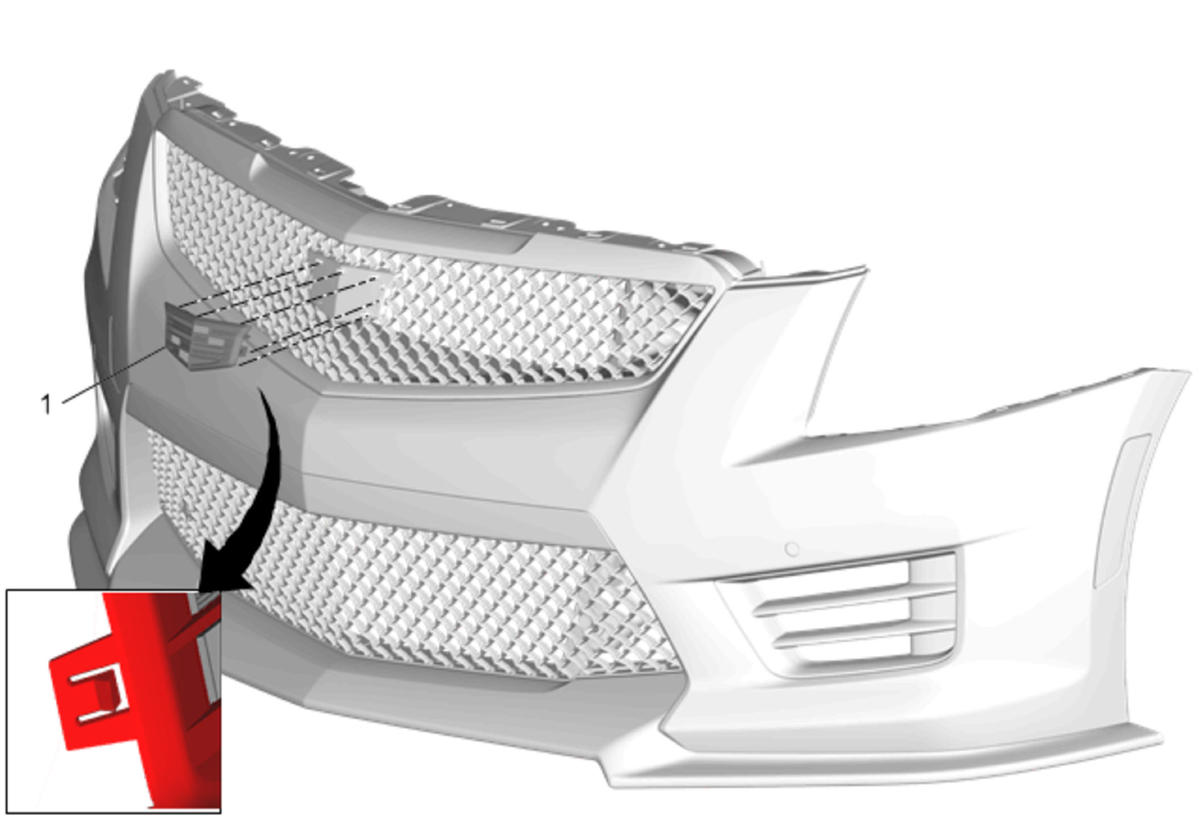

Fig 1: Front Grille Emblem/Nameplate (ATS-V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .
1	Front Grille Emblem Procedure With a suitable flat bladed tool release the retaining tabs and separate the emblem from the grille.
