Front Fog Lamp Bezel Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

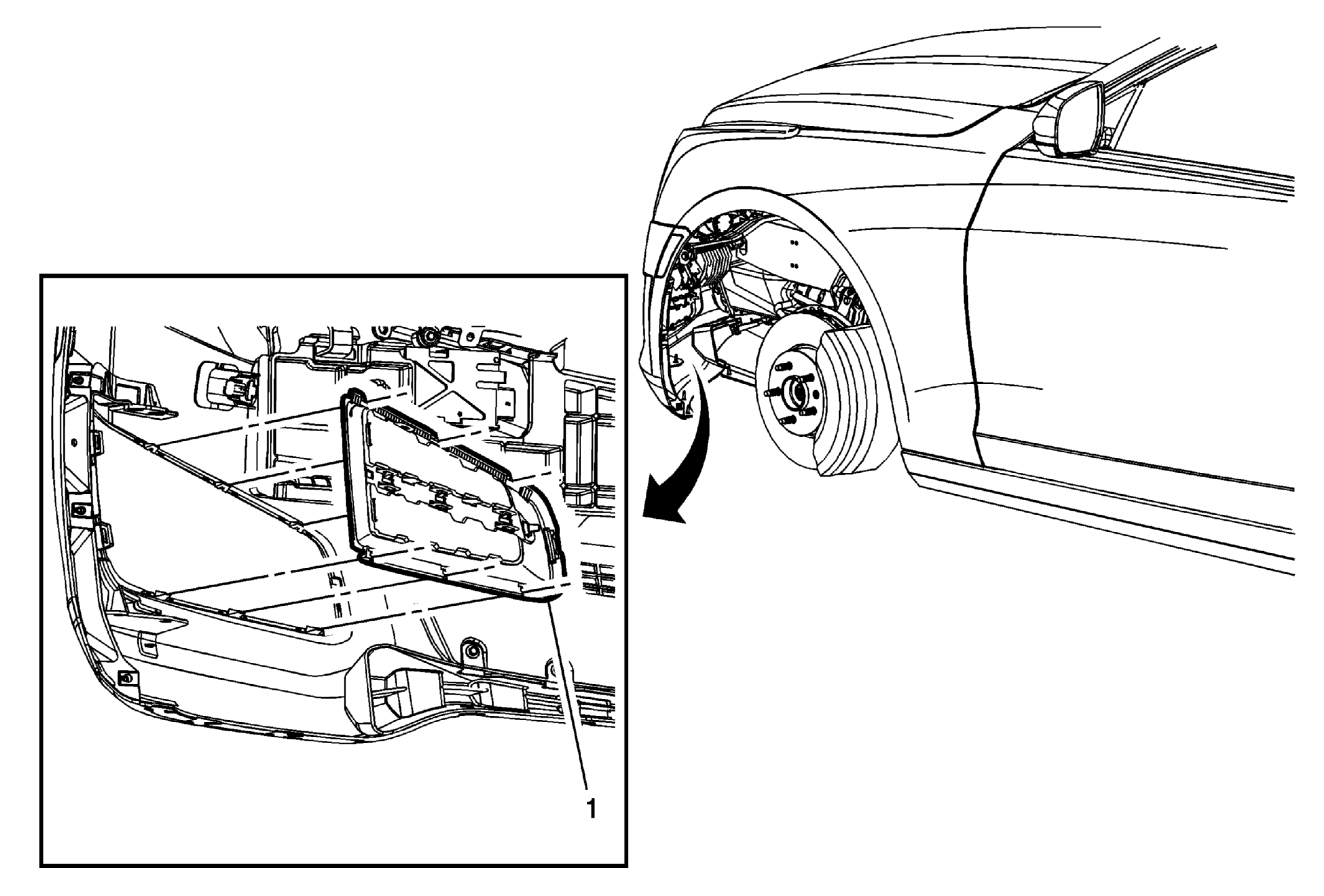

Fig 1: Front Fog Lamp Bezel (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procdure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) . Remove daytime running lamp, if equipped. Refer to Daytime Running Lamp Replacement (Sedan)
1	Front Fog Lamp Bezel Procedure Release the 7 retaining clips from the front fog lamp bezel and pull from the front bumper fascia.

Callout

Component Name

Preliminary Procdure

Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .
Remove daytime running lamp, if equipped. Refer to Daytime Running Lamp Replacement (Sedan)

Front Fog Lamp Bezel
Procedure
Release the 7 retaining clips from the front fog lamp bezel and pull from the front bumper fascia.
