Speakers (Coupe+IO5/IO6+UQA)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

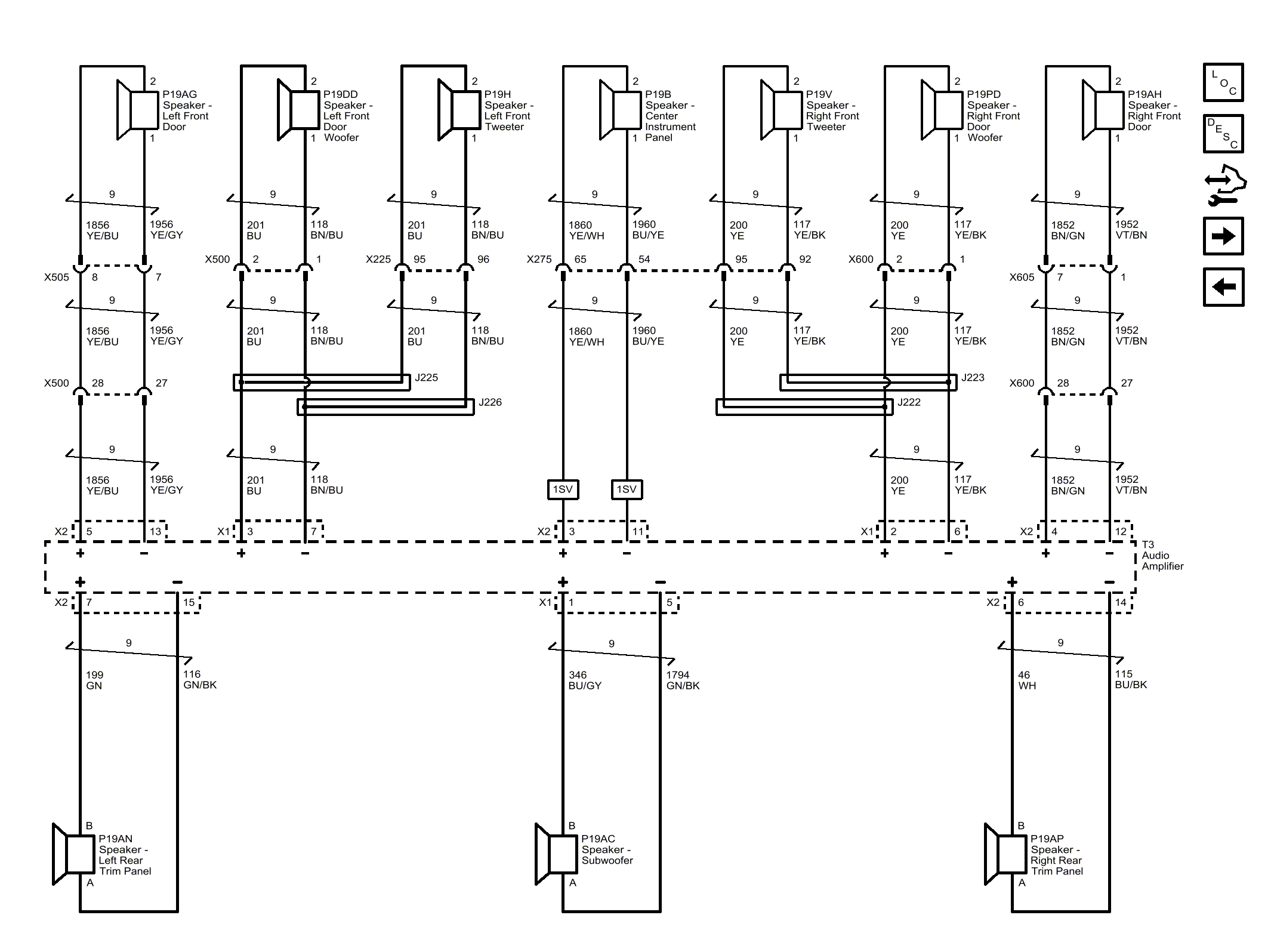

Fig 1: Speakers (Coupe+IO5/IO6+UQA)
GM4491321Courtesy of GENERAL MOTORS COMPANY
