Auxiliary Inputs (IO5 or IO6) except (IO6+1SV/MAW)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

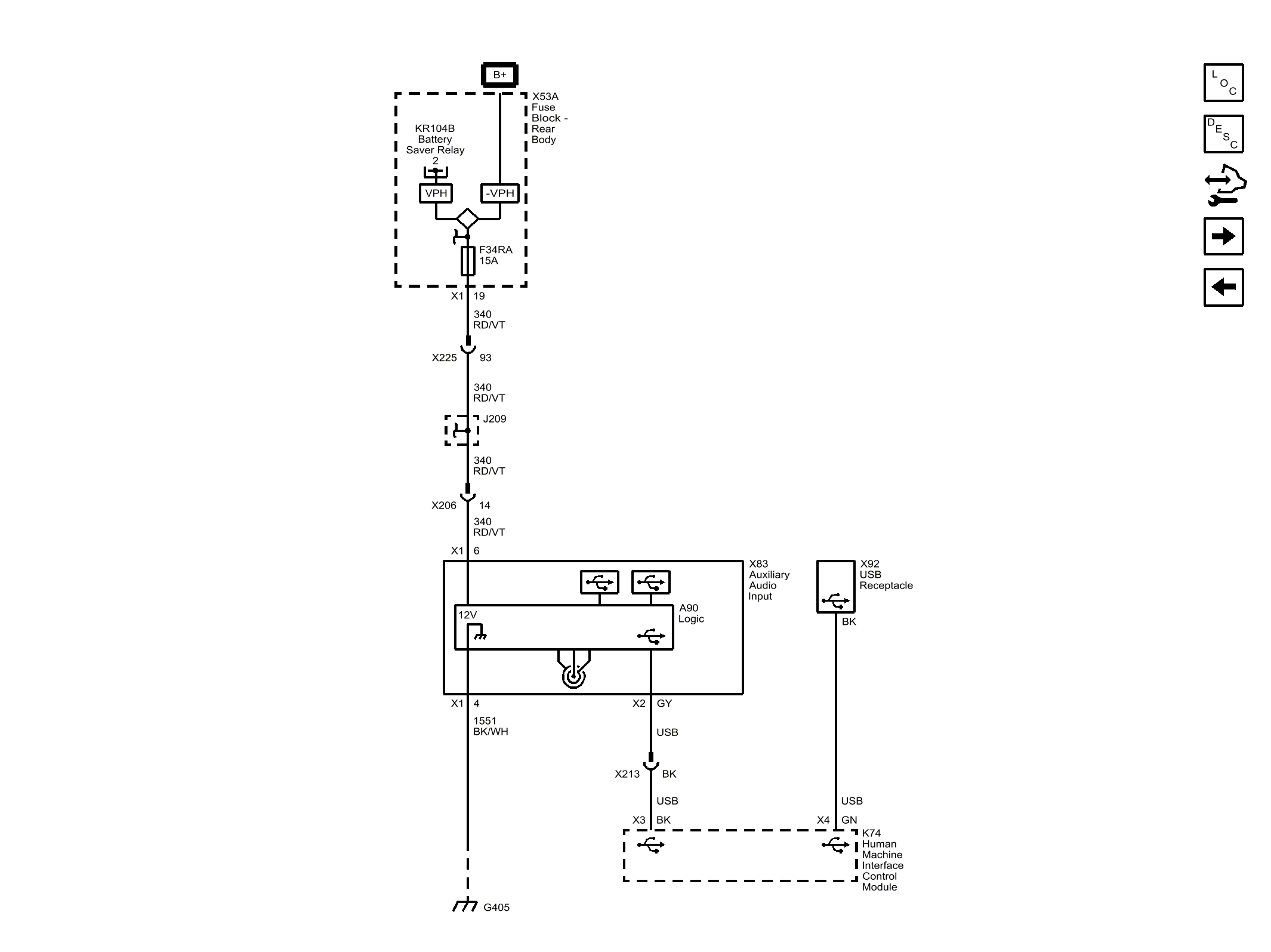

Fig 1: Auxiliary Inputs (IO5 or IO6) except (IO6+1SV/MAW)
GM4491329Courtesy of GENERAL MOTORS COMPANY
