Media Disc Player Power, Ground and Serial Data (IO3+WCN)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

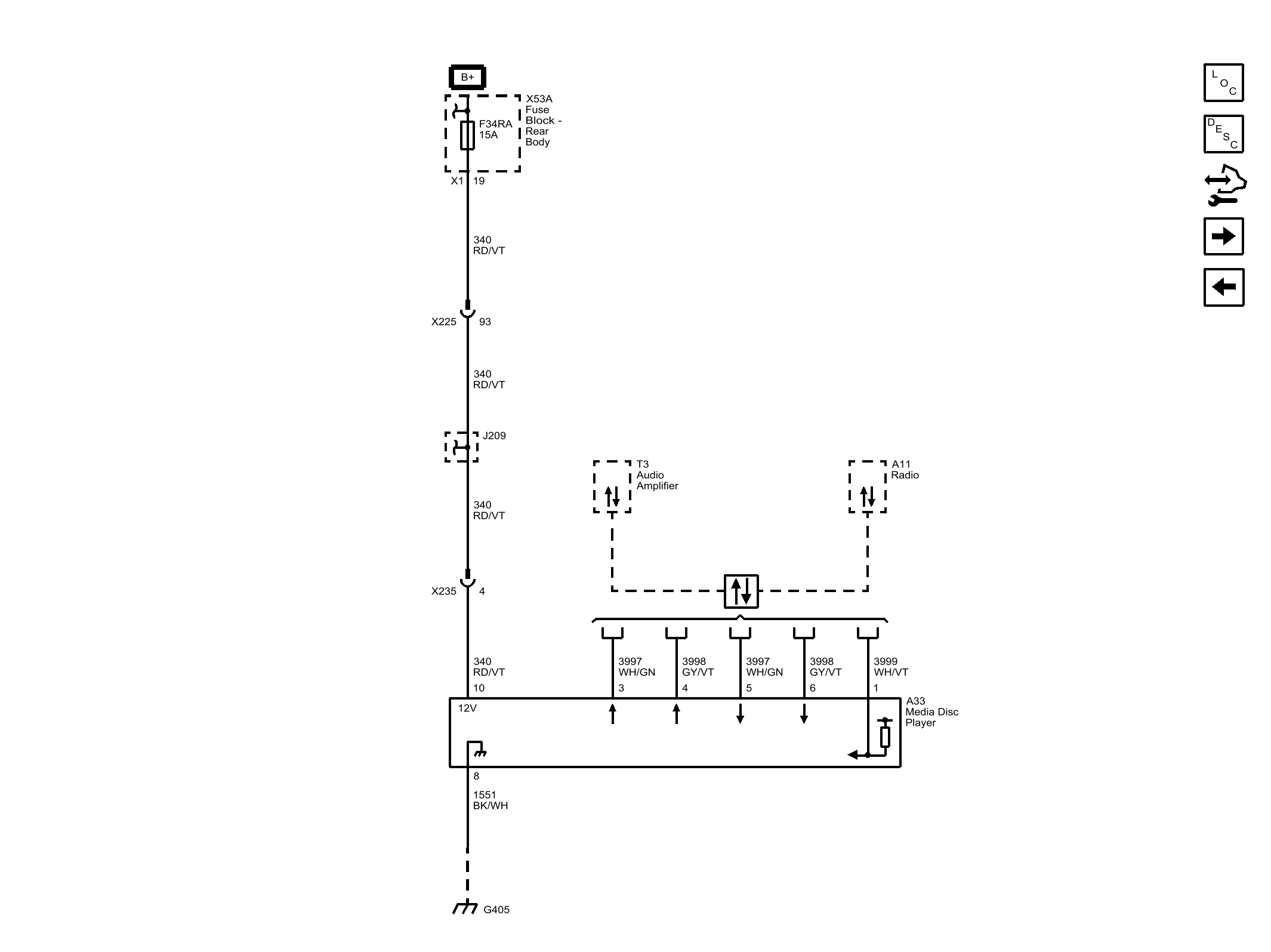

Fig 1: Media Disc Player Power, Ground and Serial Data (IO3+WCN)
GM4491293Courtesy of GENERAL MOTORS COMPANY
