Section 259 (Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics (IO3)
>>
Auxiliary Inputs (IO3)
Auxiliary Inputs (IO3)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

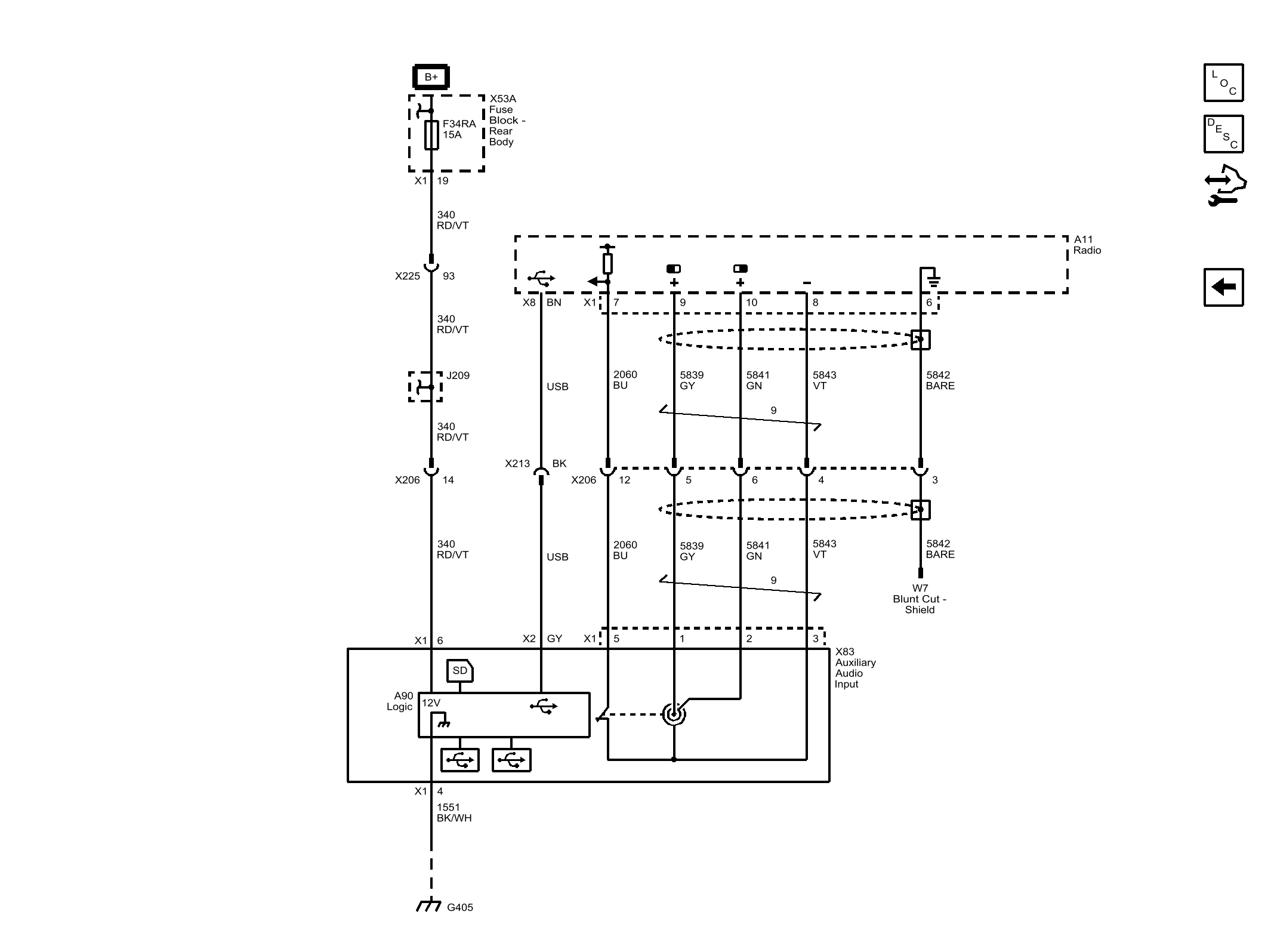

Fig 1: Auxiliary Inputs (IO3)
Courtesy of GENERAL MOTORS COMPANY
