Power, Ground, Serial Data and Antennas (UE1)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

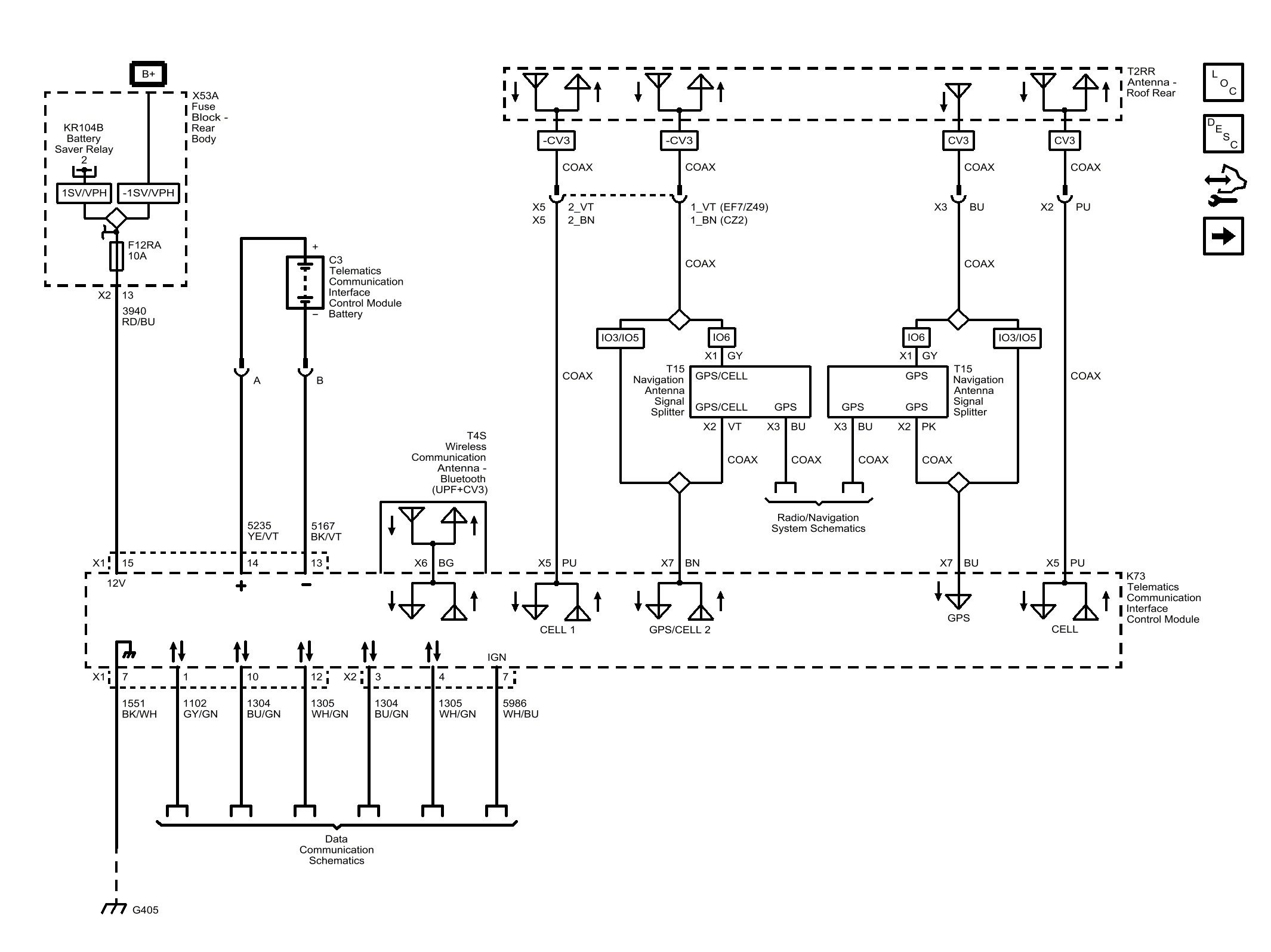

Fig 1: Power, Ground, Serial Data and Antennas (UE1)
GM4491338Courtesy of GENERAL MOTORS COMPANY
