Rear of Front Fascia Components

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Rear of Front Fascia Components

Items
1: B233LF Radar Sensor Module - Short Range Left Front (UVZ) B233LF Radar Sensor Module - Short Range Left Front
2: B233RF Radar Sensor Module - Short Range Right Front (UVZ) B233RF Radar Sensor Module - Short Range Right Front
3: B82F Pedestrian Impact Detection Sensor - Upper Beam Front (B3T) B82F Pedestrian Impact Detection Sensor - Upper Beam Front X1 (B3T)B82F Pedestrian Impact Detection Sensor - Upper Beam Front X2 (B3T)

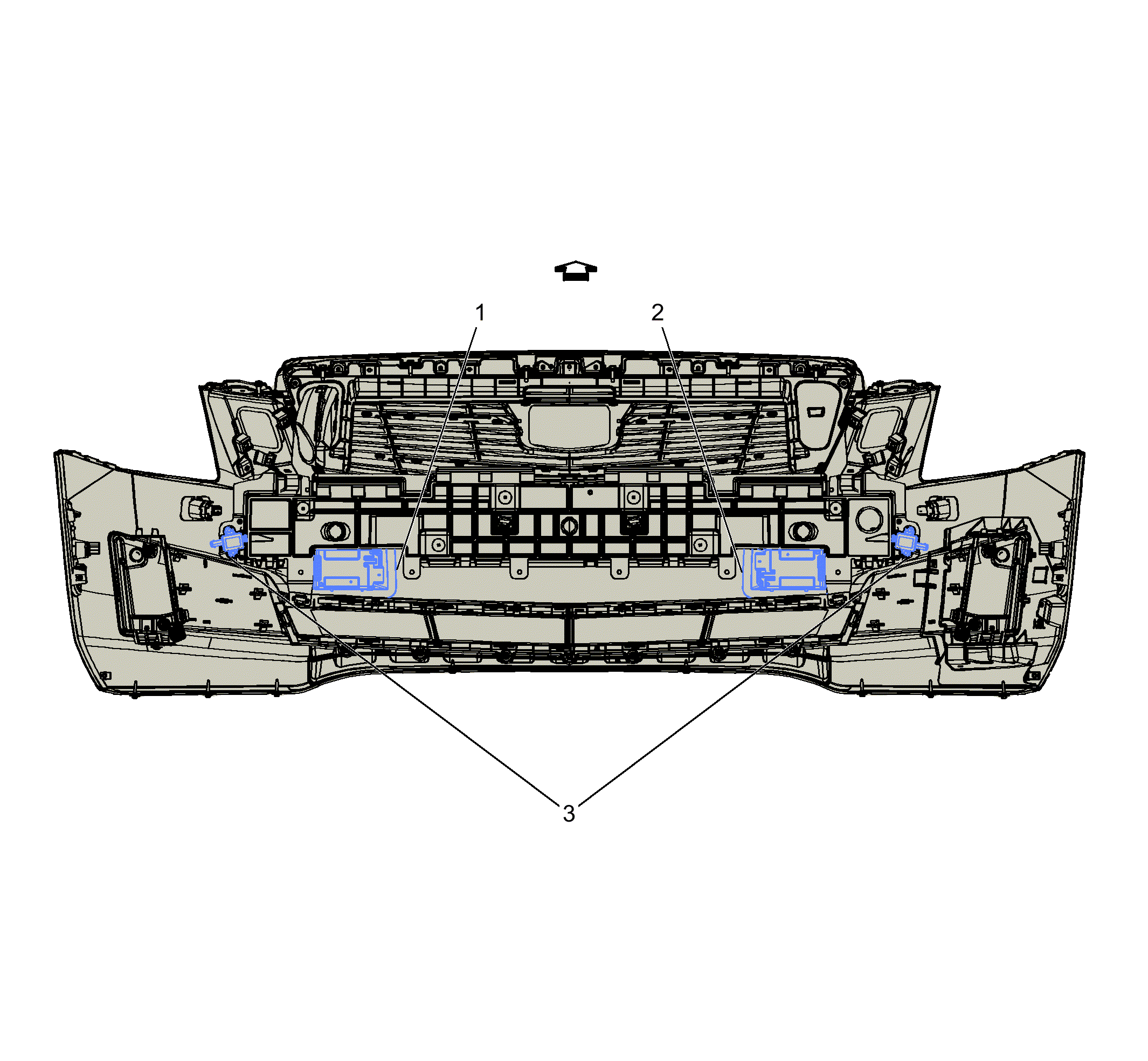

Fig 1: Rear of Front Fascia Components
GM4055860Courtesy of GENERAL MOTORS COMPANY
