Headlamp Components (-T4F)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Headlamp Components (-T4F)

Items
1: M29R Headlamp Leveling Actuator - Right M29R Headlamp Leveling Actuator - Right (TR6)M29R Headlamp Leveling Actuator - Right (TR7)
2: M29L Headlamp Leveling Actuator - Left M29L Headlamp Leveling Actuator - Left (TR6)M29L Headlamp Leveling Actuator - Left (TR7)
3: E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam (-T4F)
4: E4J Park Lamp - Left Front (TR6) E4J Park Lamp - Left Front (TR6)
5: E4LF Turn Signal Lamp - Left Front (T4F/TR6) E4LF Turn Signal Lamp - Left Front (T4F with TUJ)E4LF Turn Signal Lamp - Left Front (TR6)
6: E4N Park/Turn Signal Lamp - Left (TUJ-T4F) E4N Park/Turn Signal Lamp - Left (TUJ-T4F)
7: E4RF Turn Signal Lamp - Right Front (T4F/TR6) E4RF Turn Signal Lamp - Right Front (T4F with TUJ)E4RF Turn Signal Lamp - Right Front (TR6)
8: E4P Park/Turn Signal Lamp - Right (TUJ-T4F) E4P Park/Turn Signal Lamp - Right (TUJ-T4F)
9: E4K Park Lamp - Right Front (TR6) E4K Park Lamp - Right Front (TR6)
10: E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam (-T4F)

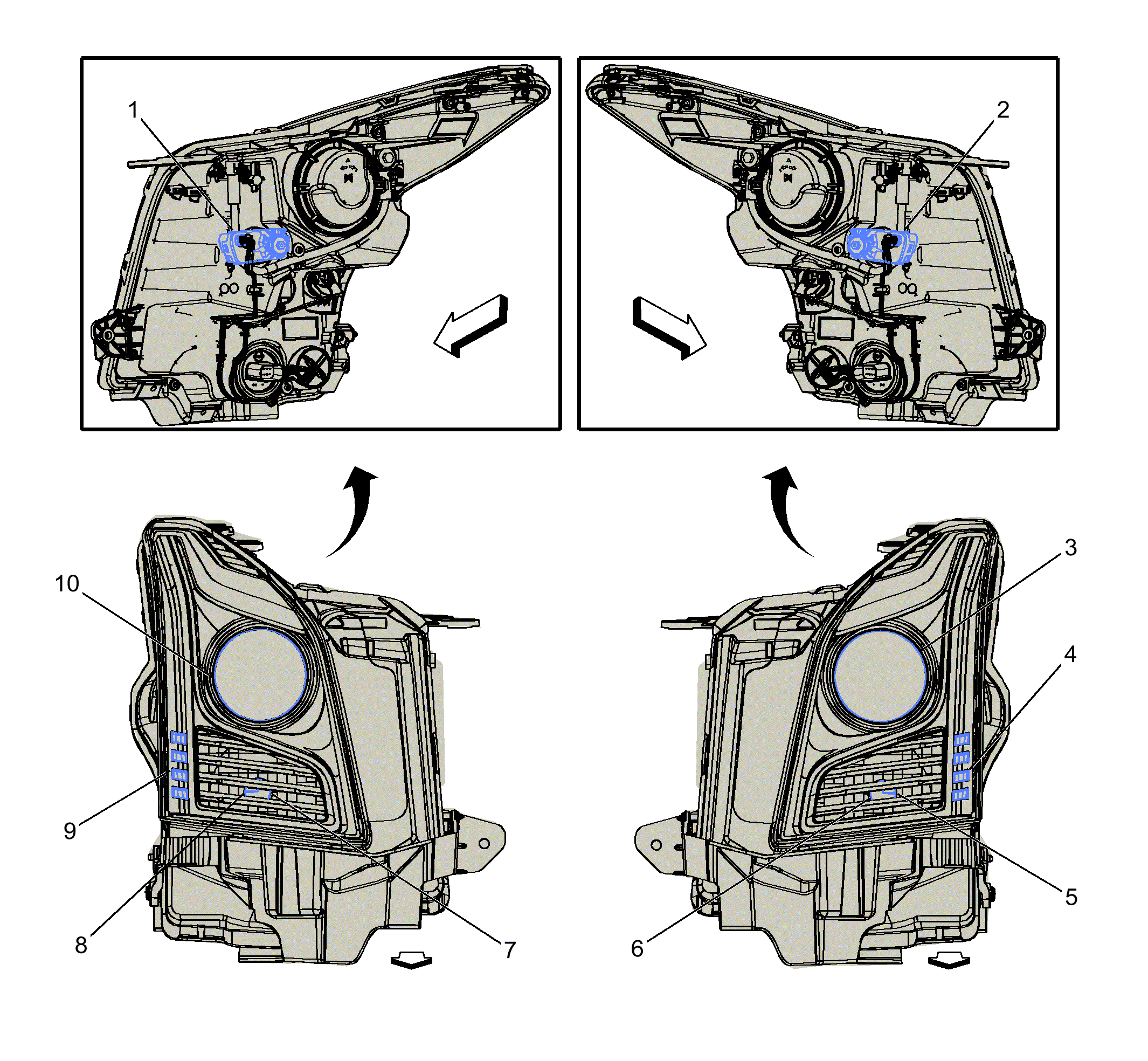

Fig 1: Headlamp Components (-T4F)

GM4055863

Courtesy of GENERAL MOTORS COMPANY
