Front of Vehicle Components (1SV)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Items
1: E4Z Turn Signal Repeater Lamp - Right (Coupe/DR2/DR4) E4Z Turn Signal Repeater Lamp - Right (Coupe/DR2/DR4)
2: E4Y Turn Signal Repeater Lamp - Left (Coupe/DR2/DR4) E4Y Turn Signal Repeater Lamp - Left (Coupe/DR2/DR4)
3: E13LA Headlamp Assembly - Left
4: E2LF Side Marker Lamp - Left Front (TUJ) E2LF Side Marker Lamp - Left Front (TUJ+1SV)E2LF Side Marker Lamp - Left Front (TUJ-1SV)
5: B306A Parking Assist Sensor - Front Left Outer (UD5) B306A Parking Assist Sensor - Front Left Outer
6: B306B Parking Assist Sensor - Front Left Middle (UD5) B306D Parking Assist Sensor - Front Right Outer
7: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (-LF4/LT4)B9 Ambient Air Temperature Sensor (LF4/LT4)
8: B306C Parking Assist Sensor - Front Right Middle (UD5) B306B Parking Assist Sensor - Front Left Middle
9: B306D Parking Assist Sensor - Front Right Outer (UD5) B306C Parking Assist Sensor - Front Right Middle
10: E2RF Side Marker Lamp - Right Front (TUJ) E2RF Side Marker Lamp - Right Front (TUJ+1SV)E2RF Side Marker Lamp - Right Front (TUJ-1SV)
11: E13RA Headlamp Assembly - Right

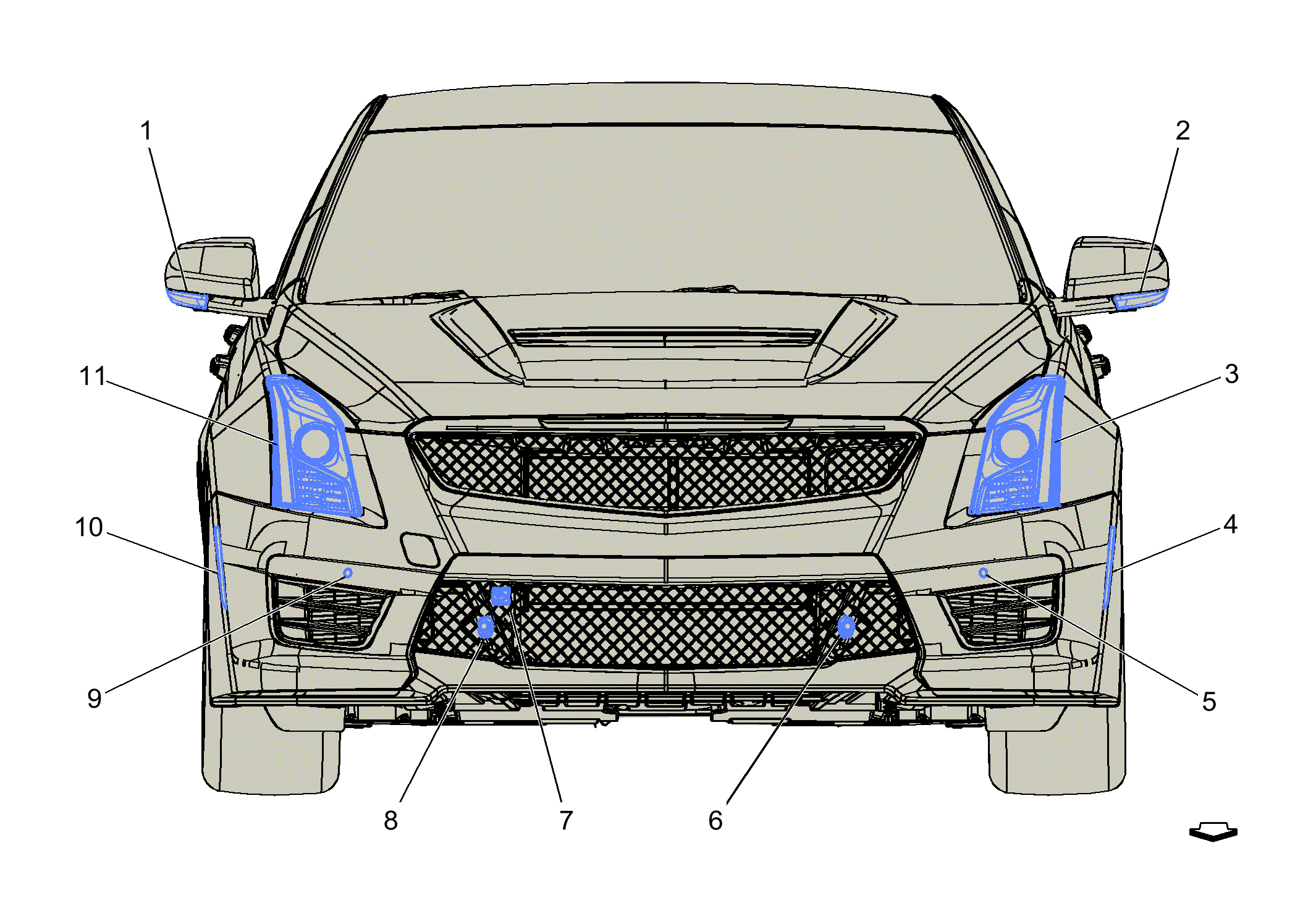

Fig 1: Front of Vehicle Components (1SV)

Courtesy of GENERAL MOTORS COMPANY
