Front Bumper Components (-1SV)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Front Bumper Components (-1SV)

Items
1: B233B Radar Sensor Module - Long Range (UGN) B233B Radar Sensor Module - Long Range
2: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (-LF4/LT4)B9 Ambient Air Temperature Sensor (LF4/LT4)

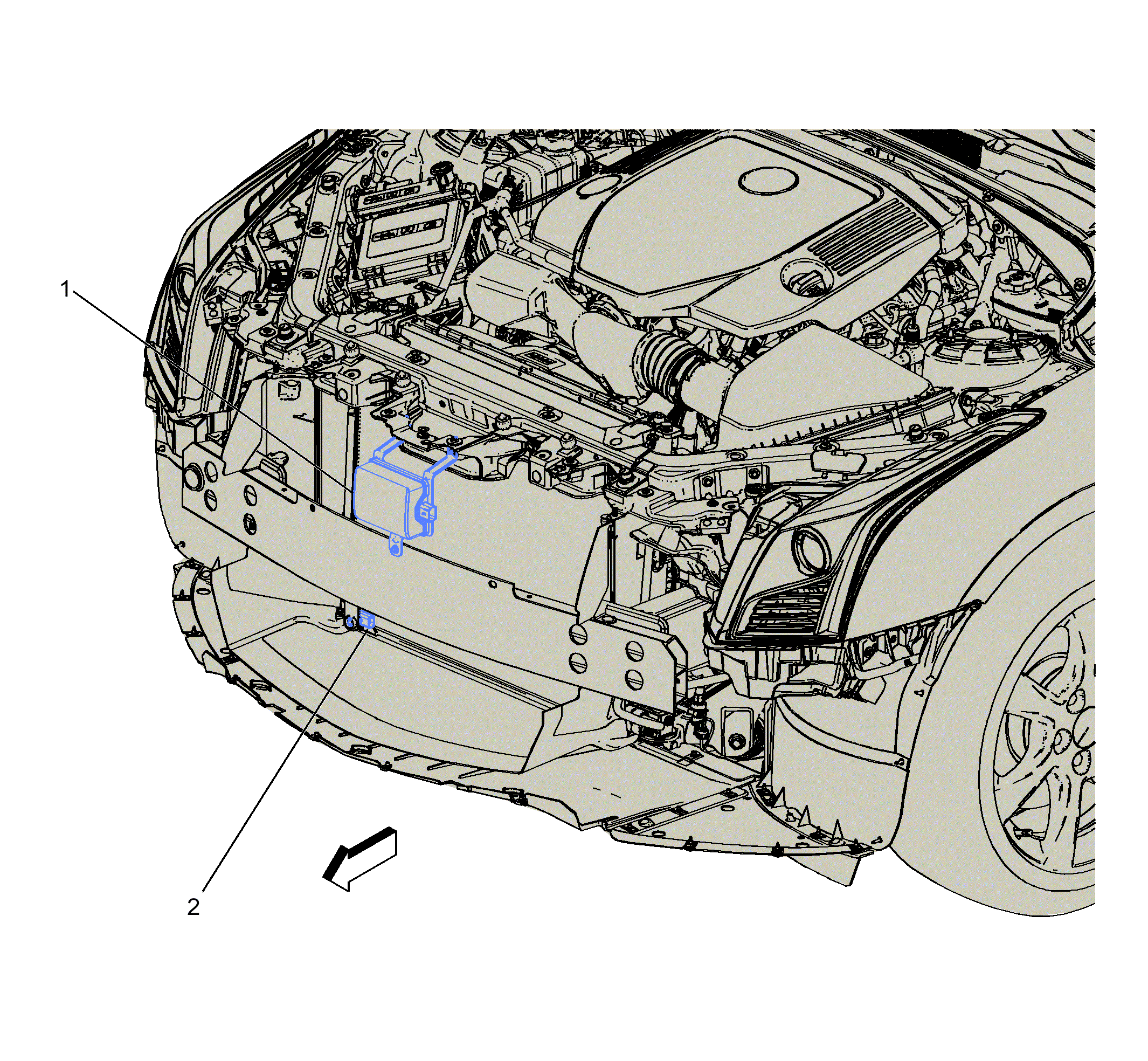

Fig 1: Front Bumper Components (-1SV)
GM4055868Courtesy of GENERAL MOTORS COMPANY
