Horn Replacement (ATS)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

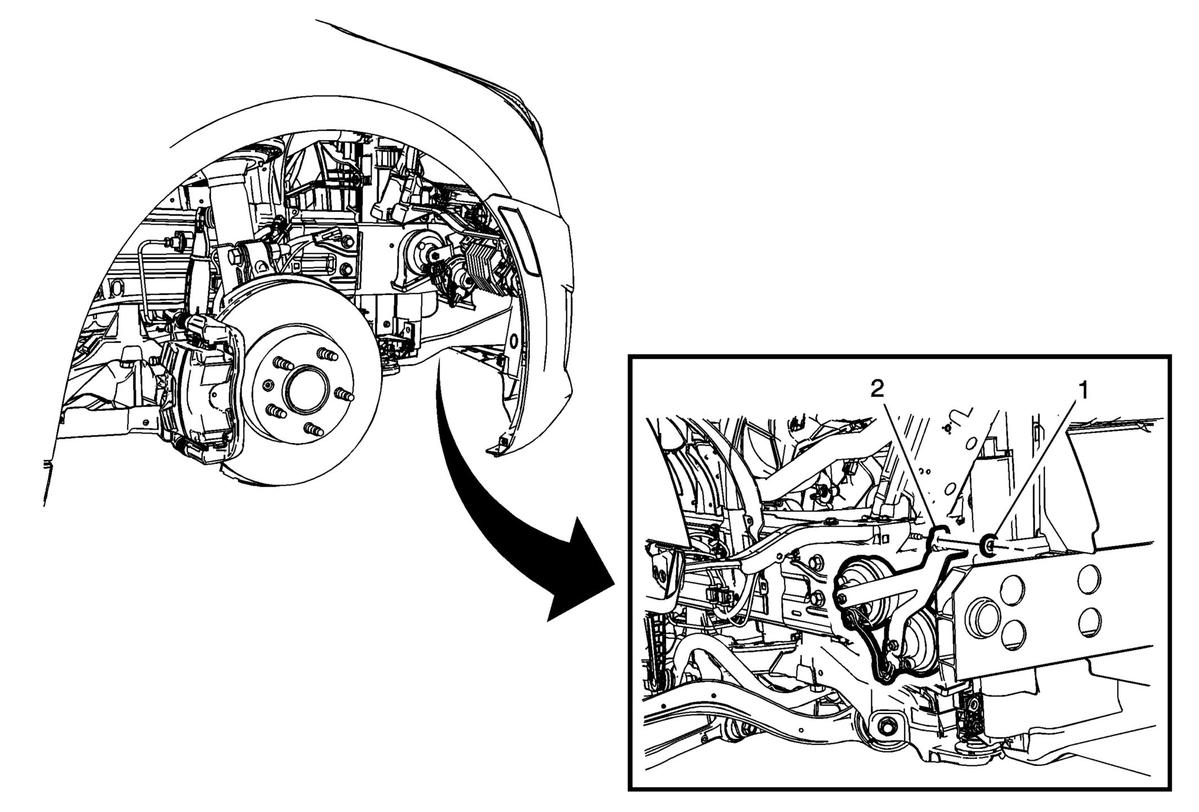

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) . |
|
| 1 | Horn Nut
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Horn Procedure Disconnect the electrical connector. |
