System Description

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

The horn system consists of the following components:

HORN fuse
Horn relay
Horn switch
Horn assembly
Body control module (BCM)

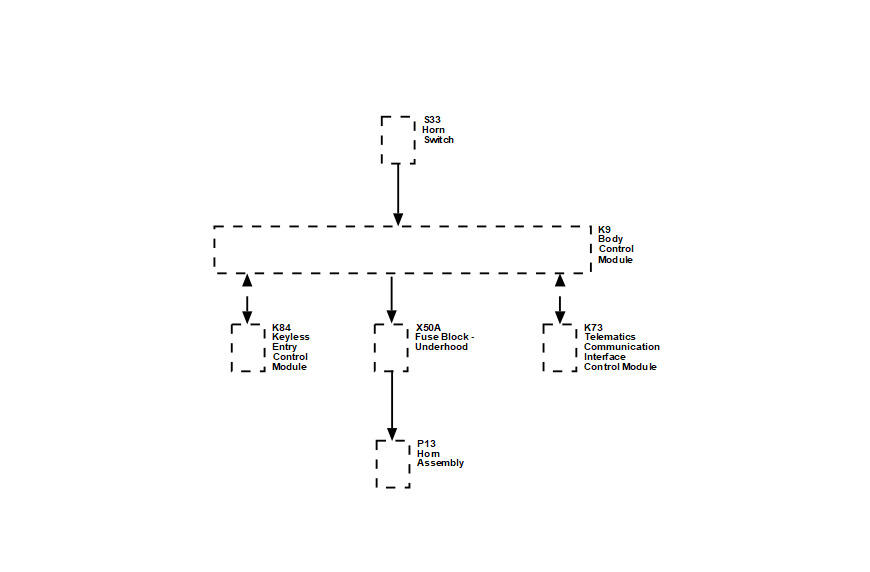

Fig 1: Horns System Description Chart

Courtesy of GENERAL MOTORS COMPANY
