Outside Rearview Mirror Remote Control Switch Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

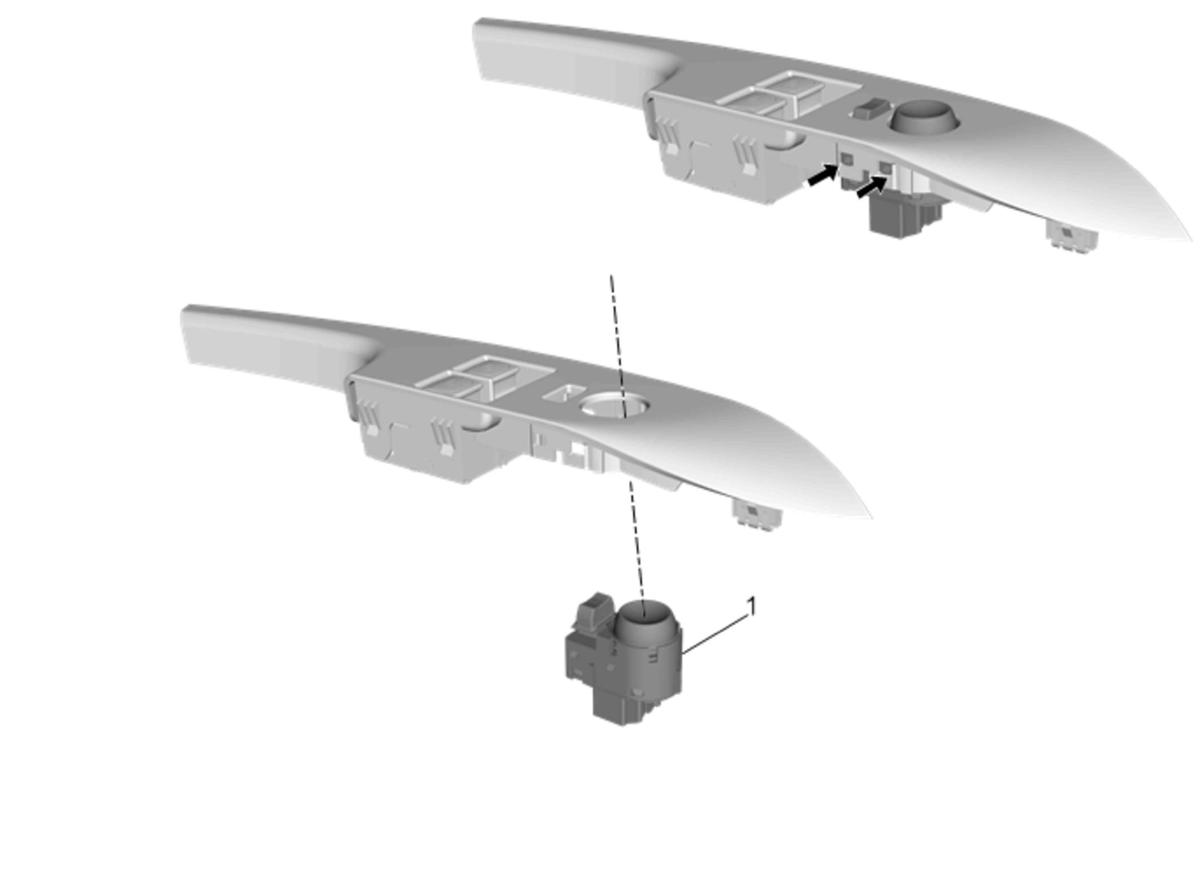

Fig 1: Outside Rearview Mirror Remote Control Switch (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door armrest switch mount plate - drivers side door. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Coupe) .
1	Outside Rearview Mirror Remote Control Switch Assembly Procedure Release tabs on switch to remove from the front side door armrest switch mount plate. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove the front side door armrest switch mount plate - drivers side door. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Coupe) .

Outside Rearview Mirror Remote Control Switch Assembly

Procedure

Release tabs on switch to remove from the front side door armrest switch mount plate.
Refer to Control Module References for programming and set up procedures, if required.
