Outside Rearview Mirror Inner Actuator Replacement (DR4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

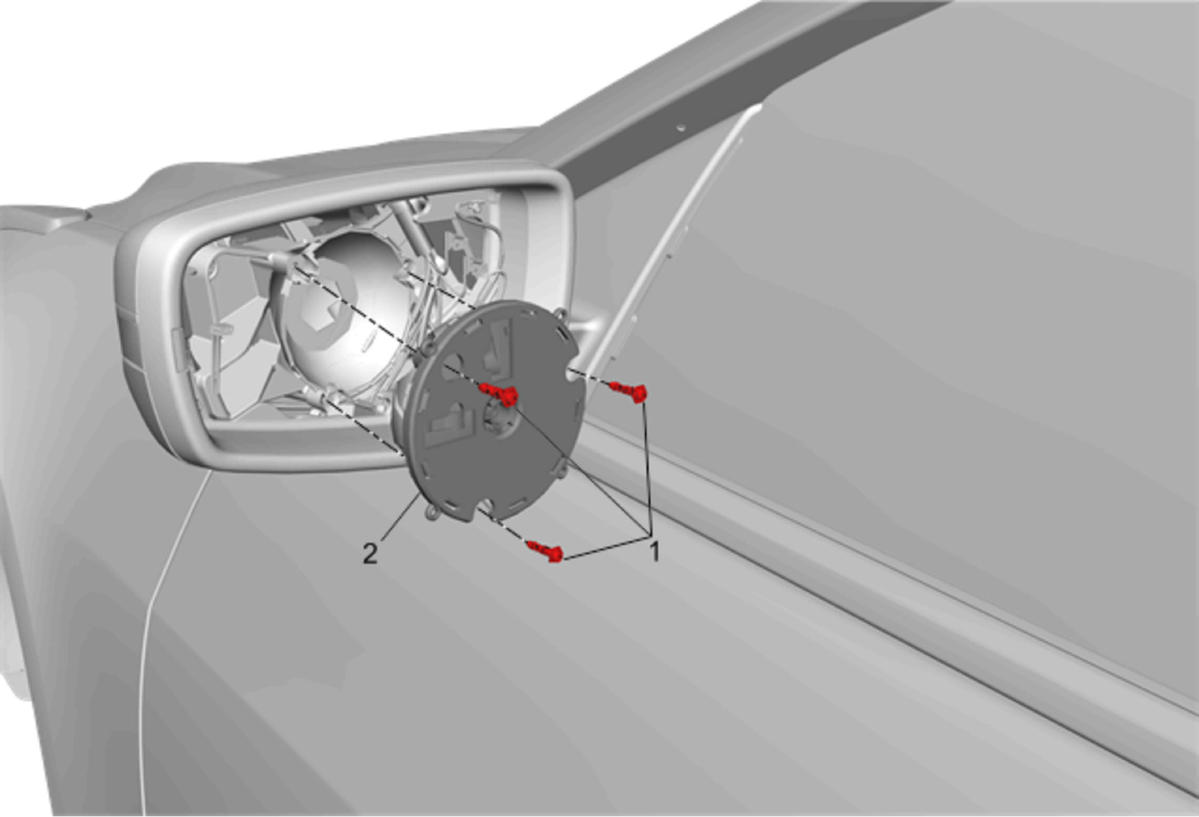

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement (DR4) . |
|
| 1 | Outside Rearview Mirror Inner Actuator Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connectors. Tighten 3 N.m (26 lb in) |
| 2 | Outside Rearview Mirror Inner Actuator
NOTE:
Inspect the outside rearview mirror for proper operation. |
