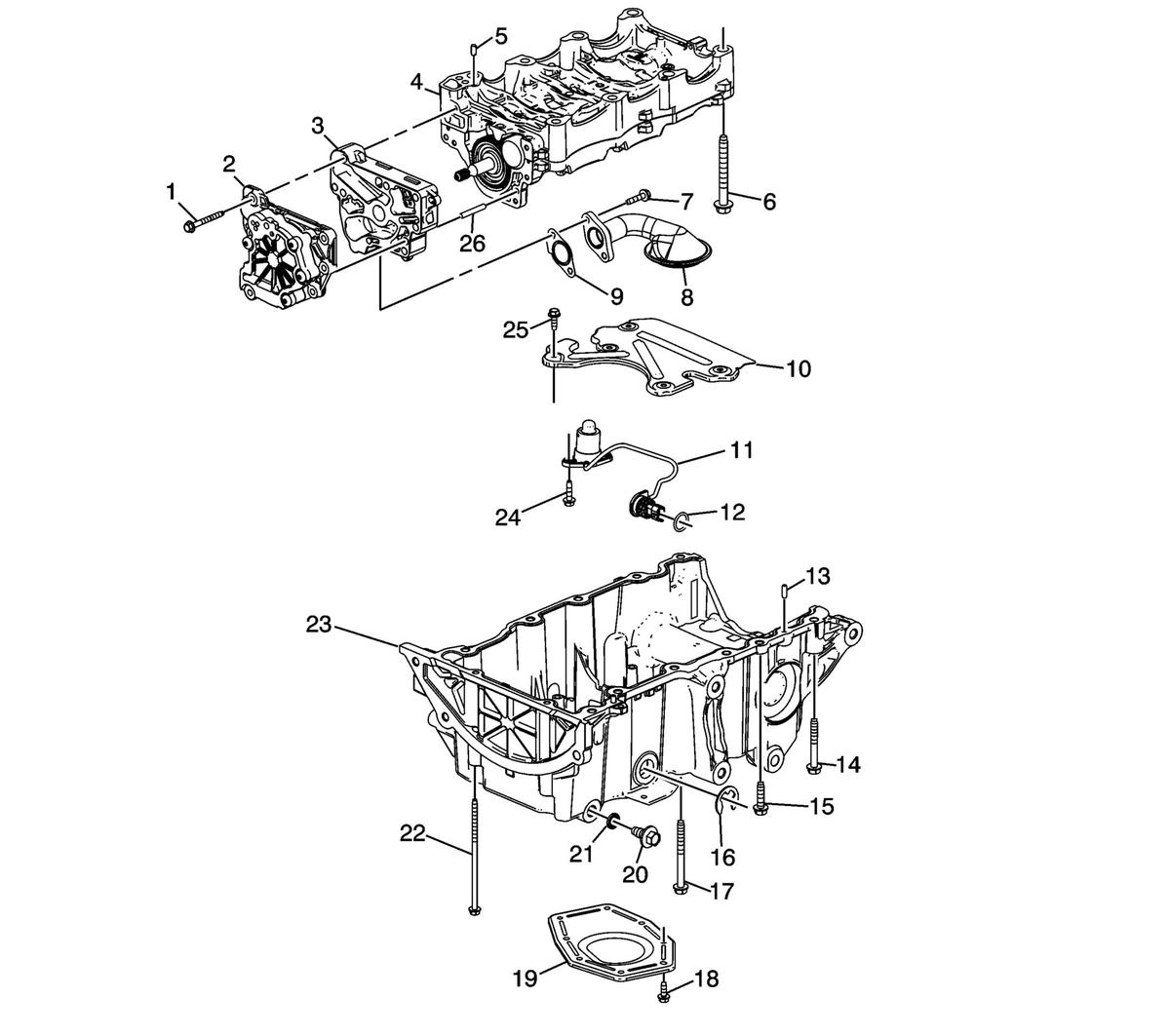

Upper and Lower Oil Pan and Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Oil Pump Assembly Bolt |
| 2 | Oil Pump Assembly |
| 3 | Oil Pump Cover |
| 4 | Balancer Shaft Module |
| 5 | Balancer Shaft Housing Locating Pin |
| 6 | Balancer Shaft Housing Bolt |
| 7 | Oil Pump Suction Pipe Bolt |
| 8 | Oil Pump Screen Assembly with Suction Pipe |
| 9 | Oil Pump Screen Gasket |
| 10 | Oil Pan Baffle |
| 11 | Engine Oil Level Indicator Switch |
| 12 | Engine Oil Level Indicator Seal |
| 13 | Oil Pan Locating Pin |
| 14 | Oil Pan Bolt |
| 15 | Oil Pan Bolt |
| 16 | Engine Oil Level Sensor Lead Clip |
| 17 | Oil Pan Bolt |
| 18 | Lower Oil Pan Bolt |
| 19 | Lower Oil Pan |
| 20 | Oil Pan Drain Plug |
| 21 | Oil Pan Drain Plug Seal |
| 22 | Oil Pan Bolt |
| 23 | Upper Oil Pan |
| 24 | Engine Oil Level Indicator Switch Bolt |
| 25 | Oil Pan Baffle Bolt |
| 26 | Oil Pump Locating Pin |
