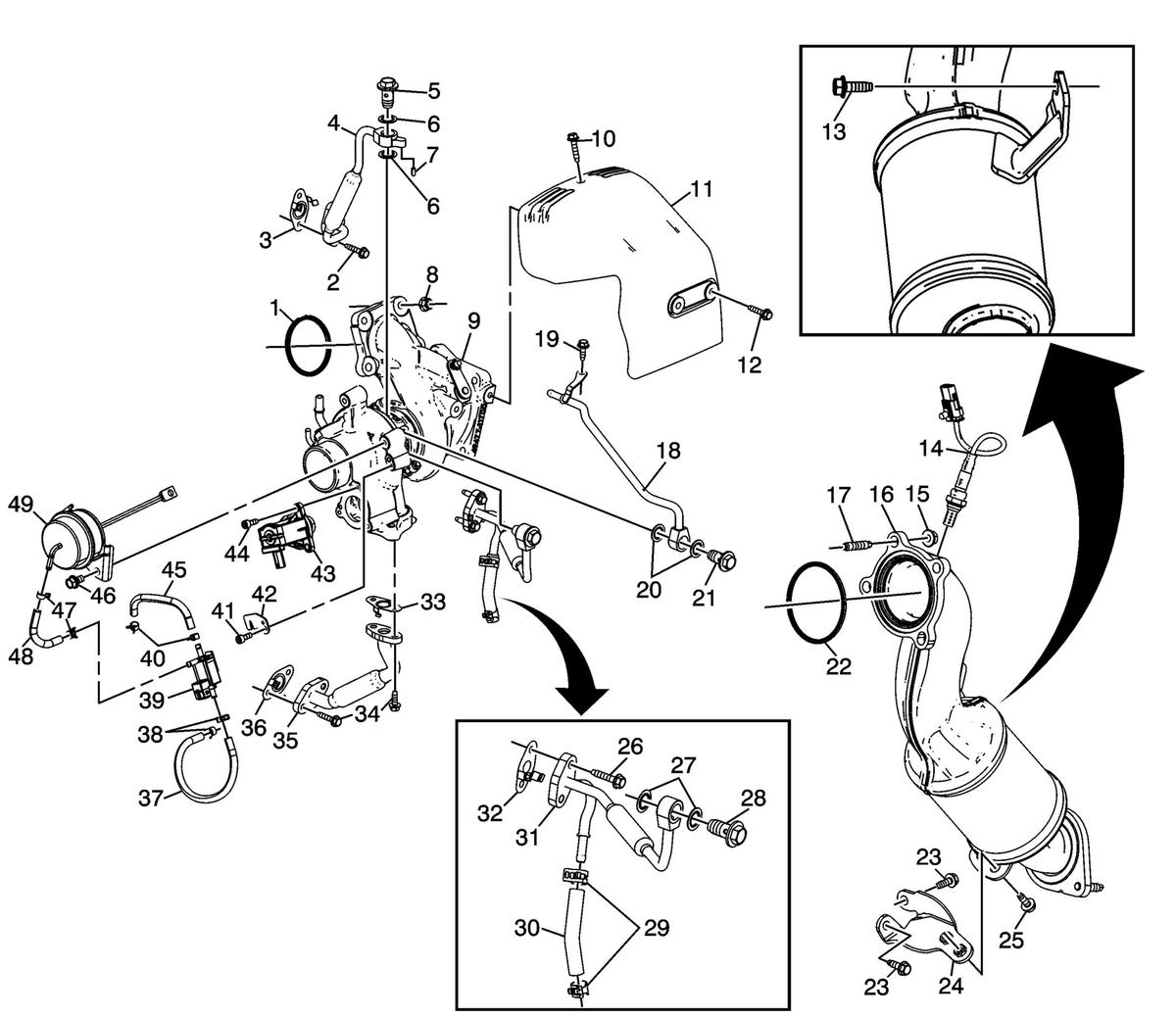

Turbocharger and Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Gasket |
| 2 | Turbocharger Oil Feed Pipe Bolt |
| 3 | Turbocharger Oil Feed Pipe Gasket |
| 4 | Turbocharger Oil Feed Pipe Assembly |
| 5 | Turbocharger Oil Feed Pipe Bolt |
| 6 | Turbocharger Oil Feed Pipe Washer |
| 7 | Turbocharger Oil Feed Pipe Anti-Rotate Roll Pin |
| 8 | Turbocharger Nut |
| 9 | Turbocharger |
| 10 | Turbocharger Heat Shield Bolt |
| 11 | Turbocharger Heat Shield |
| 12 | Turbocharger Heat Shield Bolt |
| 13 | Catalytic Converter Brace Bolt |
| 14 | Heated Oxygen Sensor |
| 15 | Catalytic Converter Nut |
| 16 | Catalytic Converter |
| 17 | Turbocharger Exhaust Pipe Stud |
| 18 | Turbocharger Coolant Return Pipe Assembly |
| 19 | Turbocharger Coolant Return Pipe Bolt |
| 20 | Turbocharger Coolant Return Pipe Washer |
| 21 | Turbocharger Coolant Return Pipe Bolt |
| 22 | Catalytic Converter Seal |
| 23 | Catalytic Converter Brace Bolt |
| 24 | Catalytic Converter Brace |
| 25 | Catalytic Converter Bolt |
| 26 | Turbocharger Coolant Feed Pipe Bolt |
| 27 | Turbocharger Coolant Feed Pipe Washer |
| 28 | Turbocharger Coolant Feed Pipe Bolt |
| 29 | Turbocharger Coolant Feed Hose Clamp |
| 30 | Turbocharger Coolant Feed Hose |
| 31 | Turbocharger Coolant Feed Pipe Assembly |
| 32 | Turbocharger Coolant Feed Pipe Gasket |
| 33 | Turbocharger Oil Return Pipe Gasket |
| 34 | Turbocharger Oil Return Pipe Bolt |
| 35 | Turbocharger Oil Return Pipe Assembly |
| 36 | Turbocharger Oil Return Pipe Gasket |
| 37 | Turbocharger Wastegate Regulator Solenoid Valve Hose |
| 38 | Turbocharger Wastegate Regulator Solenoid Valve Hose Clamp |
| 39 | Turbocharger Wastegate Regulator Solenoid Valve |
| 40 | Turbocharger Wastegate Regulator Solenoid Valve Hose Clamp |
| 41 | Turbocharger Wastegate Regulator Solenoid Valve Bracket Bolt |
| 42 | Turbocharger Wastegate Regulator Solenoid Valve Bracket |
| 43 | Turbocharger Air Bypass Valve Solenoid |
| 44 | Turbocharger Air Bypass Valve Solenoid Bolt |
| 45 | Turbocharger Wastegate Regulator Solenoid Valve Hose |
| 46 | Turbocharger Wastegate Actuator Bolt |
| 47 | Turbocharger Wastegate Actuator Hose Clamp |
| 48 | Turbocharger Wastegate Actuator Hose |
| 49 | Turbocharger Wastegate Actuator |
