Rear Axle Harness Routing

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

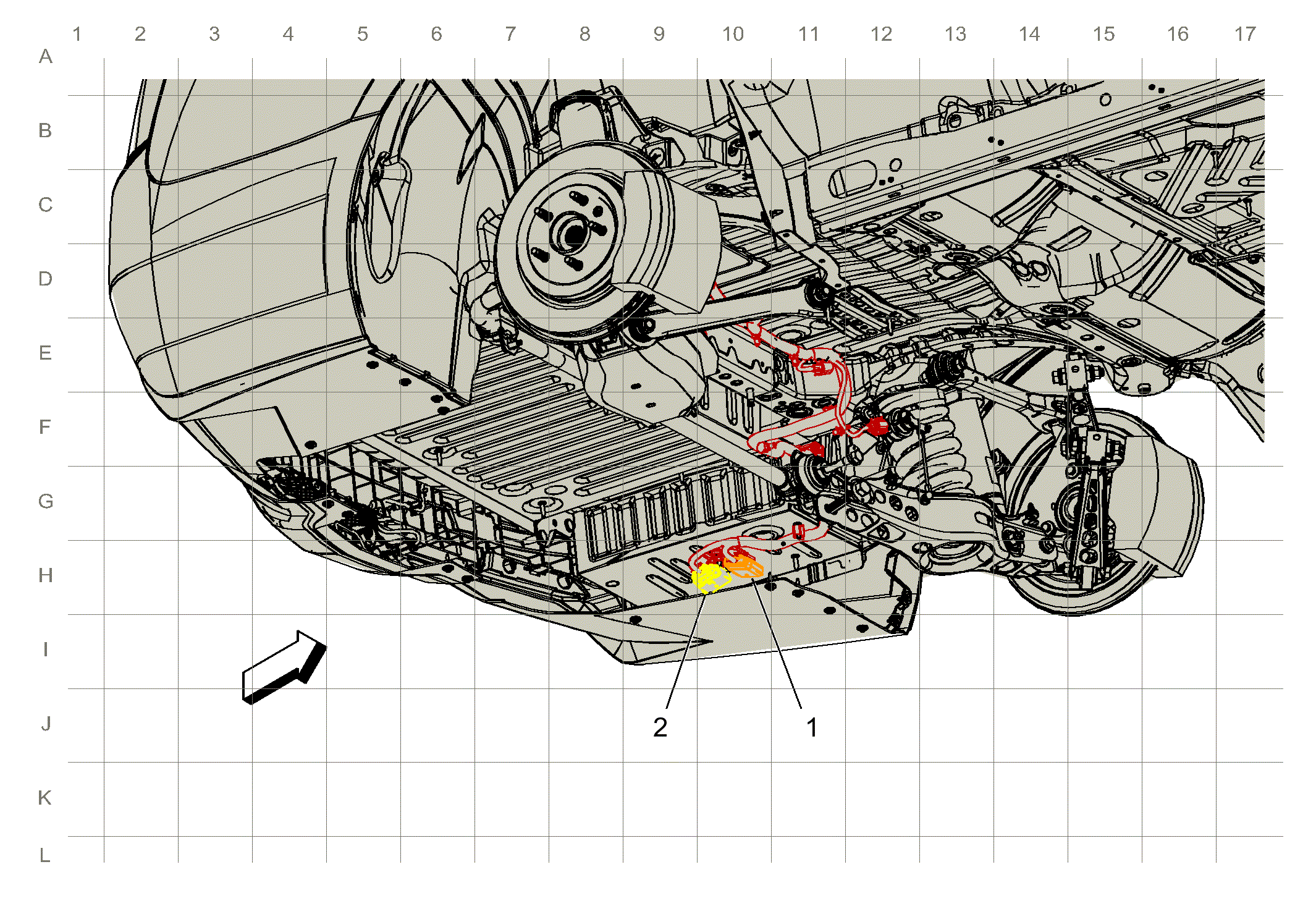

Fig 1: Rear Axle Harness Routing
GM4055753Courtesy of GENERAL MOTORS COMPANY
Items
1. X402 Body Harness to Rear Chassis Harness (20 cavities) X402 Body Harness to Rear Chassis Harness
2. X403 Body Harness to Rear Chassis Harness (16 cavities) (J77) X403 Body Harness to Rear Chassis Harness (J77)
