Passenger Seat Harness Routing (Coupe+AQ9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

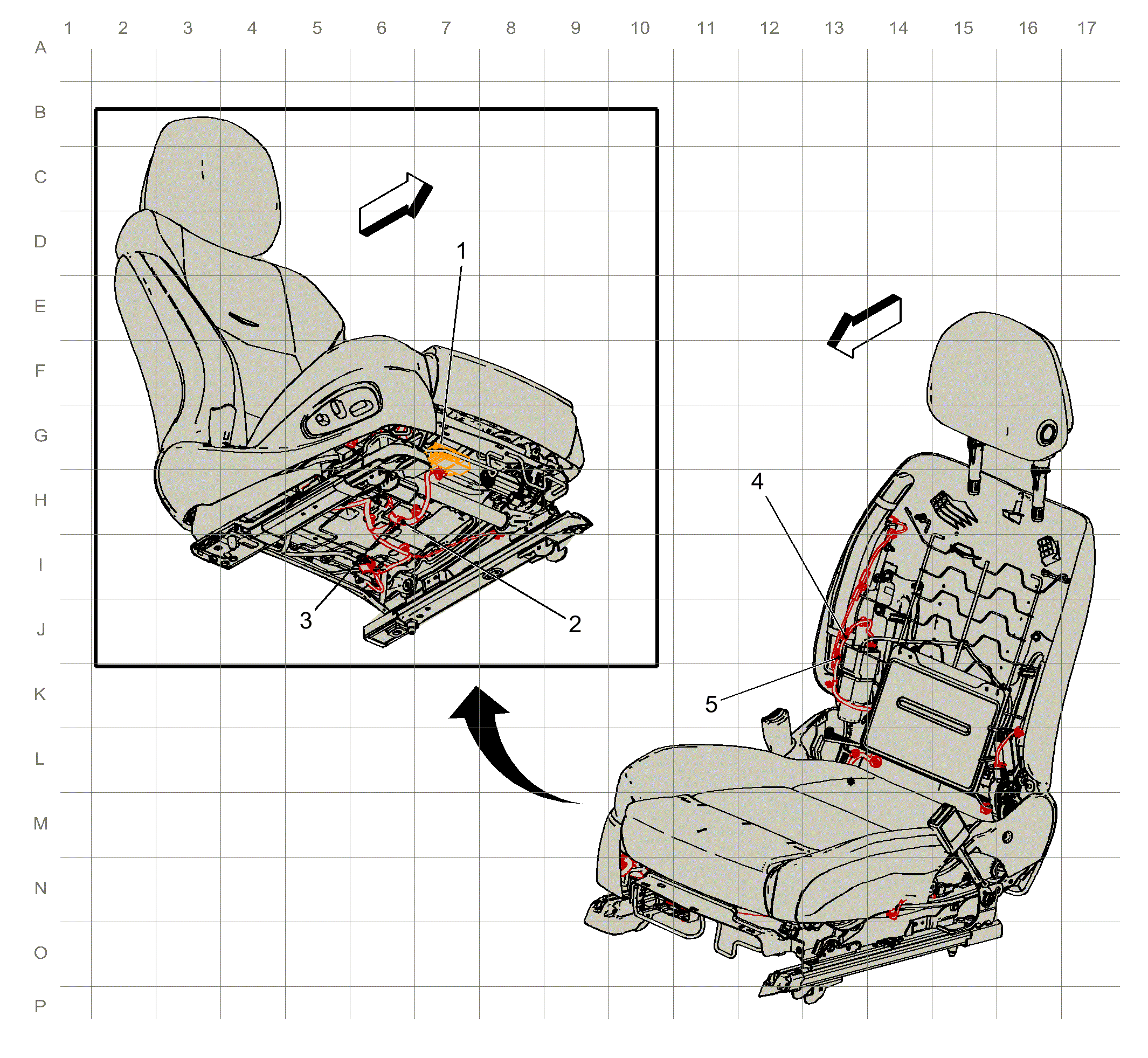

Fig 1: Passenger Seat Harness Routing (Coupe+AQ9)
GM4055719Courtesy of GENERAL MOTORS COMPANY
Items
1. X320 Body Harness to Passenger Seat Harness (42 cavities) X320 Body Harness to Passenger Seat Harness
2. J374 Passenger Seat Harness
3. J360 Passenger Seat Harness
4. J361 Passenger Seat Harness
5. J362 Passenger Seat Harness
