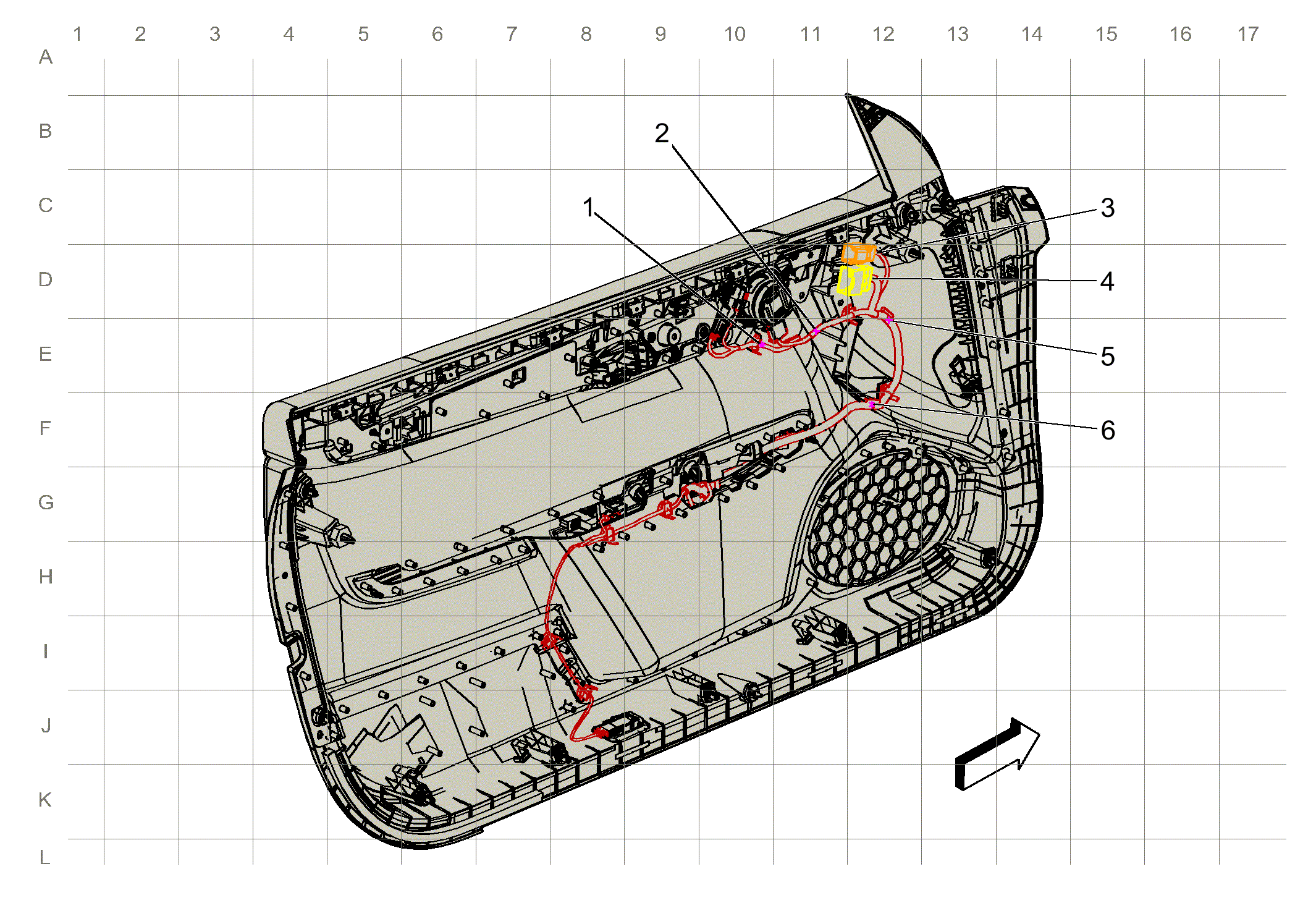

Passenger Door Trim Harness Routing (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J608 Passenger Door Trim Harness (Coupe) |
| 2. J605 Passenger Door Trim Harness |
| 3. X605 Passenger Door Harness to Passenger Door Trim Harness (12 Cavities) (Coupe/A45+DR4) X605 Passenger Door Harness to Passenger Door Trim Harness (Coupe/A45+DR4) |
| 4. X606 Passenger Door Harness to Passenger Door Trim Harness (20 Cavities) X606 Passenger Door Harness to Passenger Door Trim Harness |
| 5. J609 Passenger Door Trim Harness |
| 6. J607 Passenger Door Trim Harness |
