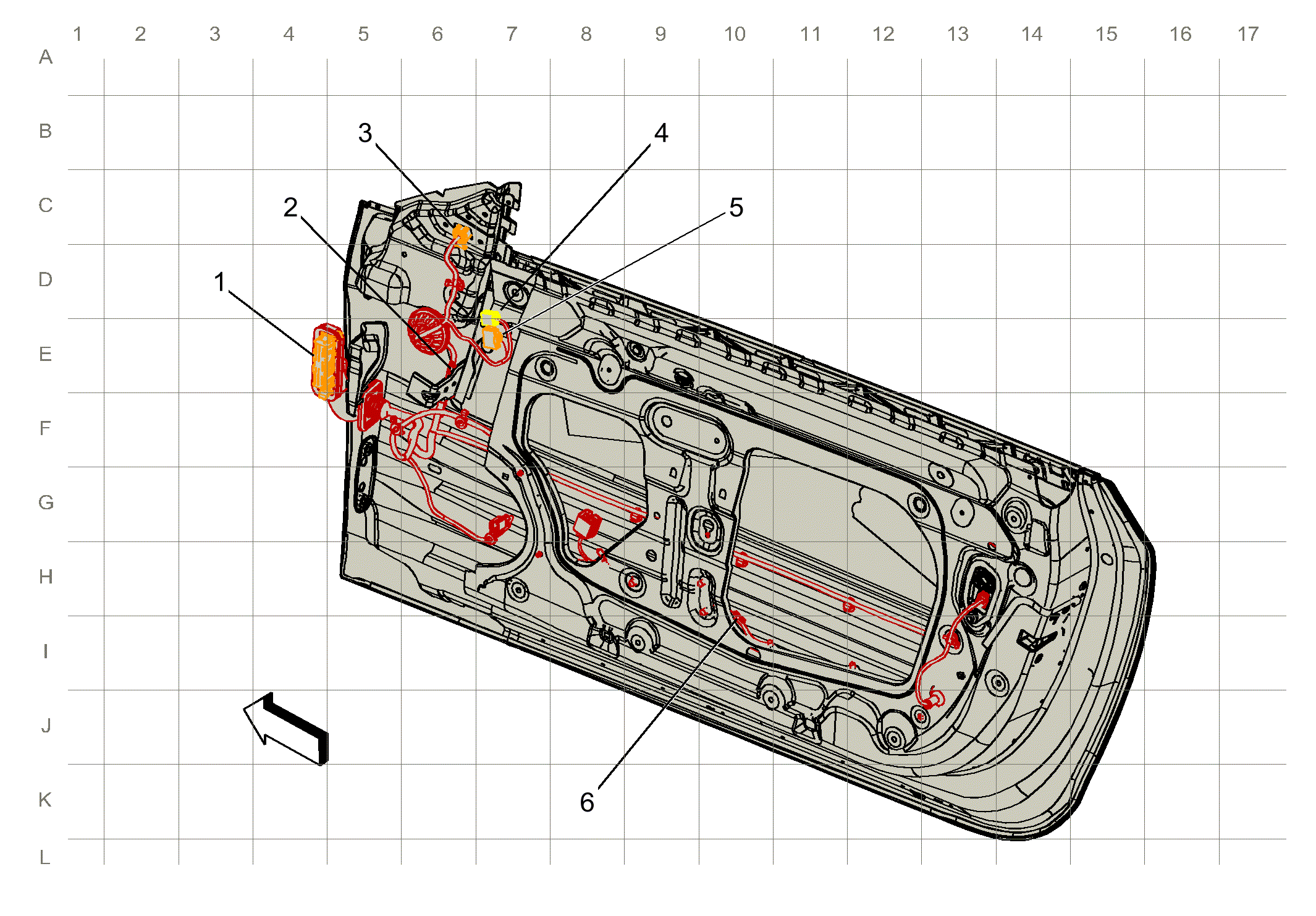

Passenger Door Harness Routing (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X600 Passenger Door Harness to Body Harness (48 Cavities) X600 Passenger Door Harness to Body Harness (Coupe) |
| 2. J600 Passenger Door Harness |
| 3. X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness (18 Cavities) X610 Passenger Door Harness to Outside Rearview Mirror Harness |
| 4. X605 Passenger Door Harness to Passenger Door Trim Harness (12 Cavities) (Coupe/A45+DR4) X605 Passenger Door Harness to Passenger Door Trim Harness (Coupe/A45+DR4) |
| 5. X606 Passenger Door Harness to Passenger Door Trim Harness (20 Cavities) X606 Passenger Door Harness to Passenger Door Trim Harness |
| 6. J601 Passenger Door Harness (Coupe) |
