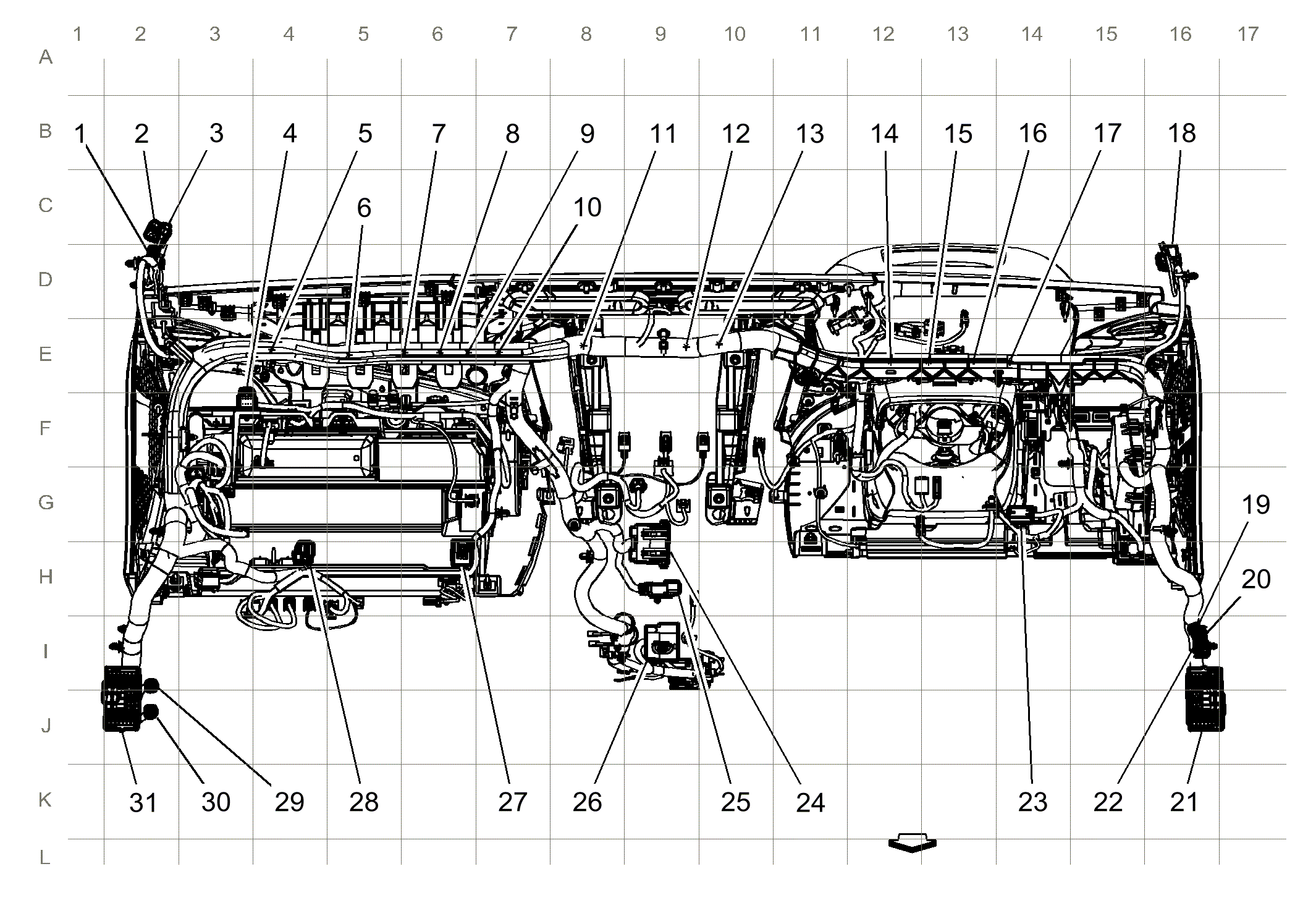

Instrument Panel Harness Routing - Rear of Instrument Panel (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X301 Instrument Panel Harness to Headliner Harness (20 cavities) X301 Instrument Panel Harness to Headliner Harness |
| 2. X303 Instrument Panel Harness COAX to Headliner Harness COAX (1 Cavity) (U2K/U2M) X303 Instrument Panel Harness to Headliner Harness (U2K/U2M) |
| 3. X304 Headliner Harness COAX to Instrument Panel Harness COAX (1 Cavity) (IO6-MAW/UE1) X304 Headliner Harness to Instrument Panel Harness (IO6-MAW/UE1) |
| 4. X235 Media Disc Player Harness to Instrument Panel Harness (8 Cavities) X235 Media Disc Player Harness to Instrument Panel Harness (-WCN)X235 Media Disc Player Harness to Instrument Panel Harness (WCN) |
| 5. J211 Instrument Panel Harness |
| 6. J210 Instrument Panel Harness |
| 7. J209 Instrument Panel Harness |
| 8. J208 Instrument Panel Harness (IO5/IO6) |
| 9. J207 Instrument Panel Harness (DD8/TR6/(UEU-UV6)) |
| 10. J205 Instrument Panel Harness |
| 11. J206 Instrument Panel Harness |
| 12. J204 Instrument Panel Harness |
| 13. J232 Instrument Panel Harness |
| 14. J202 Instrument Panel Harness |
| 15. J201 Instrument Panel Harness |
| 16. X302 Instrument Panel Harness to Headliner Harness (6 cavities) (UGN/UHX) X302 Instrument Panel Harness to Headliner Harness (UGN/UHX) |
| 17. X230 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) (U2Q) X230 Body Harness to Instrument Panel Harness (U2Q) |
| 18. X210 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) (UE1+IO6) X210 Body Harness to Instrument Panel Harness |
| 19. X225 Instrument Panel Harness to Body Harness (102 cavities) X225 Instrument Panel Harness to Body Harness |
| 20. X223 Body Harness LVDS to Instrument Panel Harness LVDS (IO6+MAW) X223 Body Harness to Instrument Panel Harness (Coupe+IO6+MAW) |
| 21. JX200 Instrument Panel Harness JX200 Splice Pack |
| 22. X206 Floor Console Harness to Instrument Panel Harness (26 cavities) X206 Floor Console Harness to Instrument Panel Harness |
| 23. X213 Instrument Panel Harness USB to Floor Console Harness USB X213 Instrument Panel Harness USB to Floor Console Harness USB |
| 24. X211 Floor Console Trim Harness to Instrument Panel Harness (14 cavities) X211 Floor Console Trim Harness to Instrument Panel Harness |
| 25. X224 Instrument Panel Harness to Blower Motor Harness (6 cavities) X224 Instrument Panel Harness to Blower Motor Harness |
| 26. X228 Instrument Panel Harness to HVAC Harness (2 Cavities) X228 Instrument Panel Harness to HVAC Harness |
| 27. X221 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) X221 Body Harness to Instrument Panel Harness |
| 28. X222 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) X222 Body Harness to Instrument Panel Harness |
| 29. X275 Instrument Panel Harness to Body Harness (102 cavities) X275 Instrument Panel Harness to Body Harness |
