Headliner Harness Routing (Coupe-CF5)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

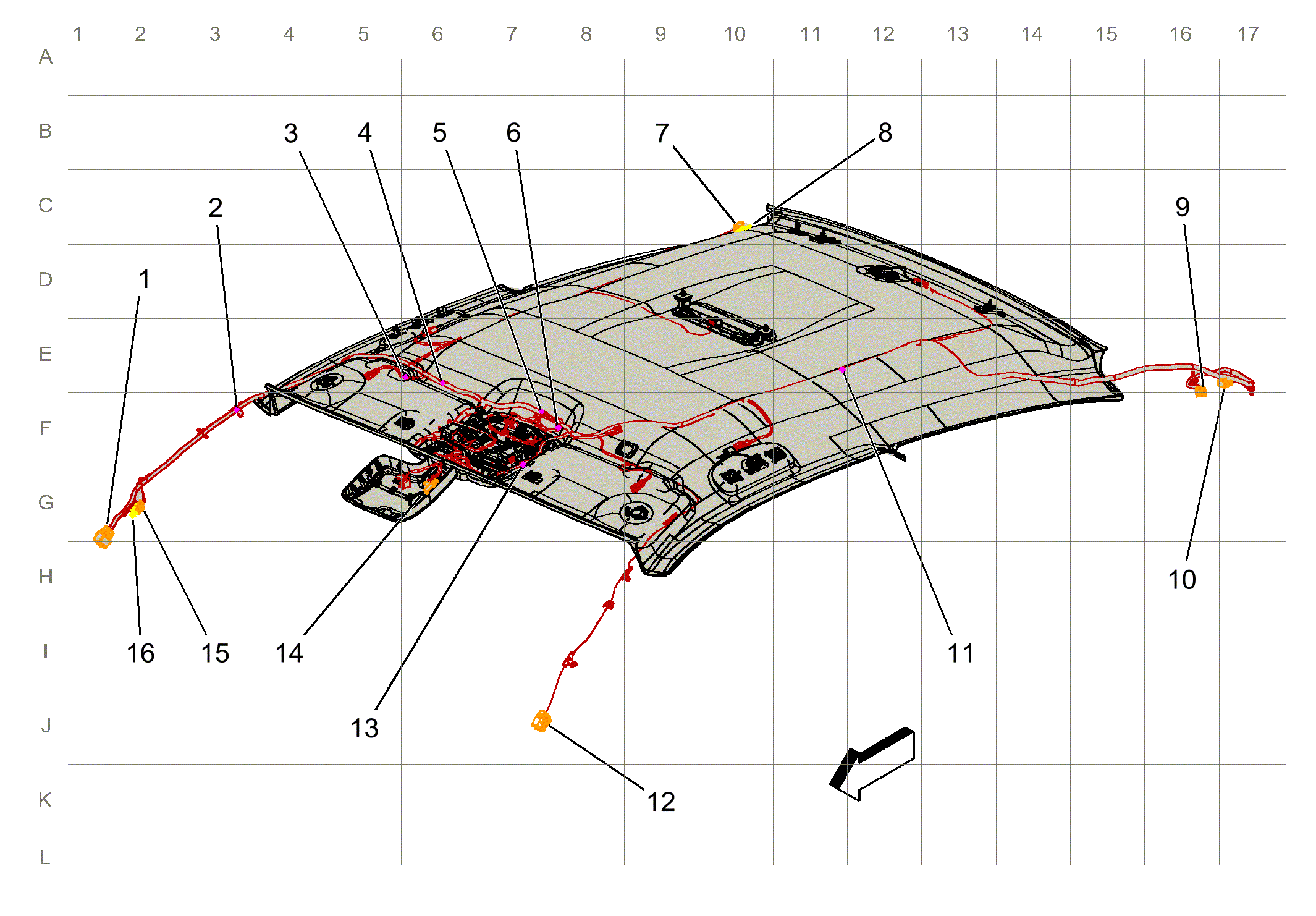

| Items |
|---|
| 1. X301 Instrument Panel Harness to Headliner Harness (20 cavities) X301 Instrument Panel Harness to Headliner Harness |
| 2. J303 Headliner Harness |
| 3. J307 Headliner Harness |
| 4. J304 Headliner Harness |
| 5. J305 Headliner Harness |
| 6. J302 Headliner Harness |
| 7. X308 Roof Antenna Harness COAX to Headliner Harness COAX (1 Cavity) (IO6-UE1) X308 Roof Antenna Harness COAX to Headliner Harness COAX (IO6-UE1) |
| 8. X309 Roof Antenna Harness COAX to Headliner Harness COAX (1 Cavity) (U2K/U2M) X309 Roof Antenna Harness to Headliner Harness (U2K/U2M) |
| 9. X337 Headliner Harness to Body Harness (14 cavities) X337 Headliner Harness to Body Harness |
| 10. X335 Headliner Harness to Body Harness (18 cavities) X335 Headliner Harness to Body Harness |
| 11. J306 Headliner Harness |
| 12. X302 Instrument Panel Harness to Headliner Harness (6 cavities) (UGN/UHX) X302 Instrument Panel Harness to Headliner Harness (UGN/UHX) |
| 13. J301 Headliner Harness |
