Fuel Tank Harness Routing

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

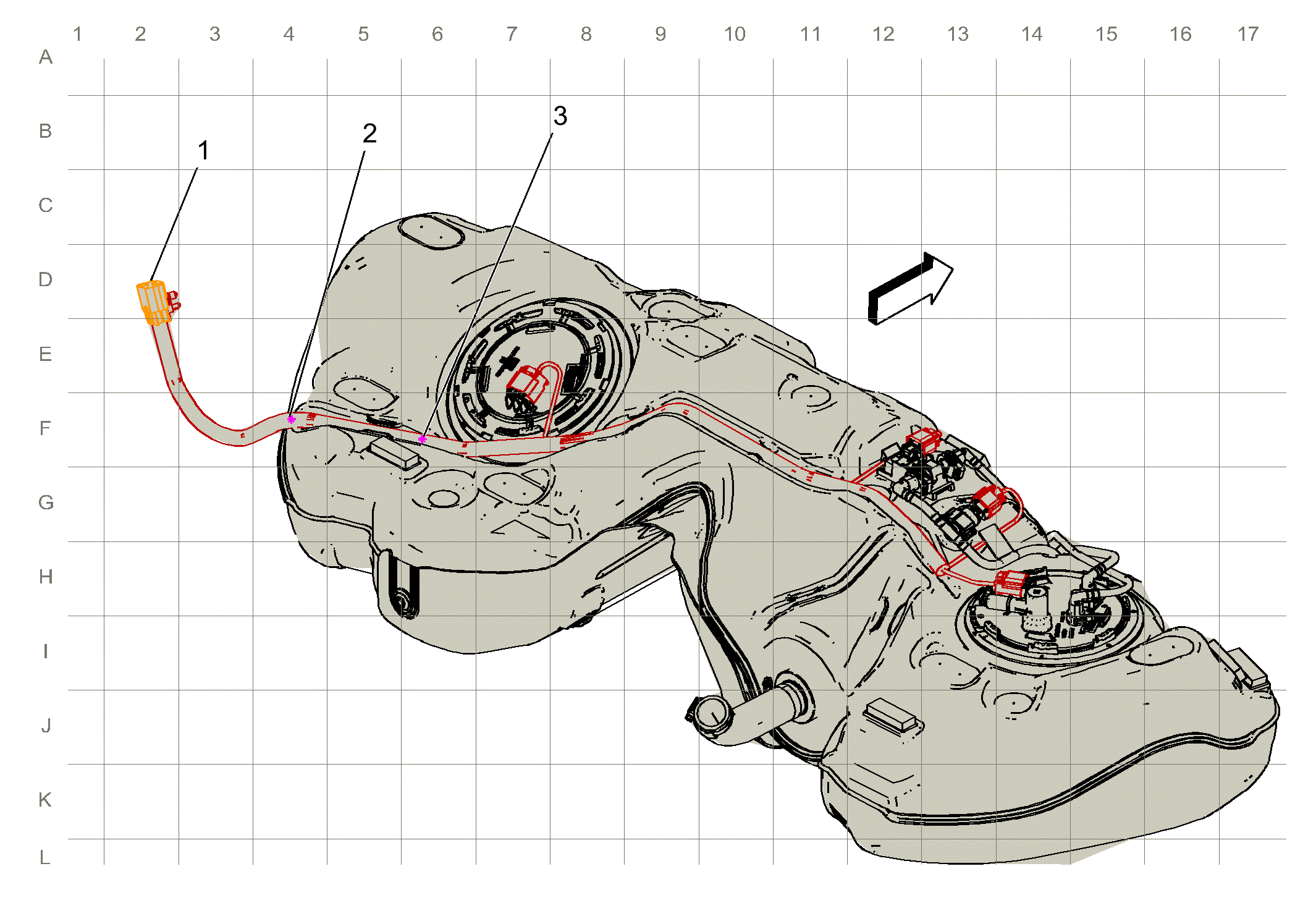

Fig 1: Fuel Tank Harness Routing
GM4055751Courtesy of GENERAL MOTORS COMPANY
Items
1. X350 Body Harness to Fuel Tank Harness (12 cavities) X350 Body Harness to Fuel Tank Harness
2. J411 Fuel Tank
3. J412 Fuel Tank
