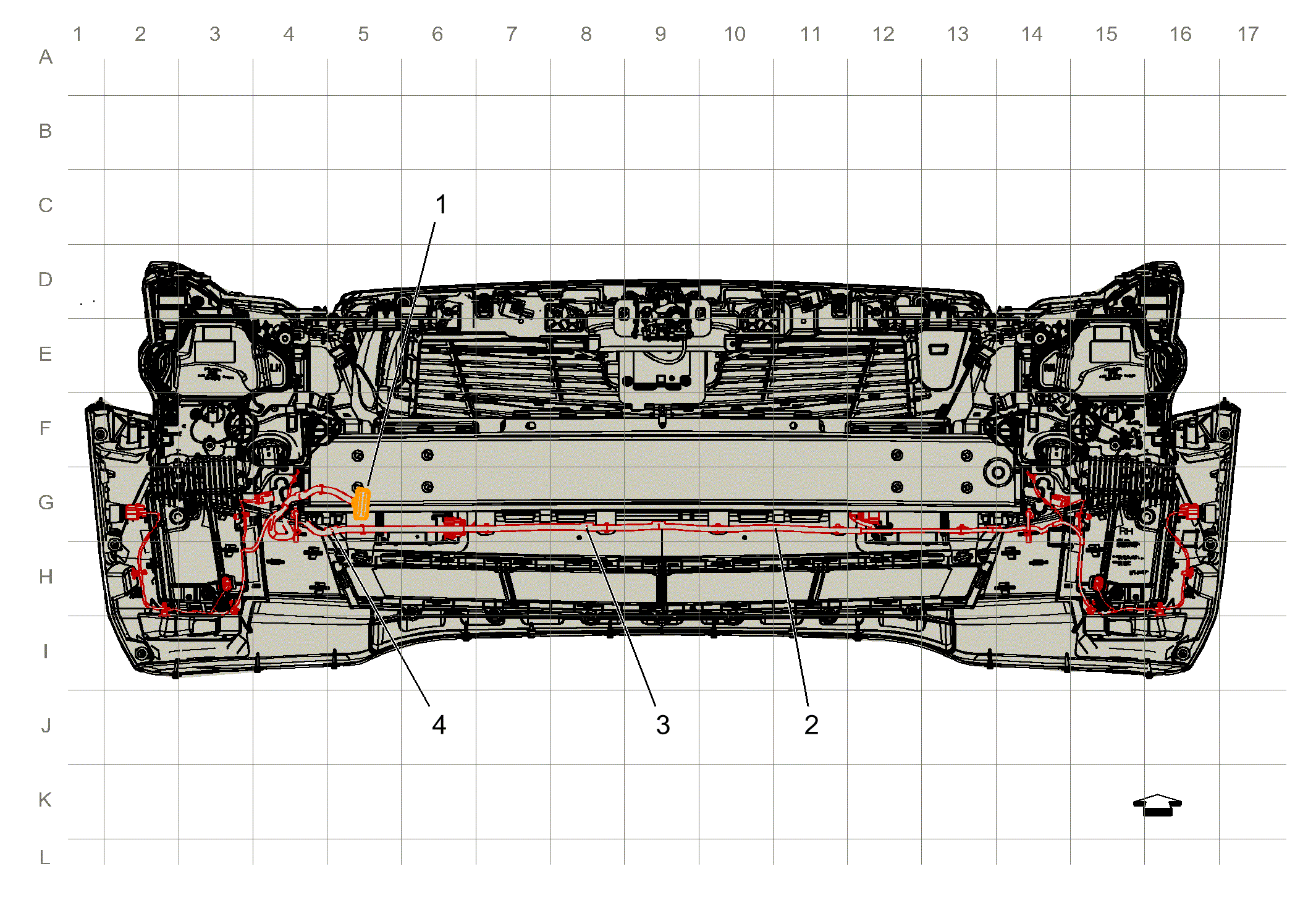

Front Fascia Harness Routing (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J115 Front Fascia Harness (UVZ) |
| 2. X100 Front Fascia Harness to Forward Lamp Harness (20 cavities) X100 Front Fascia Harness to Forward Lamp Harness (B3T)X100 Front Fascia Harness to Forward Lamp Harness (T4F) |
| 3. J110 Front Fascia Harness |
| 4. J111 Front Fascia Harness |
| 5. J112 Front Fascia Harness |
| 6. J113 Front Fascia Harness |
| 7. J114 Front Fascia Harness |
| 8. J116 Front Fascia Harness (TUJ+T4F) |
