Forward Lamp Harness Routing (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

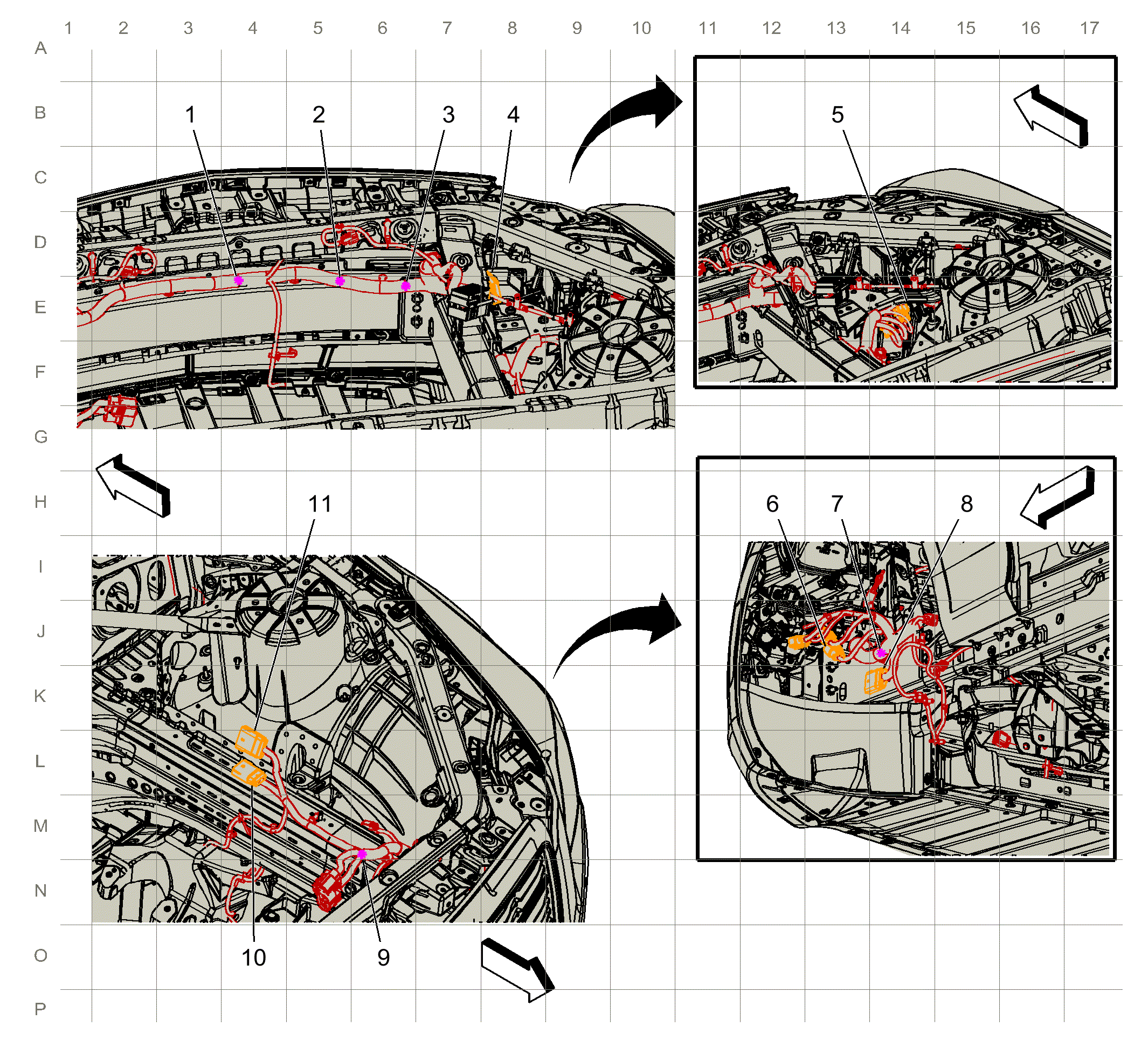

Fig 1: Forward Lamp Harness Routing (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Items
1. J104 Forward Lamp Harness (T4F)
2. J101 Forward Lamp Harness
3. J102 Forward Lamp Harness (T4F)
4. X126 Body Harness to Forward Lamp Harness (20 cavities) X126 Body Harness to Forward Lamp Harness
5. X120 Forward Lamp Harness to Right Headlamp Harness (16 cavities) X120 Forward Lamp Harness to Right Headlamp Harness (T4F+T94)X120 Forward Lamp Harness to Right Headlamp Harness (T4F+TUJ)X120 Forward Lamp Harness to Right Headlamp Harness (T4F-(T94/TUJ))X120 Forward Lamp Harness to Right Headlamp Harness (TR6)X120 Forward Lamp Harness to Right Headlamp Harness (TUJ-T4F)
6. X110 Forward Lamp Harness to Left Headlamp Harness (16 cavities) X110 Forward Lamp Harness to Left Headlamp Harness (T4F+T94)X110 Forward Lamp Harness to Left Headlamp Harness (T4F+TUJ)X110 Forward Lamp Harness to Left Headlamp Harness (T4F-(T94/TUJ))X110 Forward Lamp Harness to Left Headlamp Harness (TR6)X110 Forward Lamp Harness to Left Headlamp Harness (TUJ-T4F)
7. J107 Forward Lamp Harness (TUJ-T4F)
8. X100 Front Fascia Harness to Forward Lamp Harness (20 cavities) X100 Front Fascia Harness to Forward Lamp Harness (B3T)X100 Front Fascia Harness to Forward Lamp Harness (T4F)
9. J106 Forward Lamp Harness (UVZ)
10. X127 Body Harness to Forward Lamp Harness (16 cavities) (B3T/FE3/F55/TR6/TR7) X127 Body Harness to Forward Lamp Harness (B3T/F55/TR6/TR7)
11. X125 Body Harness to Forward Lamp Harness (20 cavities) X125 Body Harness to Forward Lamp Harness (Coupe)
