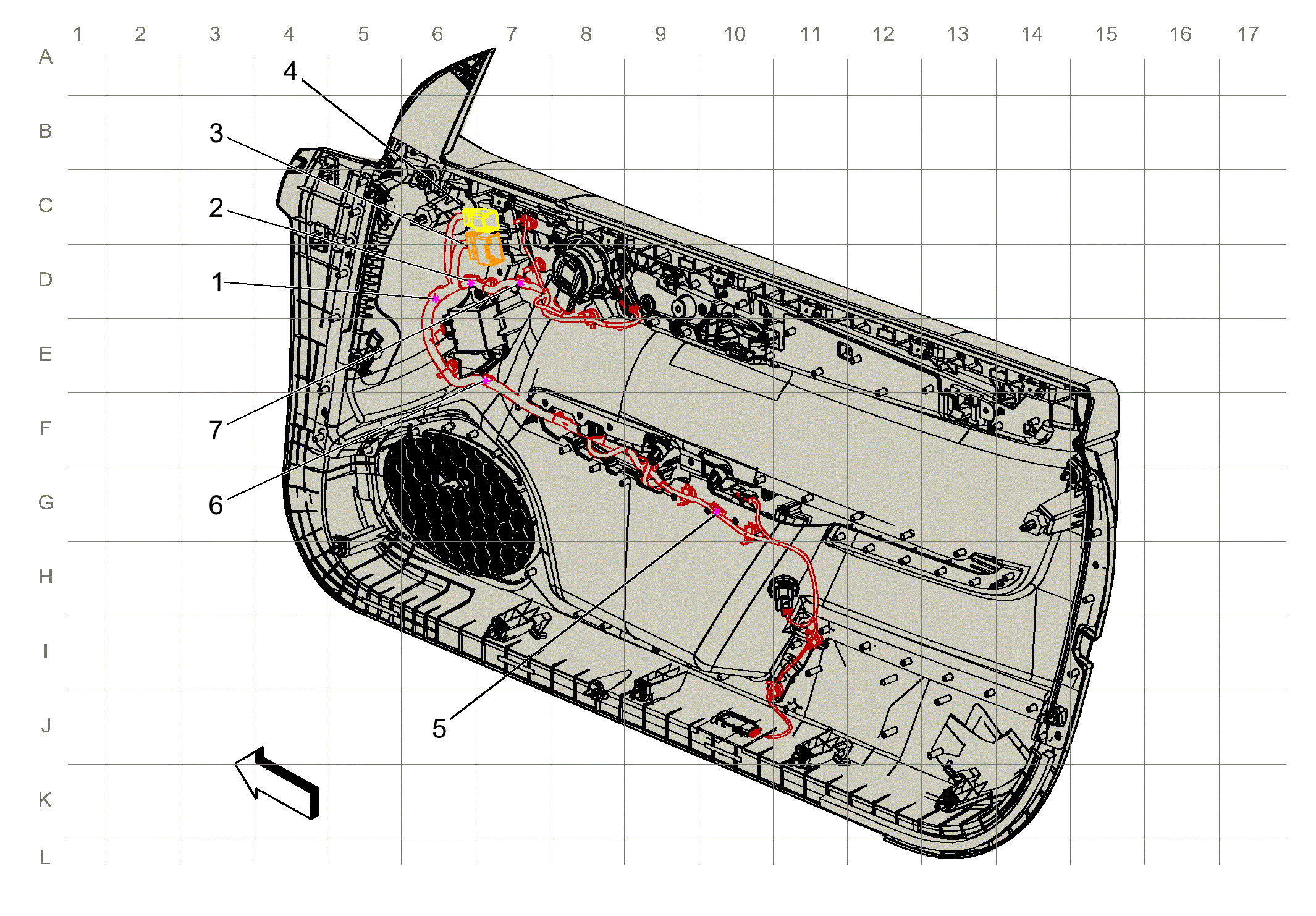

Driver Door Trim Harness Routing (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J507 Driver Door Trim Harness |
| 2. J506 Driver Door Trim Harness |
| 3. X505 Driver Door Harness to Driver Door Trim Harness (20 Cavities) X505 Driver Door Harness to Driver Door Trim Harness |
| 4. X506 Driver Door Harness to Driver Door Trim Harness (12 Cavities) X506 Driver Door Harness to Driver Door Trim Harness |
| 5. J508 Driver Door Trim Harness |
| 6. J509 Driver Door Trim Harness |
| 7. J505 Driver Door Trim Harness |
