Body Harness Routing - Left Front of Passenger Compartment (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

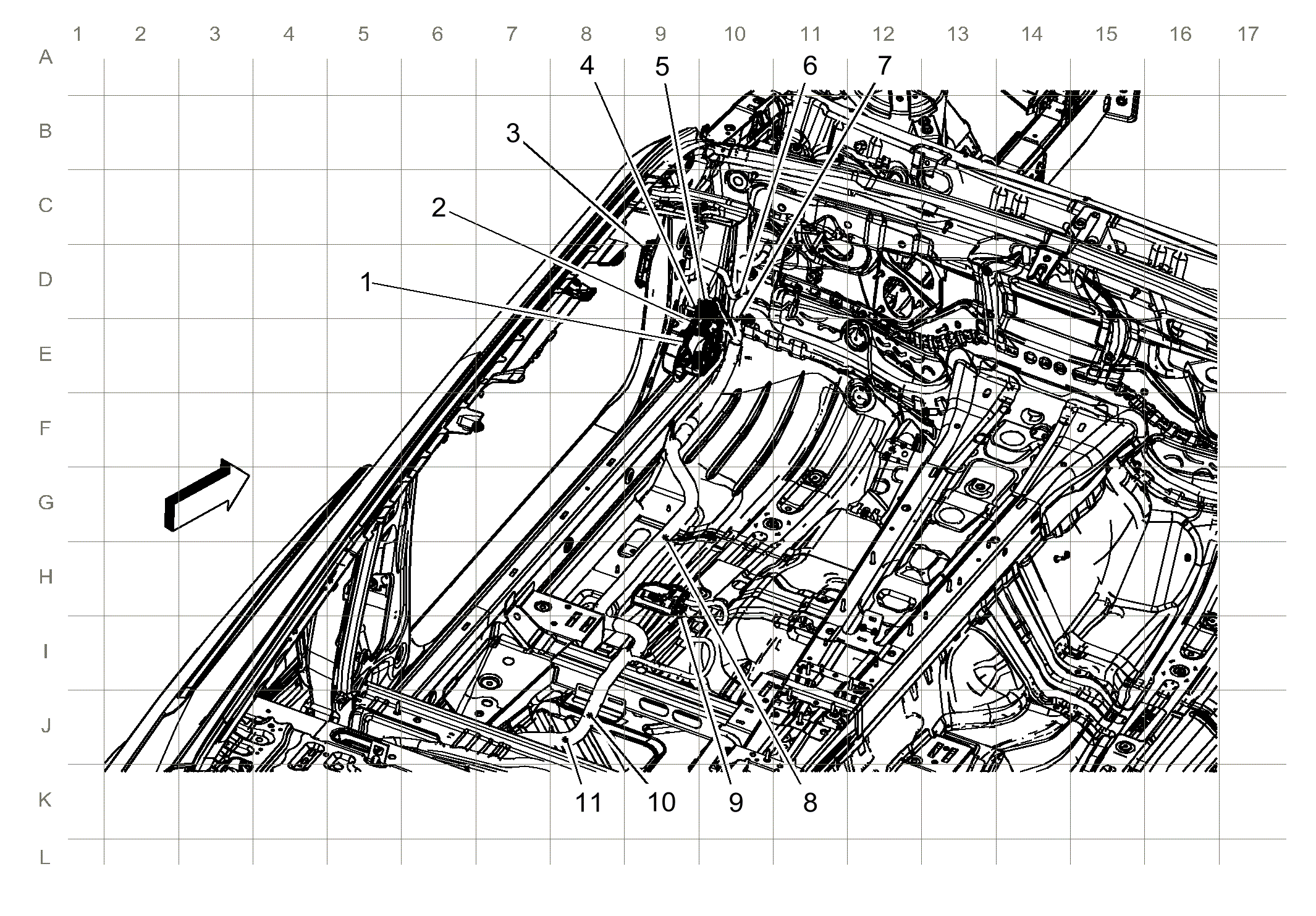

| Items |
|---|
| 1. X225 Instrument Panel Harness to Body Harness (102 cavities) X225 Instrument Panel Harness to Body Harness |
| 2. X223 Body Harness LVDS to Instrument Panel Harness LVDS (IO6+MAW) X223 Body Harness to Instrument Panel Harness (Coupe+IO6+MAW) |
| 3. X500 Driver Door Harness to Body Harness (48 Cavities) X500 Driver Door Harness to Body Harness (Coupe) |
| 4. X230 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) (U2Q) X230 Body Harness to Instrument Panel Harness (U2Q) |
| 5. X210 Body Harness COAX to Instrument Panel Harness COAX (1 Cavity) (UE1+IO6) X210 Body Harness to Instrument Panel Harness |
| 6. J225 Body Harness |
| 7. J226 Body Harness |
| 8. J338 Body Harness (Coupe/A45) |
| 9. X310 Body Harness to Driver Seat Harness (42 cavities) X310 Body Harness to Driver Seat Harness |
| 10. J349 Body Harness |
| 11. J350 Body Harness (Coupe) |
