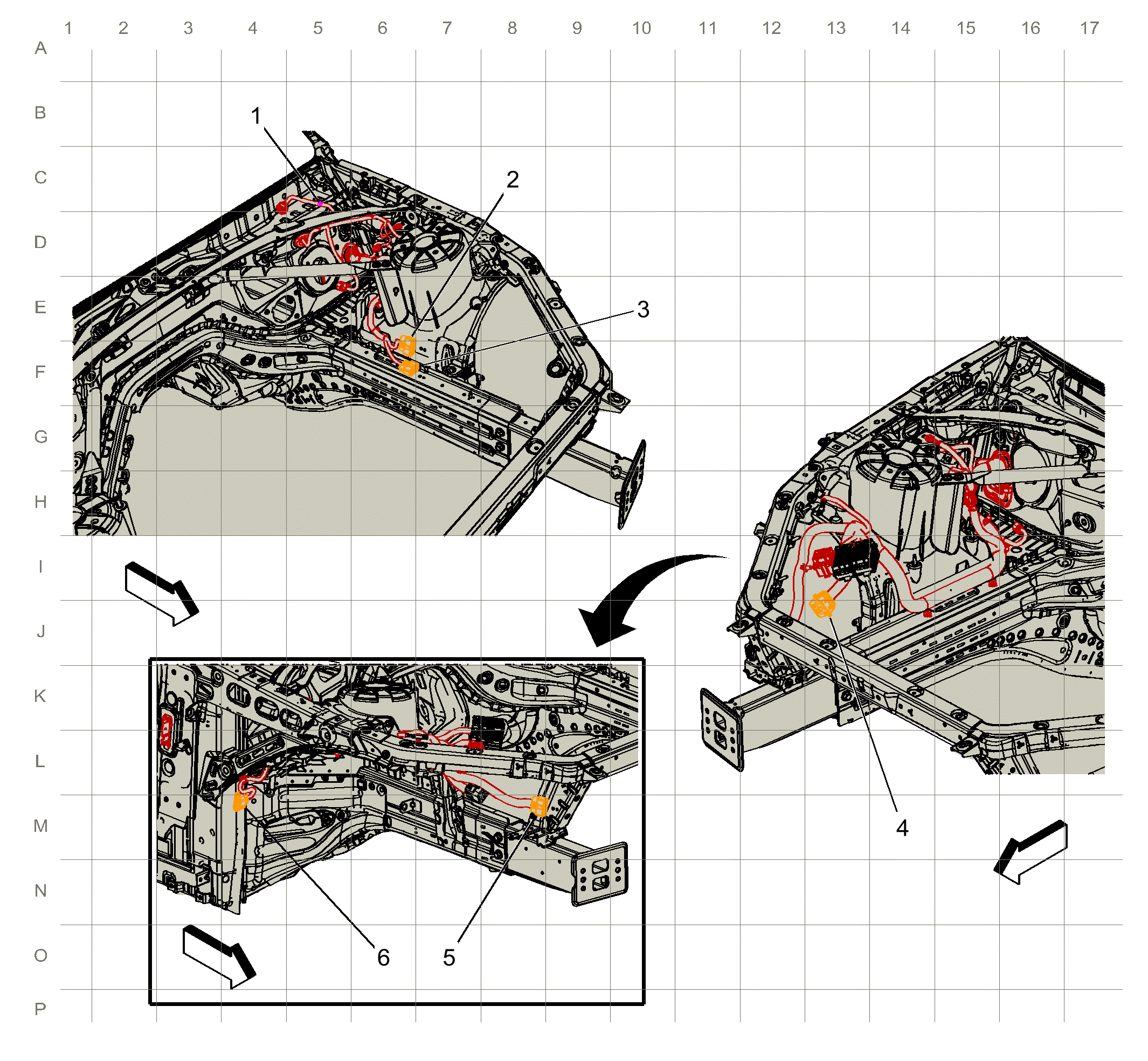

Body Harness Routing - Engine Compartment (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J150 Body Harness |
| 2. X125 Body Harness to Forward Lamp Harness (20 cavities) X125 Body Harness to Forward Lamp Harness (Coupe) |
| 3. X127 Body Harness to Forward Lamp Harness (16 cavities) (B3T/FE3/F55/TR6/TR7) X127 Body Harness to Forward Lamp Harness (B3T/F55/TR6/TR7) |
| 4. X150 Body Harness to Engine (54 cavities) X150 Body Harness to Engine Harness |
| 5. X126 Body Harness to Forward Lamp Harness (20 cavities) X126 Body Harness to Forward Lamp Harness |
| 6. X130 Body Harness to Washer Fluid Reservoir Harness (6 cavities) X130 Body Harness to Washer Fluid Reservoir Harness (-CE4)X130 Body Harness to Washer Fluid Reservoir Harness (CE4) |
