Front Wheel Drive Intermediate Shaft Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

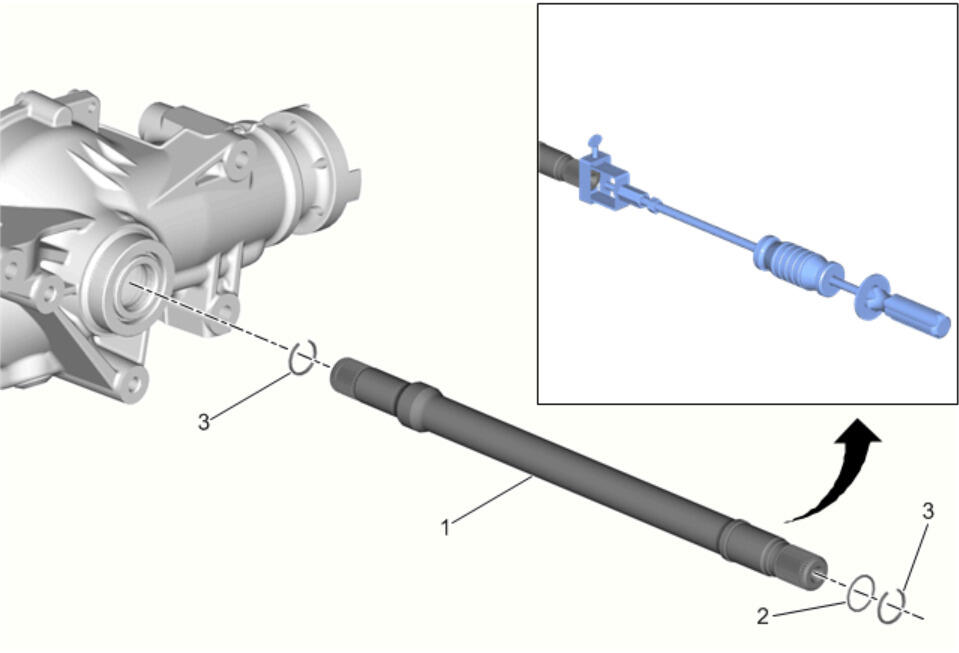

Fig 1: Front Wheel Drive Intermediate Shaft
GM4234084Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
  2. Removal the differential carrier assembly. Refer to Front Differential Carrier Assembly Replacement (LGX or LF4) Front Differential Carrier Assembly Replacement (LCV or LTG) .
1 Front Wheel Drive Intermediate Shaft

Procedure

  1. Attach the J-44467  output shaft assembly remover/installer to the shaft.
  2. Attache the GE-6125-1B  slide hammer to the J-44467  output shaft assembly remover/installer.
  3. Using the tools remove the shaft from the front drive unit.

Special Tools

  • J-44467  Output Shaft Assembly Remover/Installer
  • GE-6125-1B  Slide Hammer
2 Front Wheel Drive Intermediate Shaft Seal
NOTE:

Use a NEW O-ring seal.
3 Front Wheel Drive Intermediate Shaft Retaining Ring
NOTE:

Use a NEW retaining ring.
