Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
  2. Remove the left front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Left Side .
    3. Fig 1: Wheel Drive Shaft Retaining Ring & O-ring
    GM2851659Courtesy of GENERAL MOTORS COMPANY
  3. Remove and discard the intermediate wheel drive shaft retaining ring (1) and the O-ring (2).
  4. If applicable, remove transmission cooler line, harness bolt, and bracket. Refer to Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LCV Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With AWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With RWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LCV With V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With RWD, With V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With AWD, With V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 With MG9)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 With M5U)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGX With RWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGX With AWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGX With RWD, With V03) .

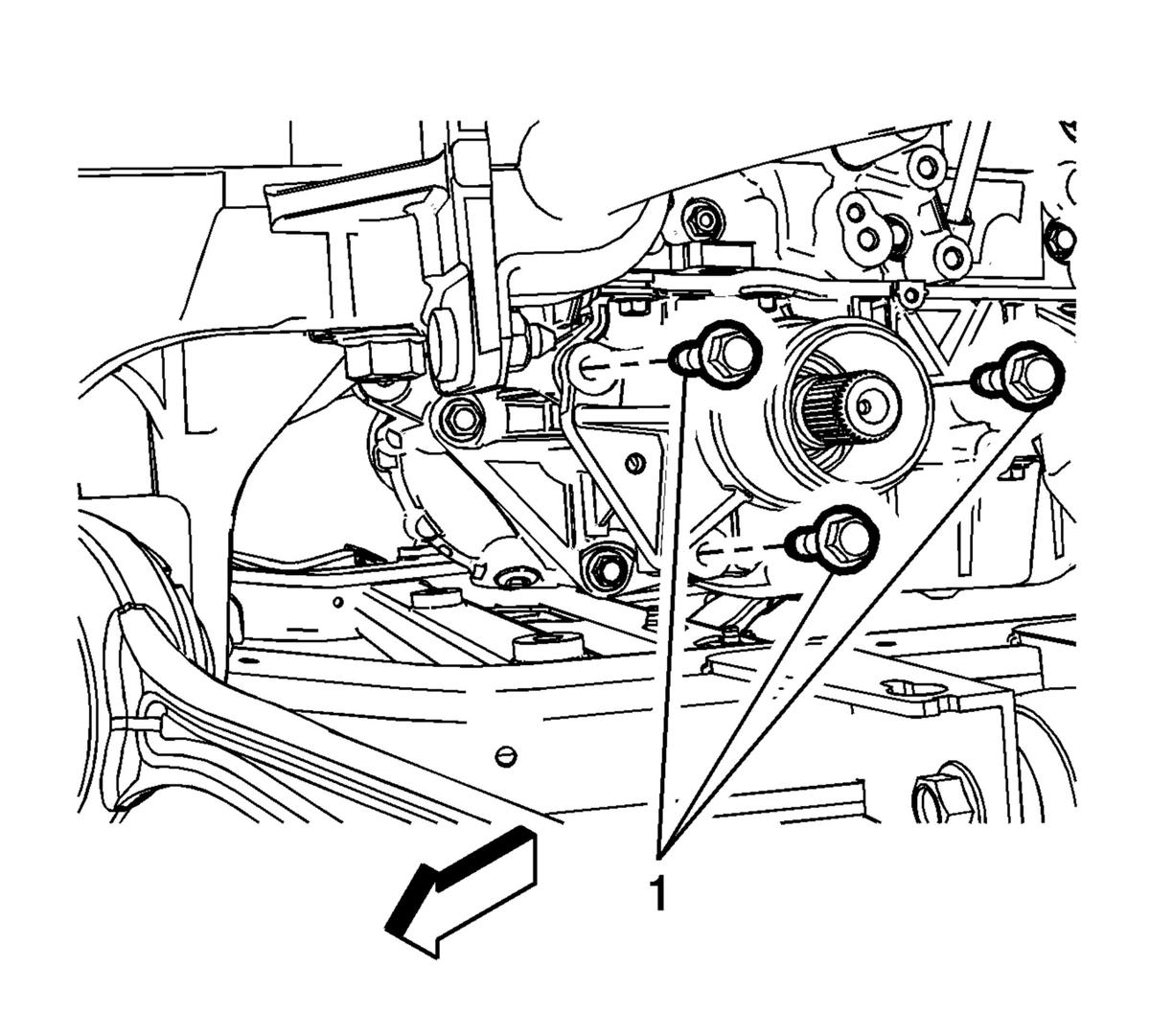

    5. Fig 2: Intermediate Shaft Housing Assembly Mounting Bolts
    GM2851664Courtesy of GENERAL MOTORS COMPANY
  5. Remove the intermediate shaft housing assembly mounting bolts (1).

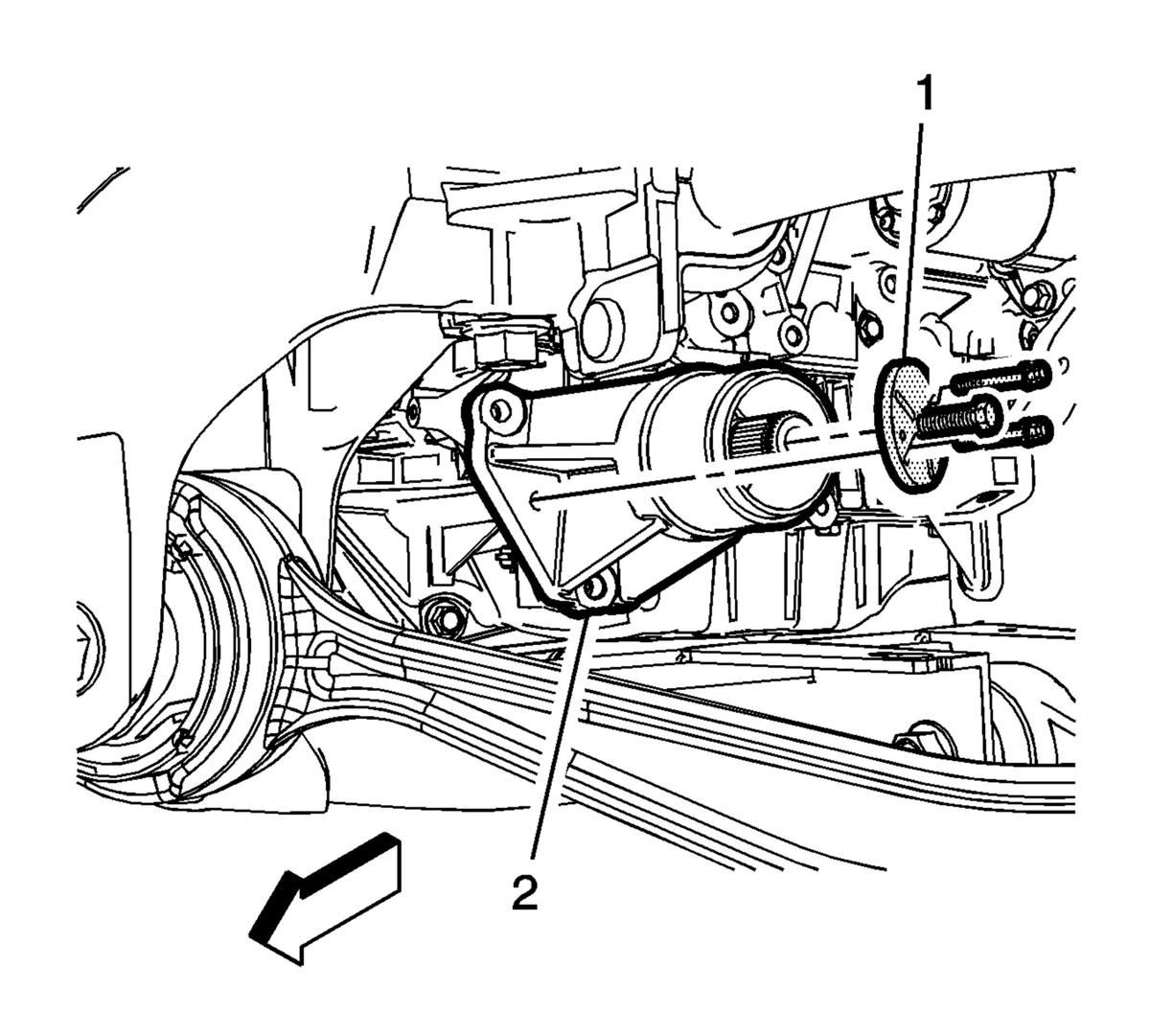

    6. Fig 3: Using Special Tool To Remove Intermediate Shaft Housing Assembly
    GM2851667Courtesy of GENERAL MOTORS COMPANY
  6. Install J 45019  remover (1) into the threaded holes in the intermediate shaft housing assembly (2).
  7. Using the J 45019  remover, remove the intermediate shaft housing assembly.
  8. Remove J 45019  remover from the intermediate shaft housing.
    9. NOTE:

    The intermediate shaft bearing is not serviced separately. If the bearing is worn or damaged, replace the housing assembly.

  9. Thoroughly clean and inspect the intermediate shaft housing for damage, if damaged replace the intermediate shaft housing.
