Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

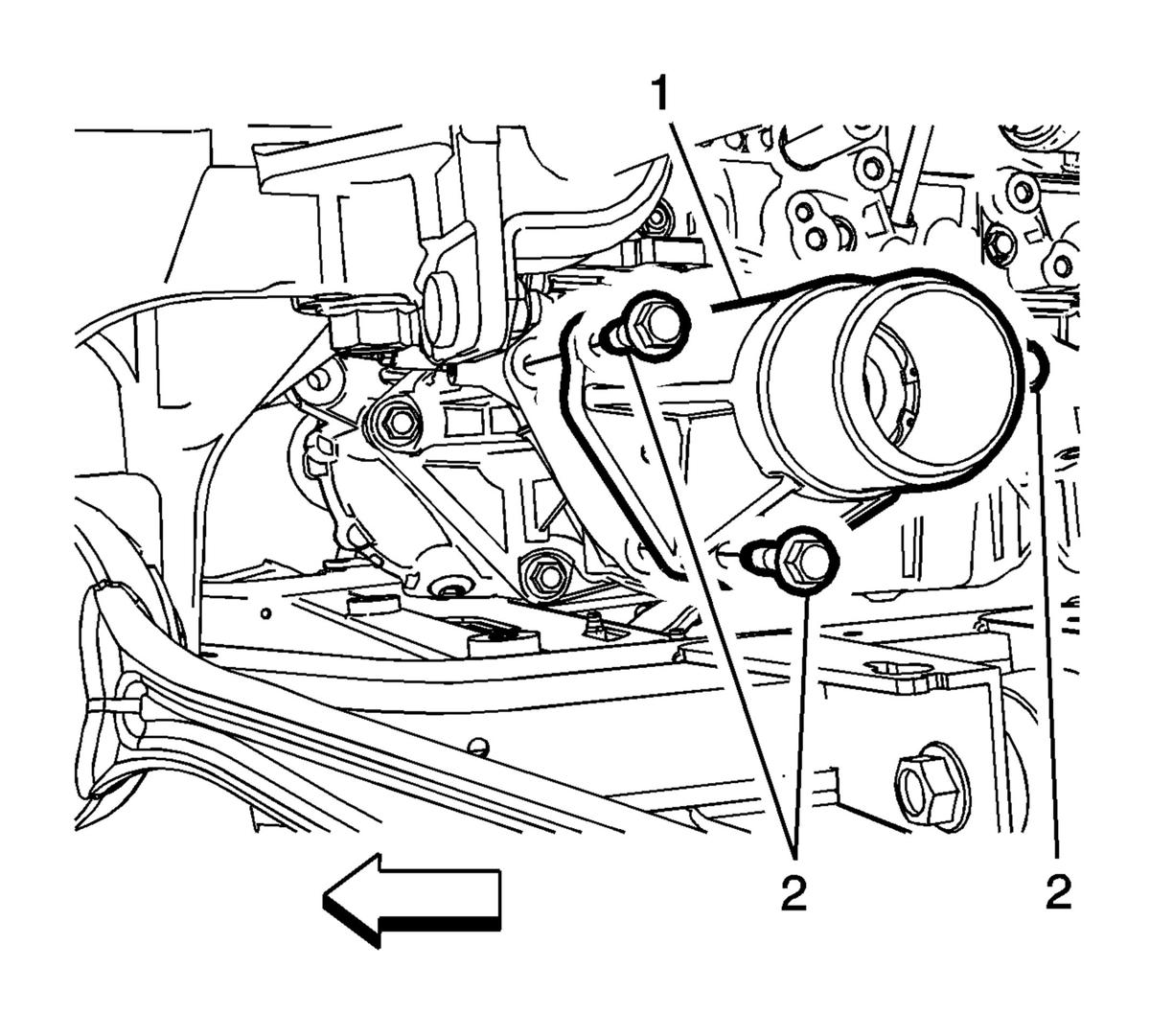

- Install the intermediate shaft housing assembly (1) to the intermediate wheel drive shaft.
- Install the intermediate shaft housing mounting bolts (2) to the oil pan. Tighten the intermediate shaft housing assembly mounting bolts to 58 N.m (43 lb ft).
- Apply a small amount of lubricant to the intermediate wheel drive shaft splines. Refer to Adhesives, Fluids, Lubricants, and Sealers .

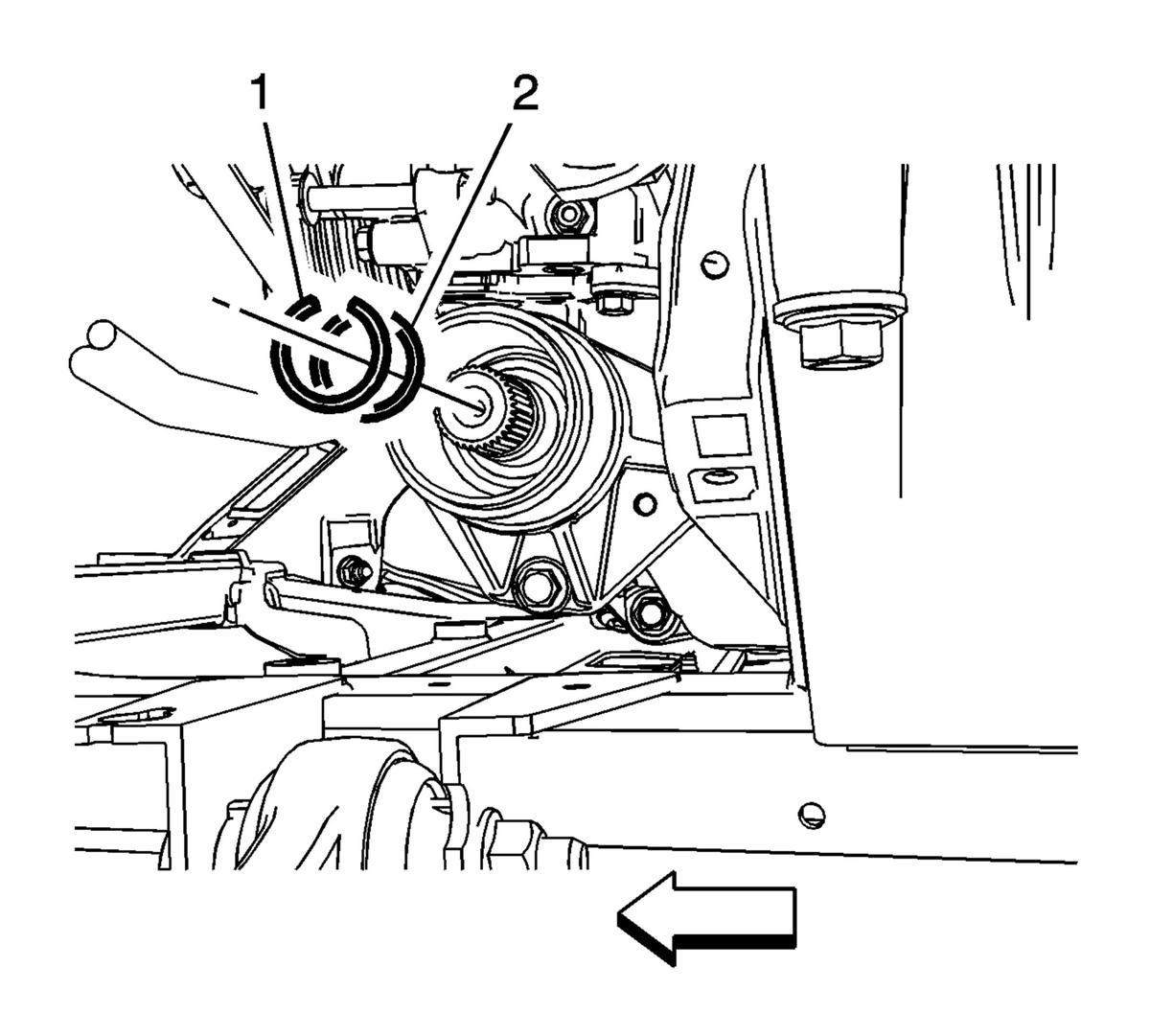

- Install a new O-ring (2) and the new wheel drive shaft retaining ring (1).
- If applicable, install the transmission cooler line, harness bolt, and bracket. Refer to Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LCV Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With AWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With RWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LCV With V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With RWD, With V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With AWD, With V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 With MG9)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 With M5U)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGX With RWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGX With AWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGX With RWD, With V03) .
- Install the left front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Left Side .
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
