Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the front differential carrier. Refer to Front Axle Lubricant Replacement .
  2. Remove the right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side .
  3. Lower the drivetrain and front suspension frame enough to access the carrier side cover bolts. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LF4)Drivetrain and Front Suspension Frame Removal and Installation (LGX, LTG) .

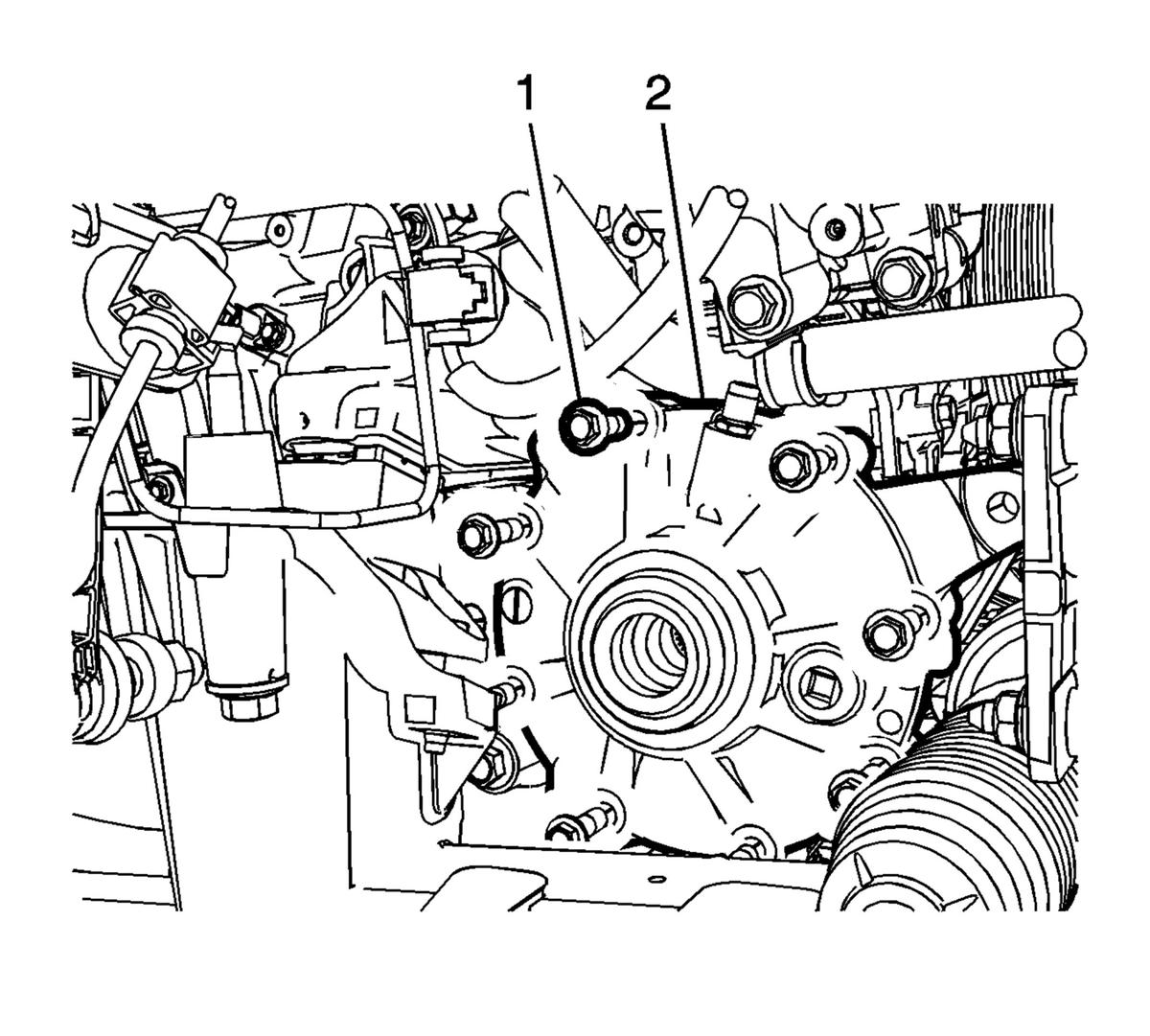

    4. Fig 1: Carrier Side Cover & Bolts
    GM2857150Courtesy of GENERAL MOTORS COMPANY
  4. Remove the carrier side cover bolts (1).
  5. Using the appropriate tool in the pry tabs, remove the carrier side cover (2).

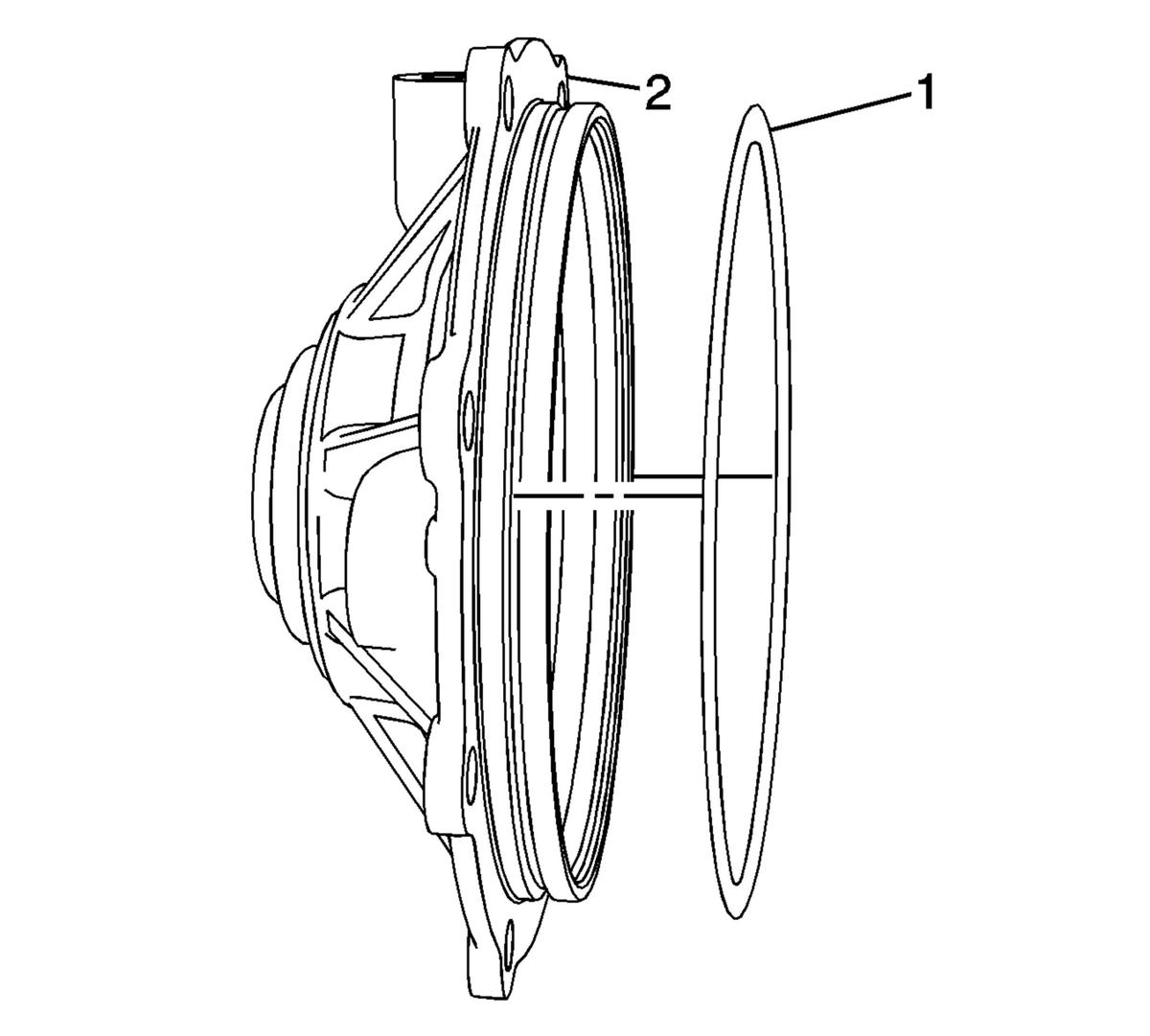

    6. Fig 2: Carrier Side Cover & O-ring
    GM2857153Courtesy of GENERAL MOTORS COMPANY
  6. Remove the O-ring (1) from the carrier side cover (2).
