Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
  2. Remove the right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side .

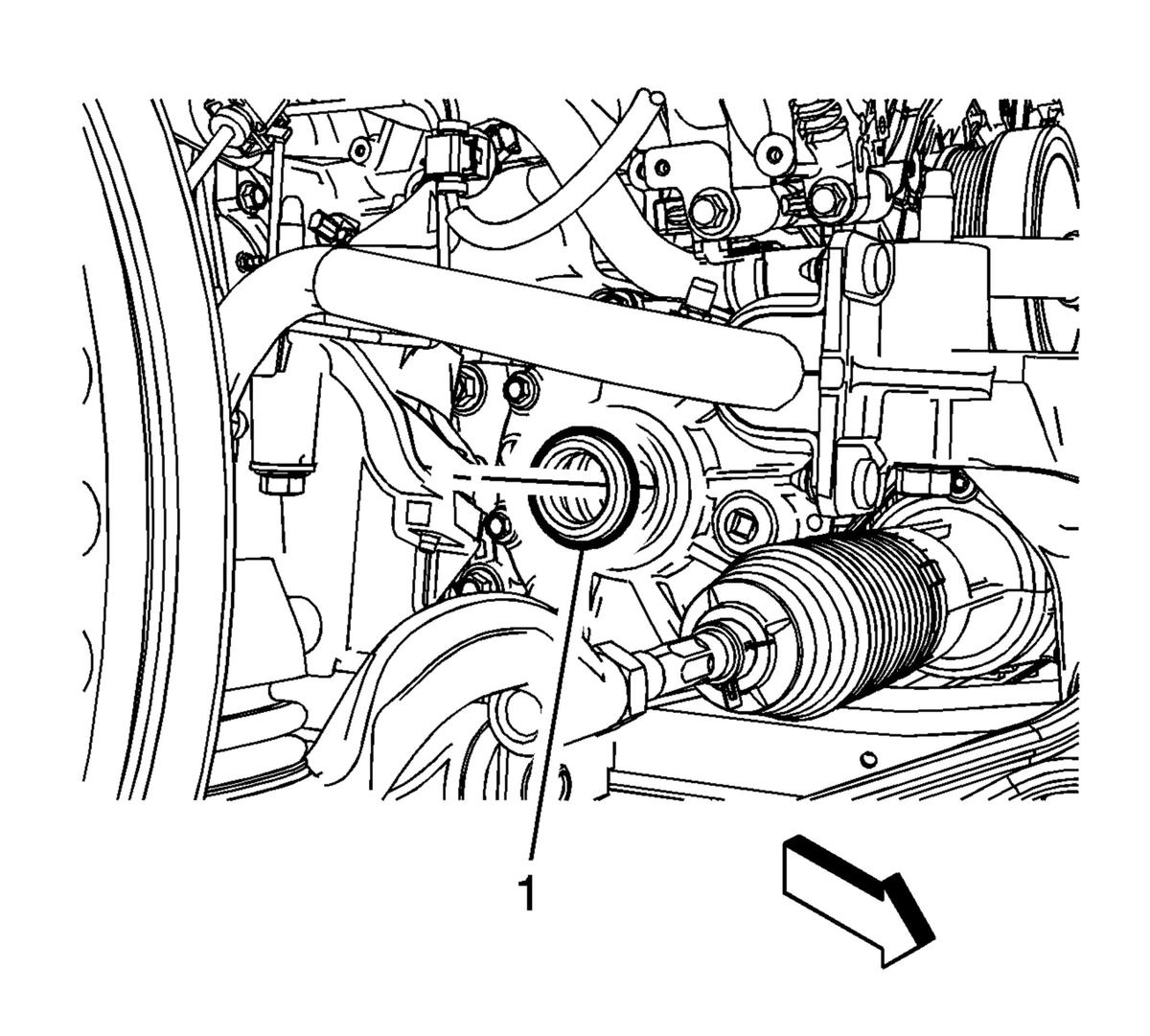

    3. Fig 1: Right Differential Output Shaft Seal
    GM2852011Courtesy of GENERAL MOTORS COMPANY
  3. Using a flat-bladed tool, remove the right differential output shaft seal (1).
