Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front differential carrier from the vehicle. Refer to Front Differential Carrier Assembly Replacement (LGX or LF4) Front Differential Carrier Assembly Replacement (LCV or LTG) .

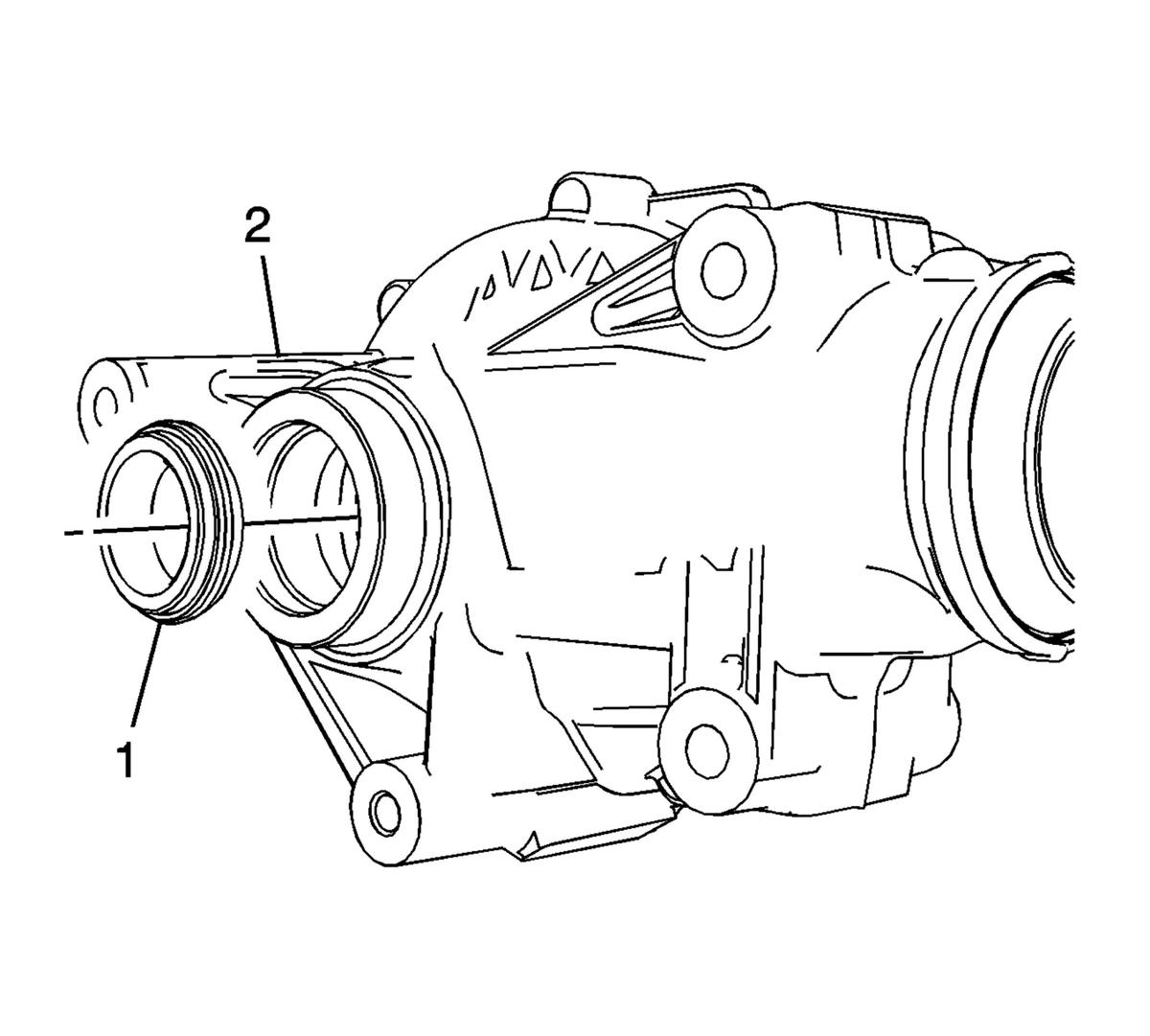

    2. Fig 1: Left Output Shaft Oil Seal & Carrier
    GM2852021Courtesy of GENERAL MOTORS COMPANY
  2. Using a suitable tool, remove the left output shaft oil seal (1) from the carrier (2).
