Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Apply approximately 0.09-0.15 g (0.003-0.005 oz) of anti-seize lubricant to each end of the disc brake pad abutments (1) which contact the brake caliper. Adhesives, Fluids, Lubricants, and Sealers
- Inspect the brake caliper pins and brake pad springs for damage or excessive corrosion and replace, if necessary.

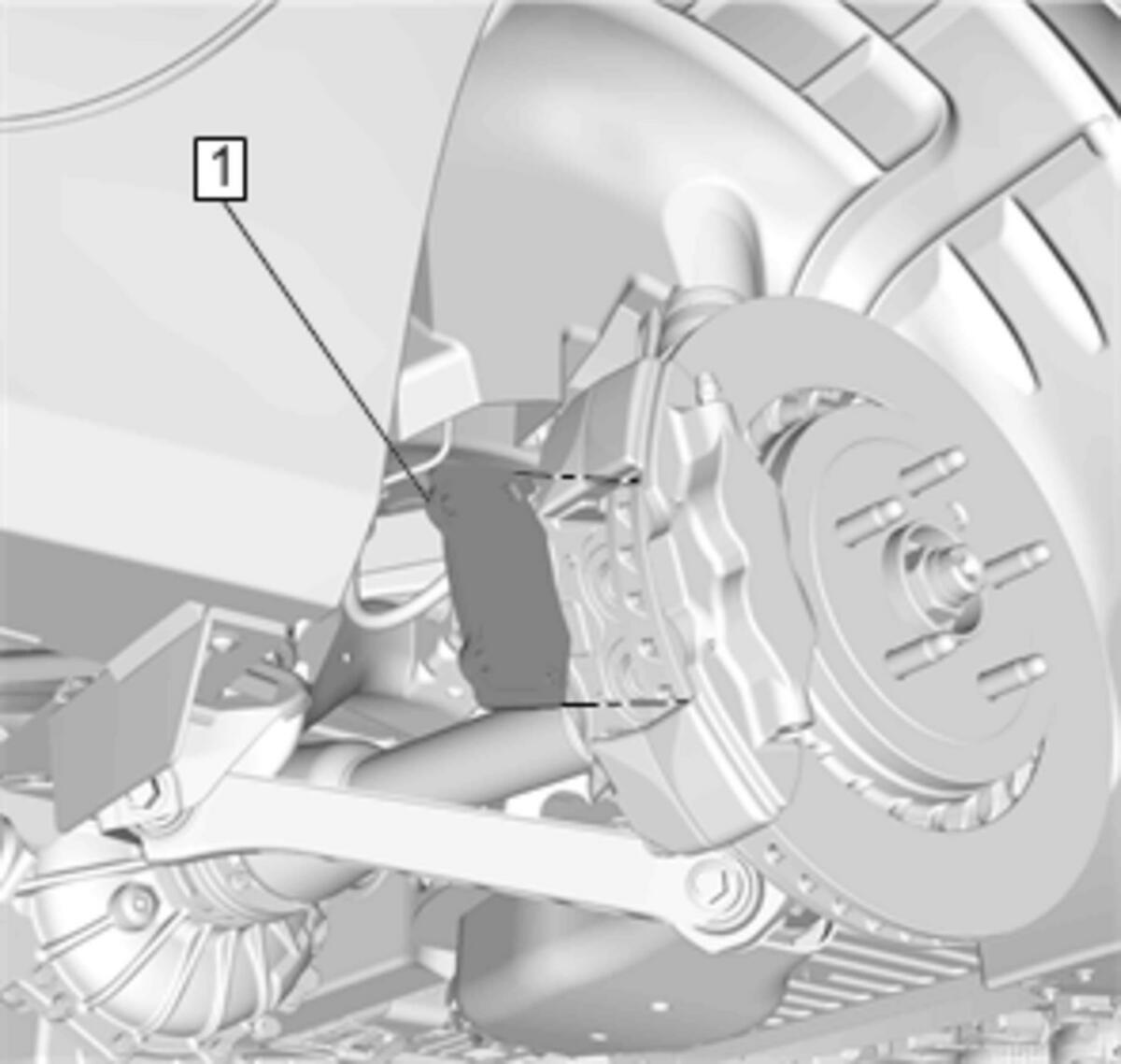

- Install Outer Disc Brake Pad (1)

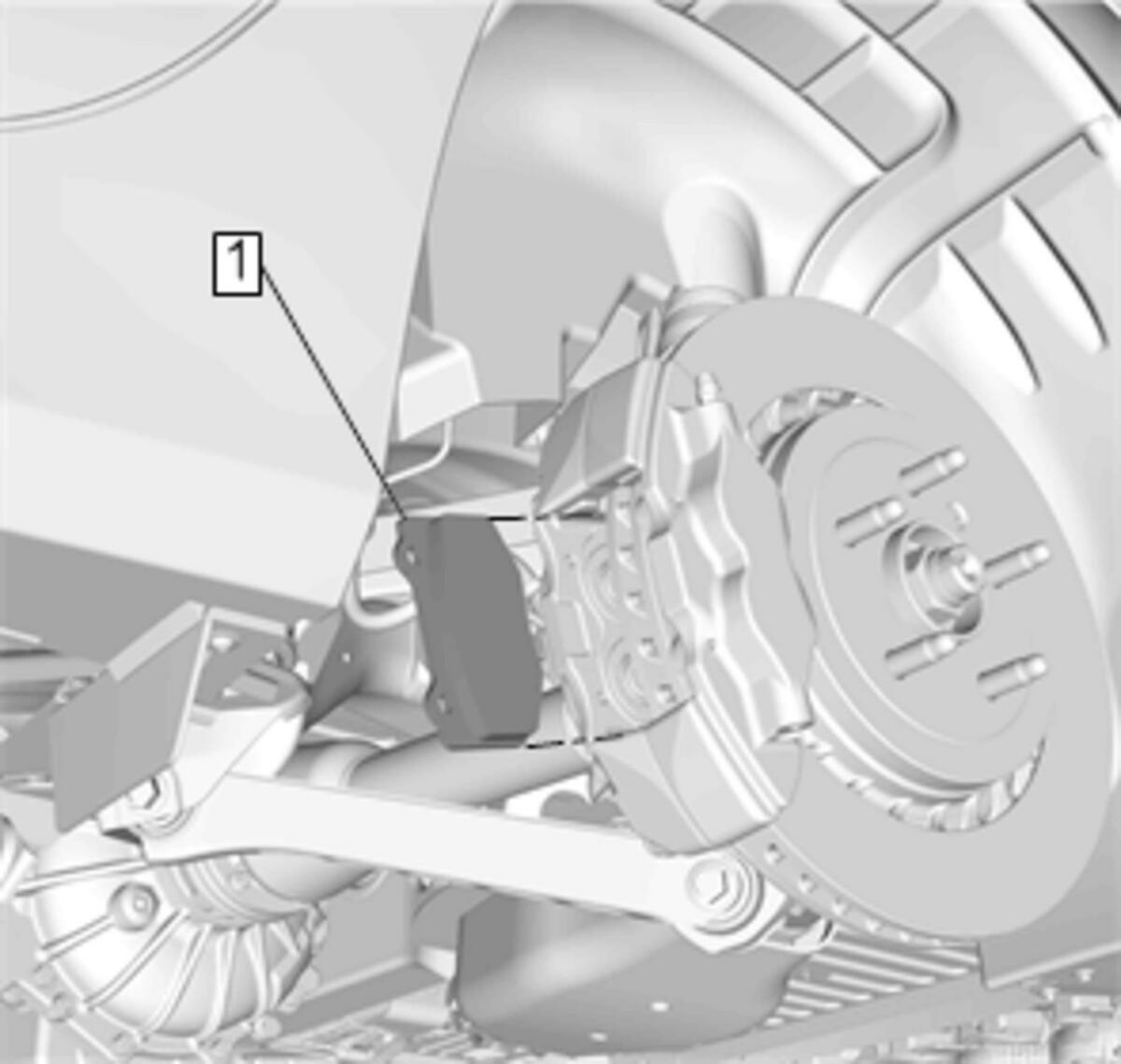

- Install Inner Disc Brake Pad (1)
- Install Disc Brake Pad Spring (1)
- Install Brake Pad Guide Pin (1)
- Ensure the brake pad guide pins are fully seated in the brake caliper.
- Install Tire and Wheel.Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then repeat steps 8-9 until a firm brake pedal apply is obtained; this will properly seat the brake caliper pistons and brake pads.
- Fill the master cylinder reservoir. Master Cylinder Reservoir Filling
- Burnish the brake pads and rotors. Brake Pad and Rotor Burnishing
NOTE:
Do not allow the anti-seize lubricant to contact the disc brake pad friction surfaces.
