Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

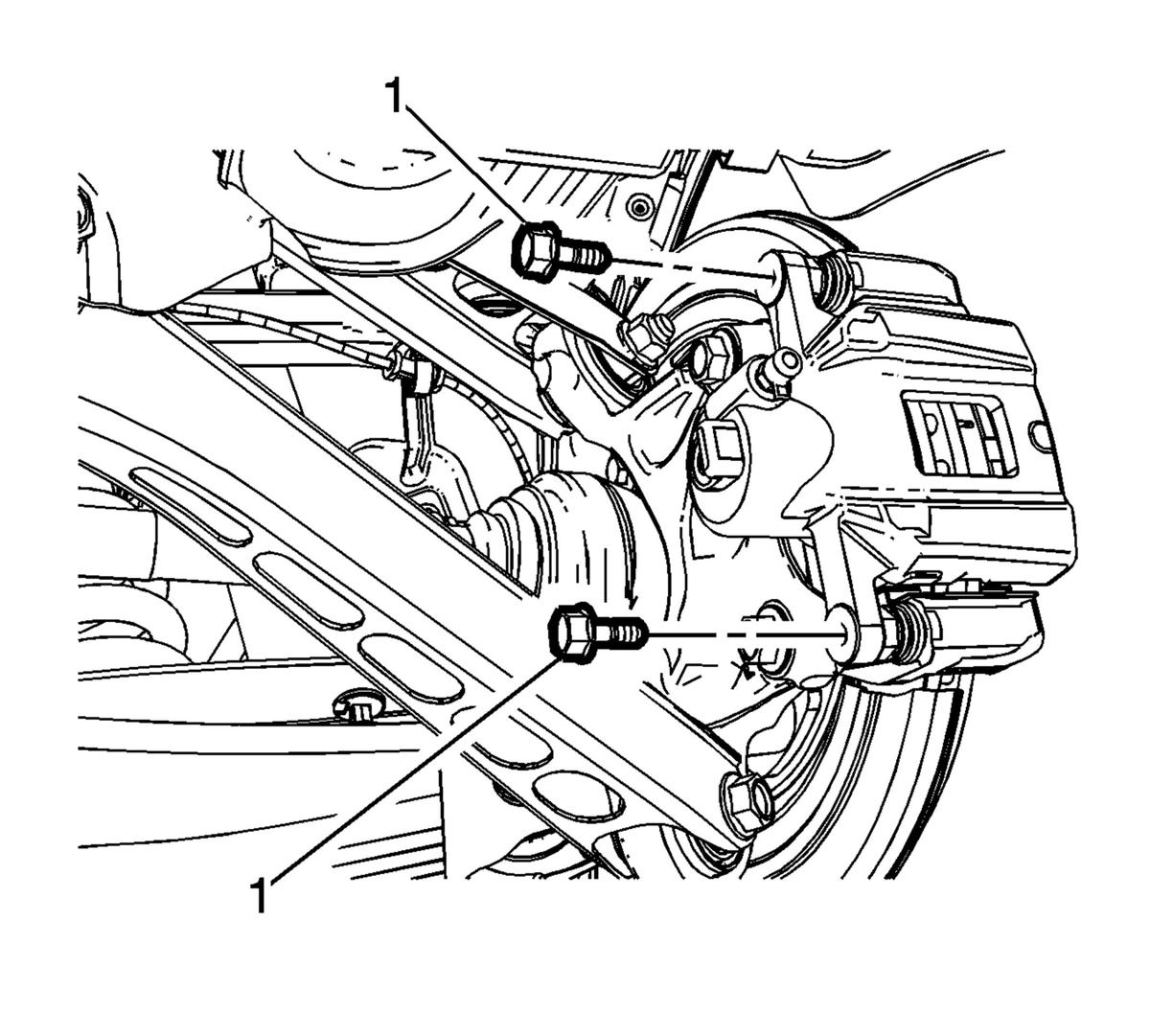

    Fig 1: Caliper Bolts
    GM2811320Courtesy of GENERAL MOTORS COMPANY
  1. Install the brake caliper.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Using a backup wrench to hold the brake caliper guide pin stationary, install the brake caliper guide pin bolts (1) and tighten to 36 N.m (27 lb ft).
    3. Fig 2: Brake Hose Fitting Bolt
    GM2811319Courtesy of GENERAL MOTORS COMPANY
  3. Assemble the brake hose fitting bolt (1) and the 2 new brake hose fitting gaskets (2) to the brake hose fitting (3).
  4. Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 49 N.m (36 lb ft).
  5. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)Hydraulic Brake System Bleeding (Pressure) .
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .
