Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the brake caliper guide pins, seals and brake pad springs for damage and/or corrosion. Refer to Rear Disc Brake Mounting and Hardware Inspection .

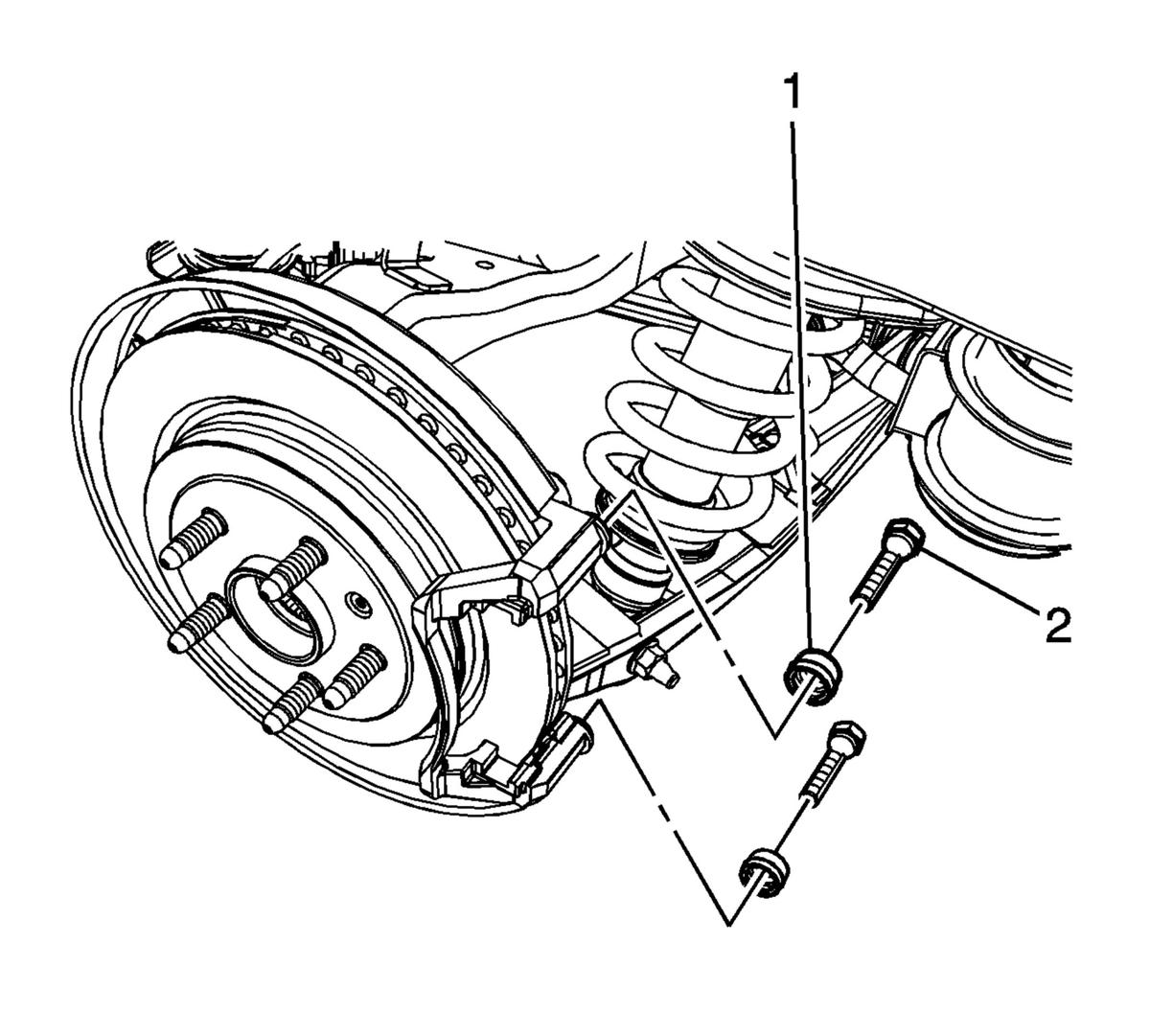

    2. Fig 1: Brake Caliper Guide Pins & Seals
    GM2202533Courtesy of GENERAL MOTORS COMPANY
  2. Apply a thin coat of high temperature silicone brake lubricant the brake caliper guide pins.
  3. Install the 2 brake caliper guide pin seals (1) to the guide pins (2).
  4. Ensure the guide pin seals are fully seated in the groove of the brake caliper guide pins.
  5. Install the 2 guide pins and seals to the brake caliper bracket.
  6. Ensure the guide pin seal is fully seated in the groove of the brake caliper bracket.
    7. Fig 2: Disc Brake Pad Springs
    GM2811326Courtesy of GENERAL MOTORS COMPANY
  7. Install the brake pad springs (1).
    8. Fig 3: Inner Disc Brake Pad
    GM2811325Courtesy of GENERAL MOTORS COMPANY
  8. Install the inner brake pad (1).
  9. Install the outer brake pad (2).
  10. Install the brake caliper to the brake caliper bracket.
    11. Fig 4: Brake Caliper Guide Pin Bolts
    GM2811322Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  11. Using a backup wrench on the brake caliper guide pins, install the brake caliper guide pin bolts (1) and tighten to 36 N.m (27 lb ft).
  12. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .
