Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Dust Warning .

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
  2. Remove Tire and Wheel Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)

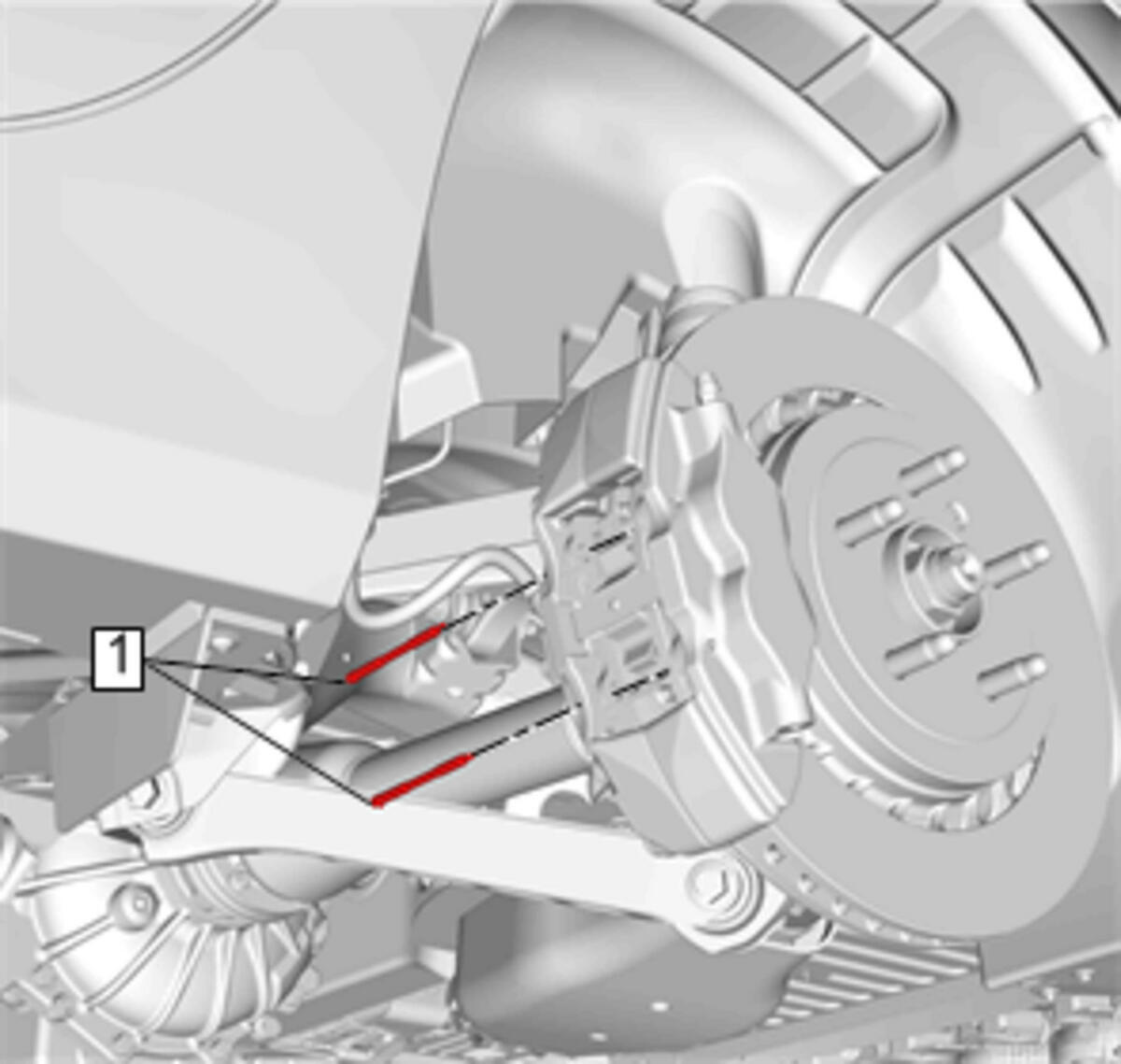

    3. Fig 1: Brake Pad Guide Pin
    GM4004071Courtesy of GENERAL MOTORS COMPANY
  3. Remove Brake Pad Guide Pin (1)

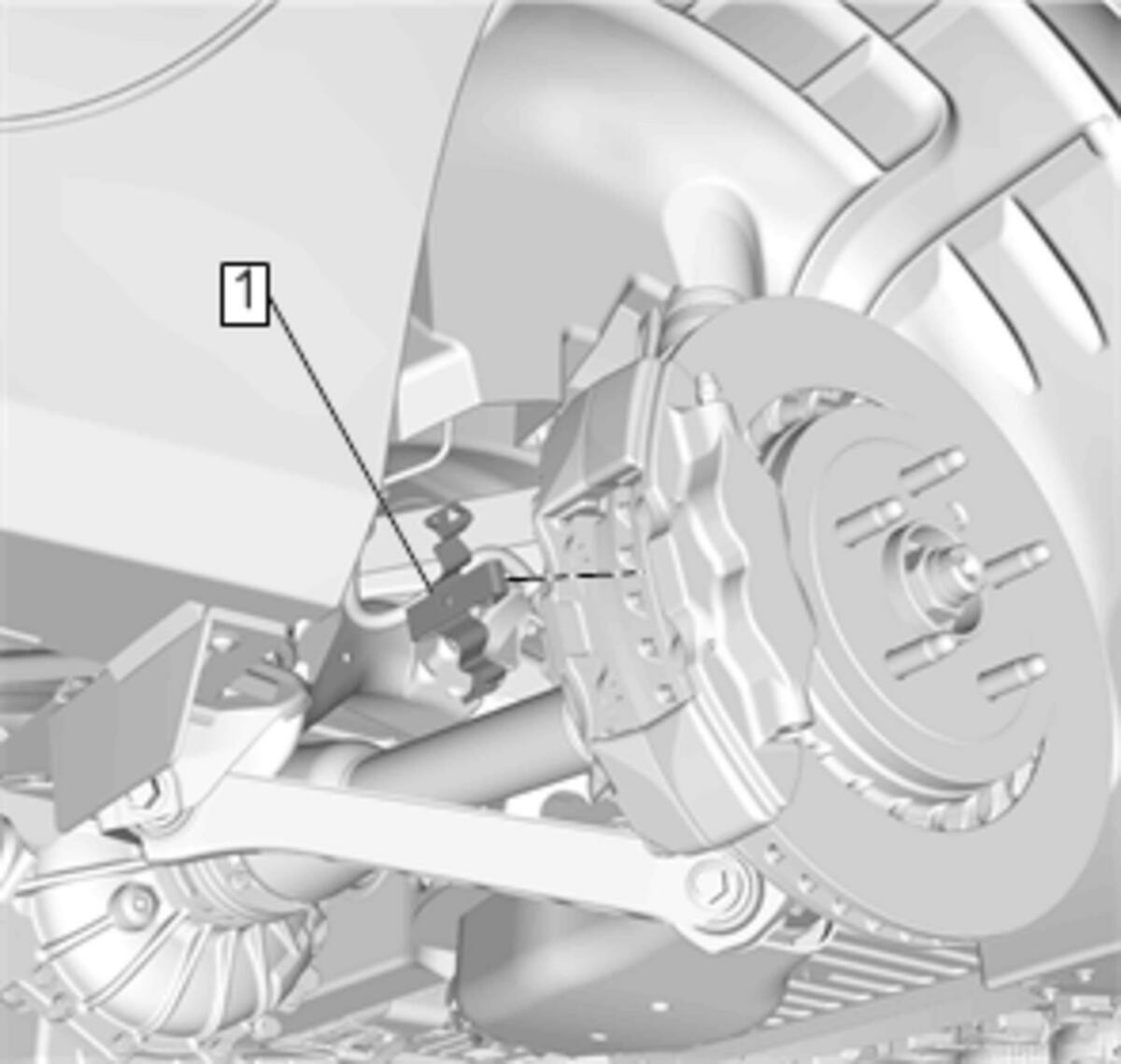

    4. Fig 2: Disc Brake Pad Spring
    GM4004074Courtesy of GENERAL MOTORS COMPANY
  4. Remove Disc Brake Pad Spring (1)
