Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the disc brake pad springs (1).

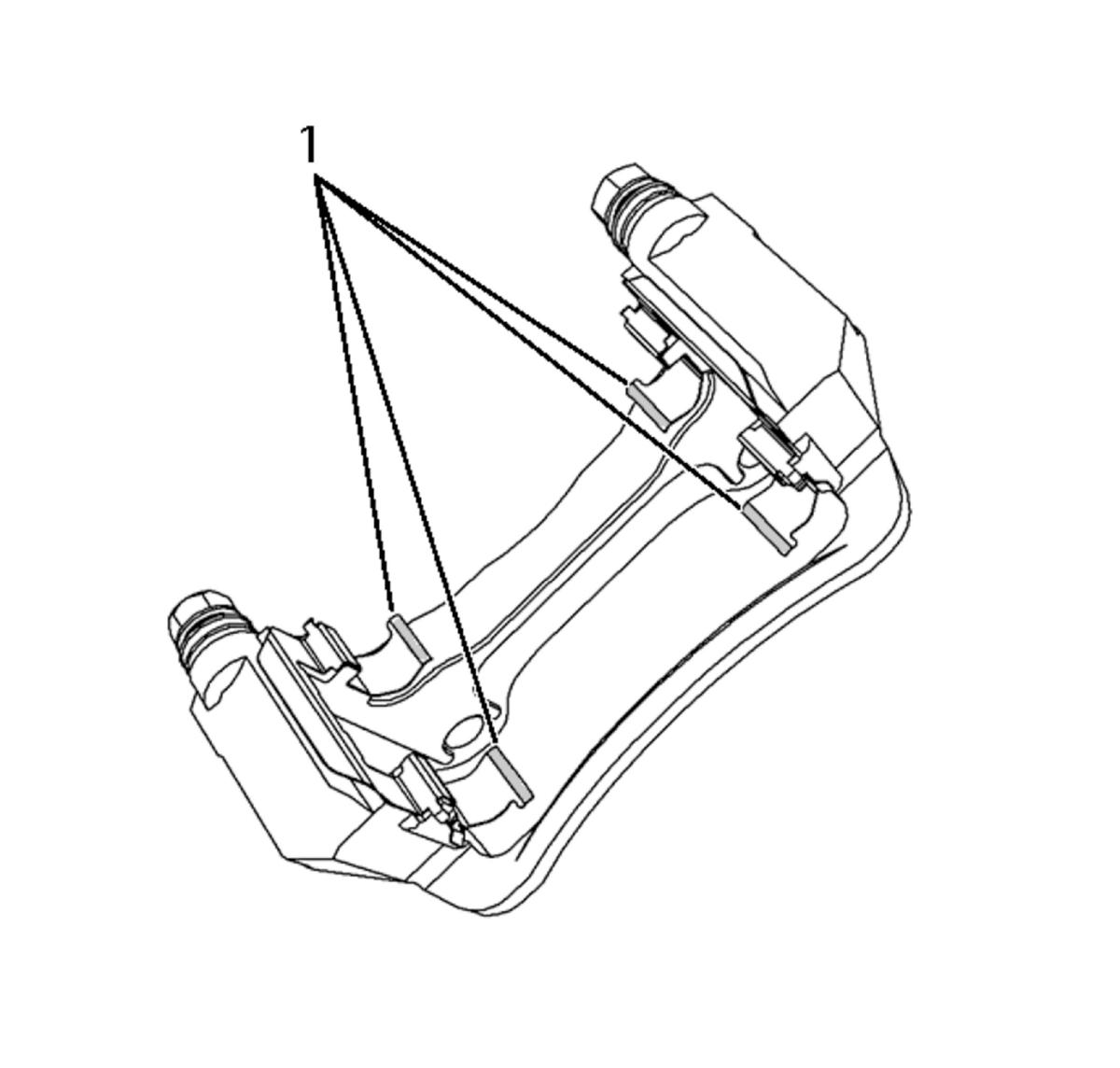

- Apply a thin coating of high temperature brake lubricant to the disc brake pad spring arms (1).
- Install the inner disc brake pad (1).
- Install the outer disc brake pad (2).
- Position the brake caliper to the brake caliper bracket.
- Using a backup wrench to hold the brake caliper guide pin stationary, install the lower brake caliper guide pin bolt (1) and tighten to 28 N.m (21 lb ft).
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then repeat steps 8-9 until a firm brake pedal is obtained. This will properly seat the brake caliper piston and brake pads.
- Fill the master cylinder reservoir. Refer to Master Cylinder Reservoir Filling .
- Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
NOTE:
If installing new brake pads, install new disc brake pad springs.
NOTE:
Only apply the lubricant to the disc brake pad spring arms where it contacts the metal disc brake pad plates.
CAUTION:
Refer to Fastener Caution .
