Removal Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Dust Warning .
NOTE:
Always replace disc brake pads in axle sets.
- Inspect the fluid level in the brake master cylinder reservoir.
- If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed before proceeding.
- If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
- Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
- Remove Tire and Wheel.Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)

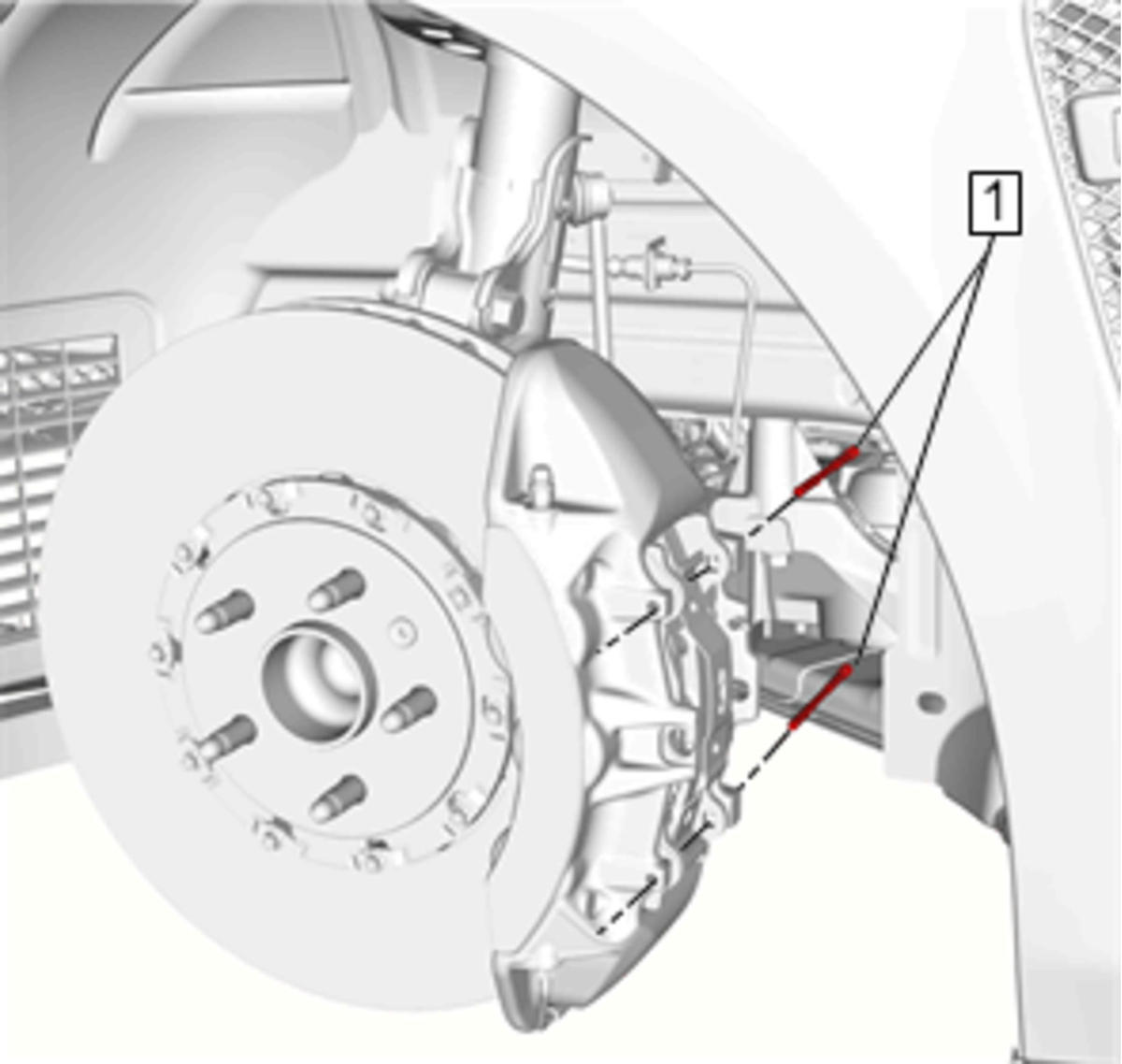

- Remove Brake Caliper Guide Pin Bolt (1)

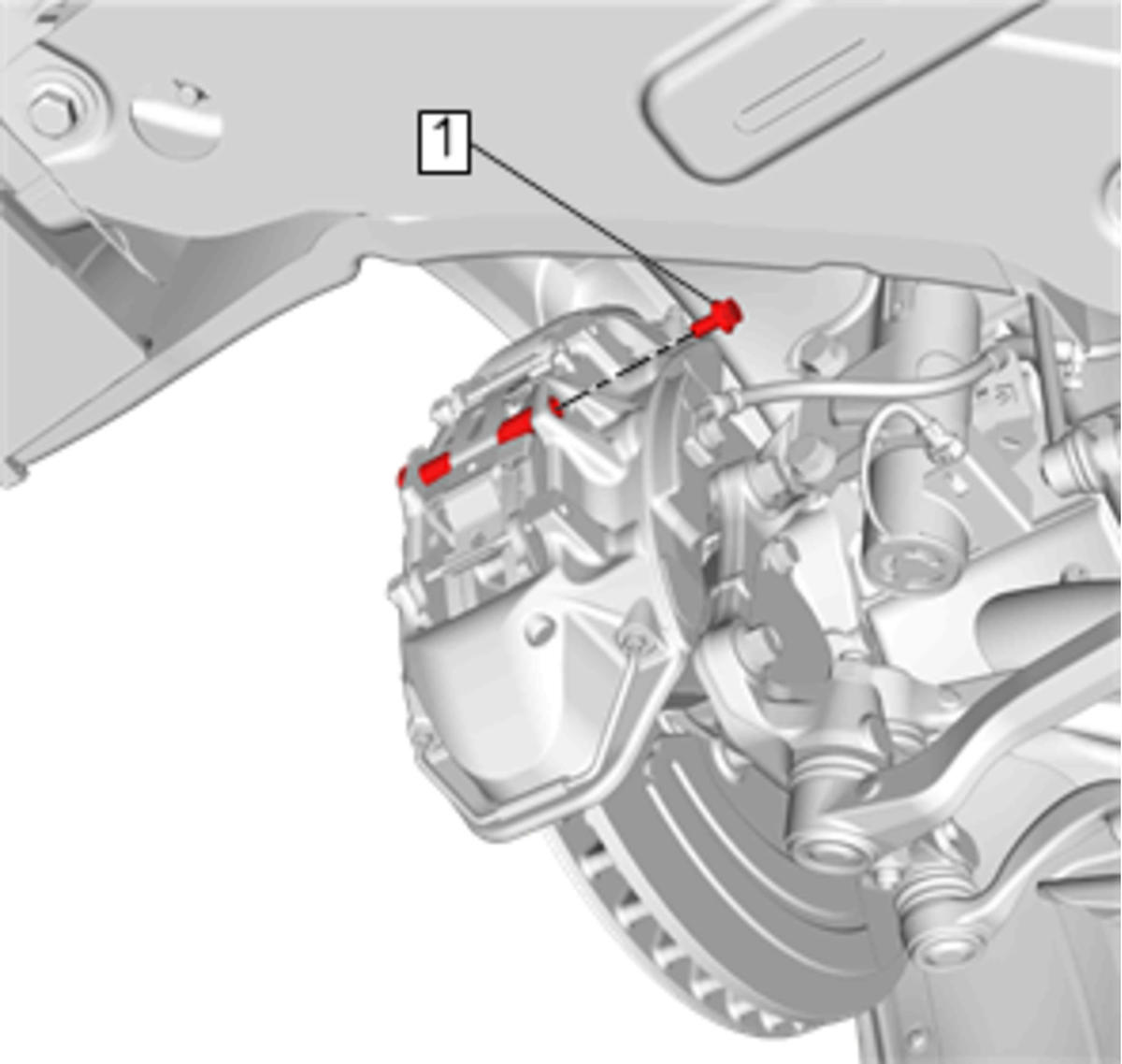

- Remove Brake Caliper Guide Pin (1)

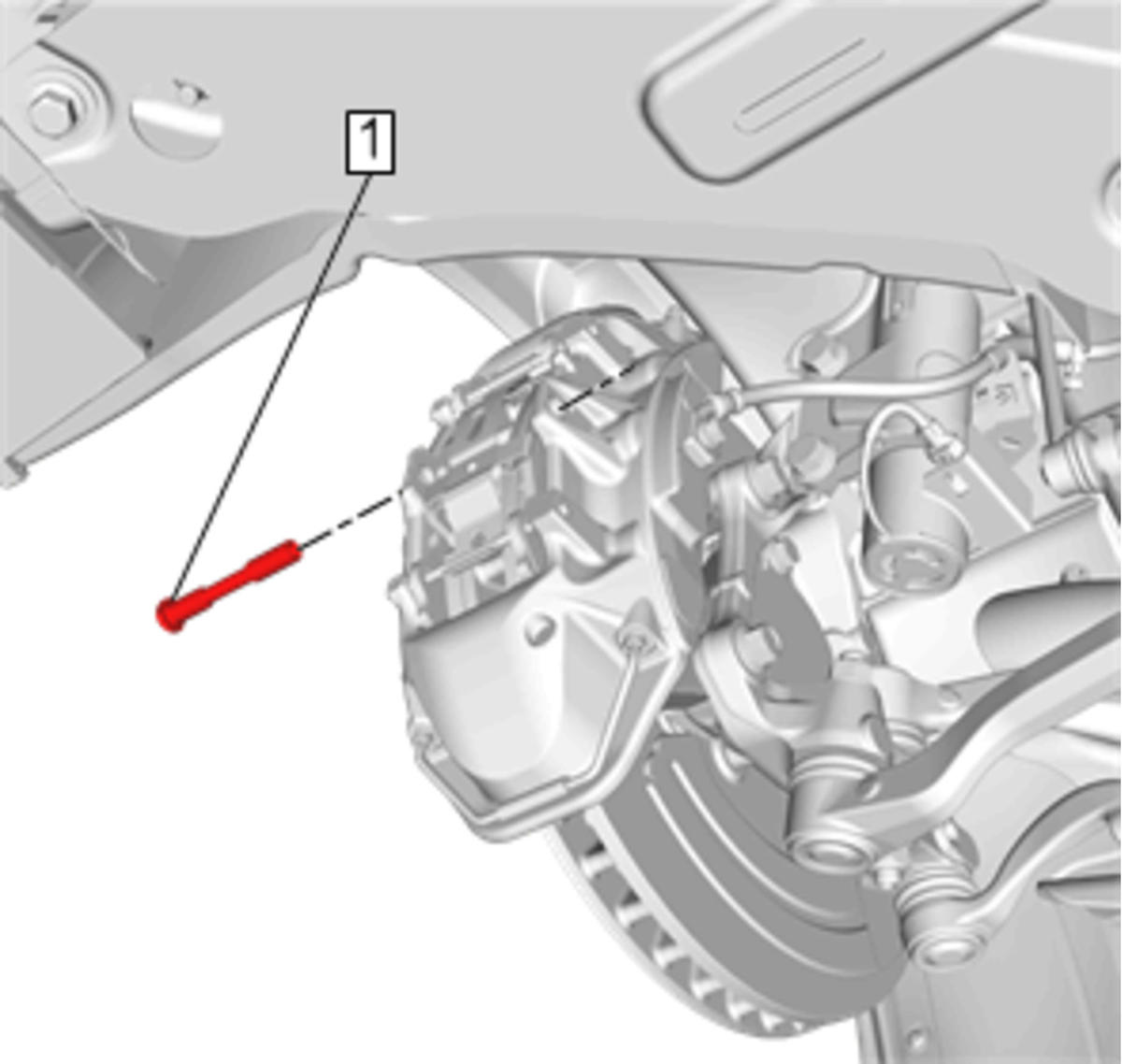

- Remove Brake Pad Guide Pin (1)

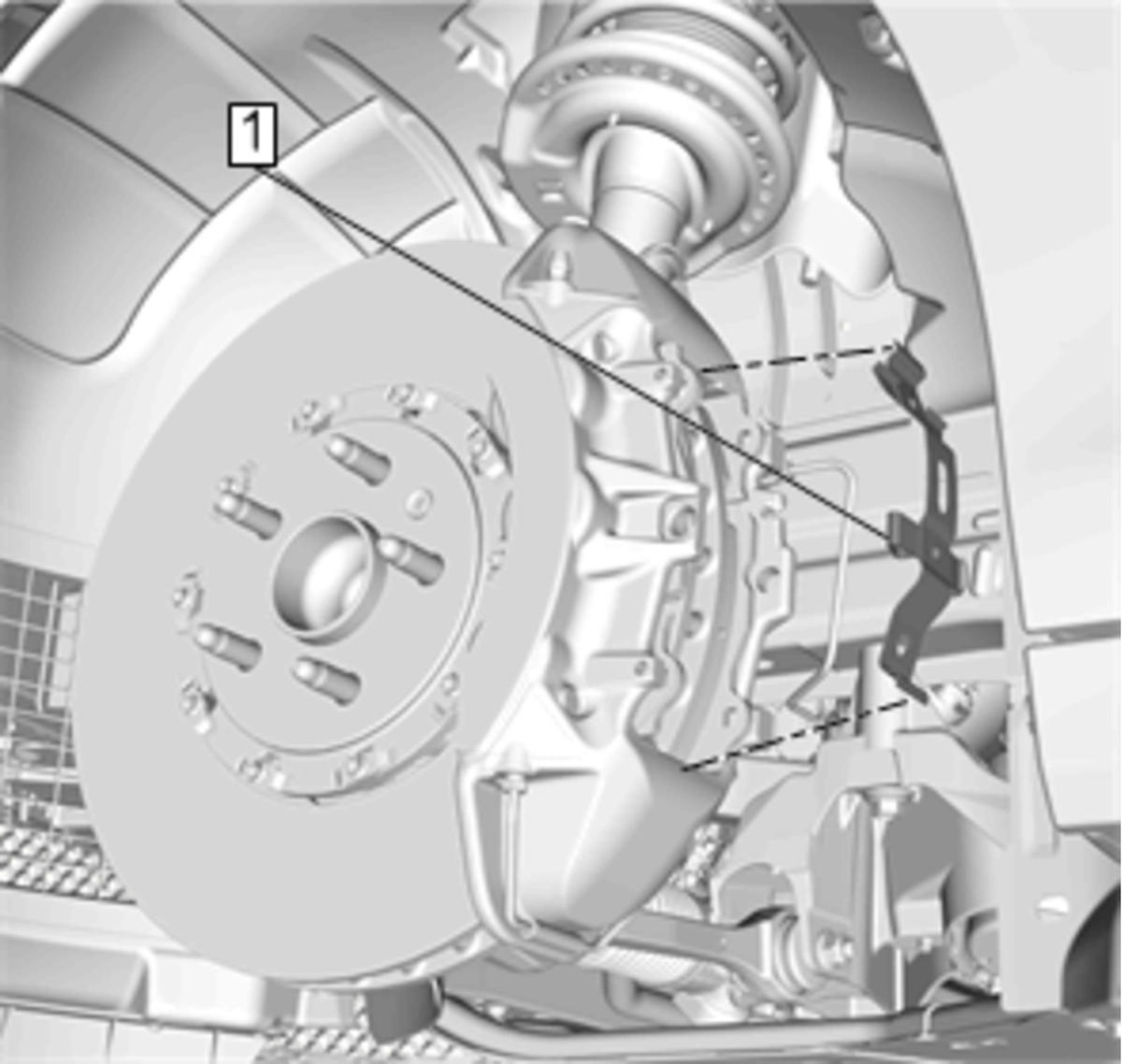

- Remove Disc Brake Pad Spring (1)

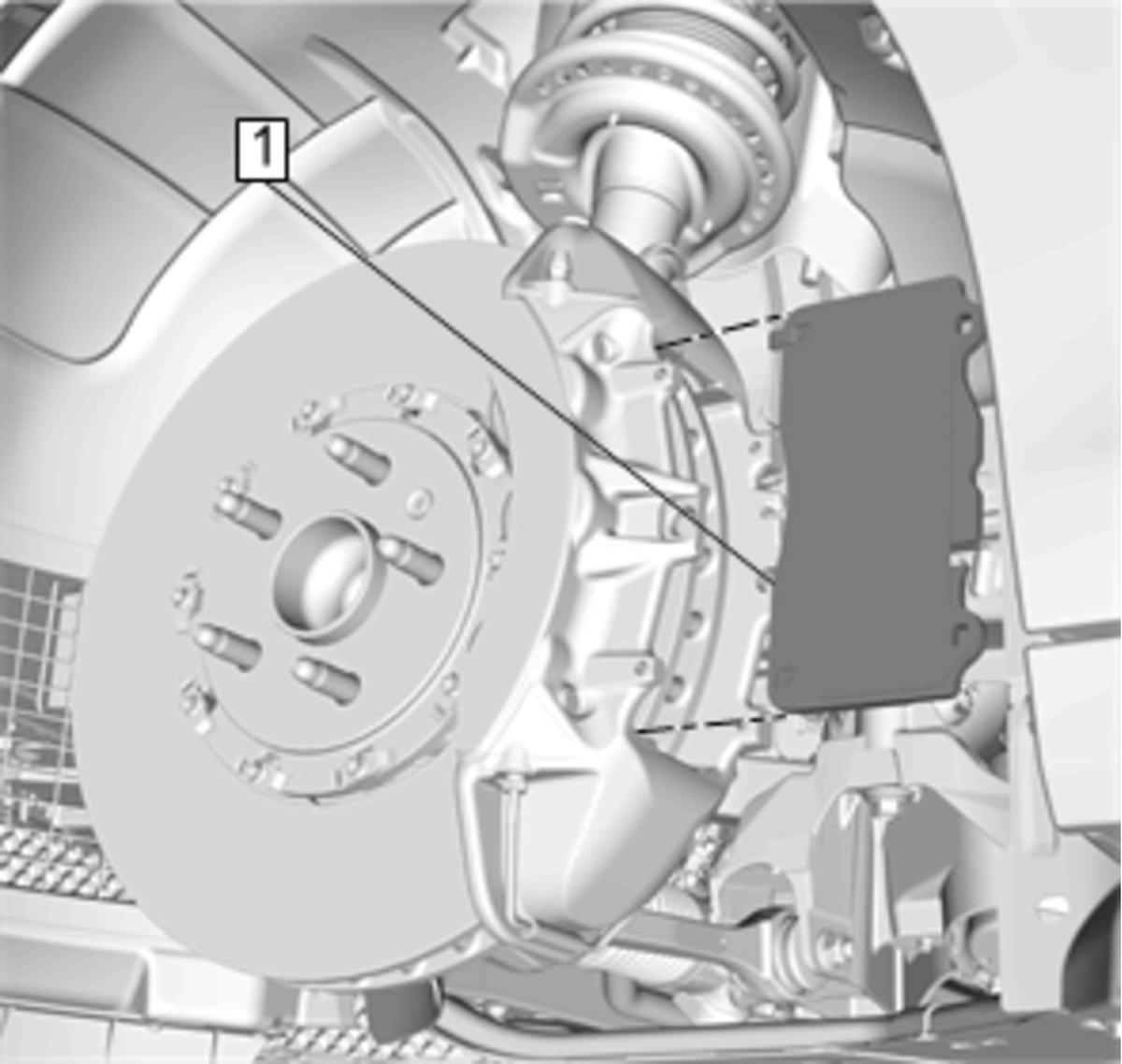

- Remove Inner Disc Brake Pad (1)

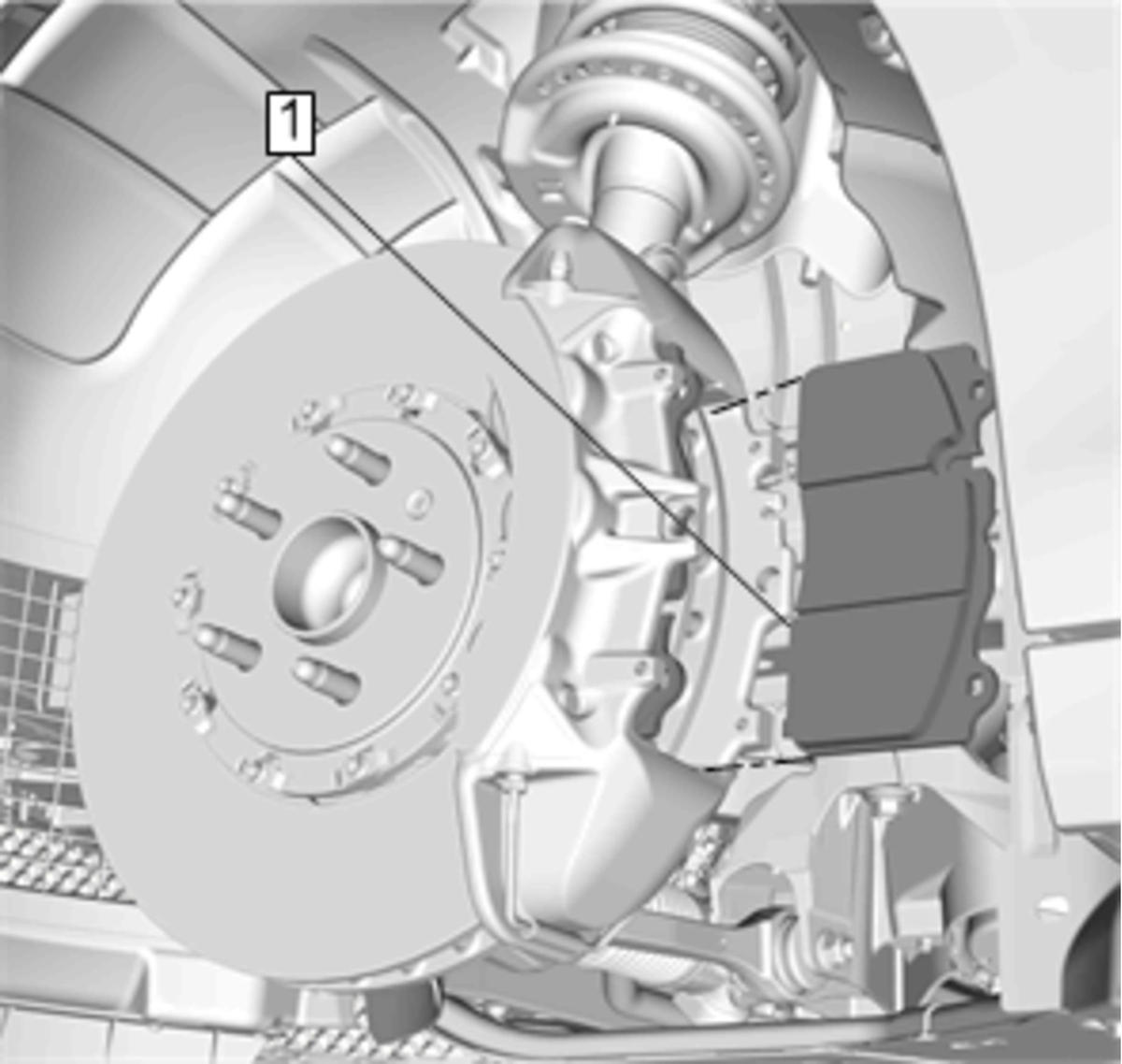

- Remove Outer Disc Brake Pad (1)
- Using a spreader tool, carefully compress the brake caliper pistons fully into the brake caliper bores.
